Quick Details
-
Output Speed:
-
According to motor and ratio
-
Warranty:
-
12 months
-
Weight (KG):
-
6.5 KG
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
FHTW
-
gear type:
-
helical gear
-
Color:
-
silver blue or gold black
-
Packing:
-
carton or wood box
-
Certification:
-
CE Certificate
-
Input Form:
-
flange input
-
Mounting Position:
-
any direction
-
Ratio:
-
3 ~ 100
-
Customization:
-
acceptable
-
Matching Motors:
-
servo motor and stepper motor
-
Output Form:
-
shaft output
Quick Details
-
Gearing Arrangement:
-
Planetary
-
Output Torque:
-
14-2000N.M
-
Input Speed:
-
2000-5000rpm
-
Output Speed:
-
According to motor and ratio
-
Warranty:
-
12 months
-
Weight (KG):
-
6.5 KG
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
FHTW
-
gear type:
-
helical gear
-
Color:
-
silver blue or gold black
-
Packing:
-
carton or wood box
-
Certification:
-
CE Certificate
-
Input Form:
-
flange input
-
Mounting Position:
-
any direction
-
Ratio:
-
3 ~ 100
-
Customization:
-
acceptable
-
Matching Motors:
-
servo motor and stepper motor
-
Output Form:
-
shaft output

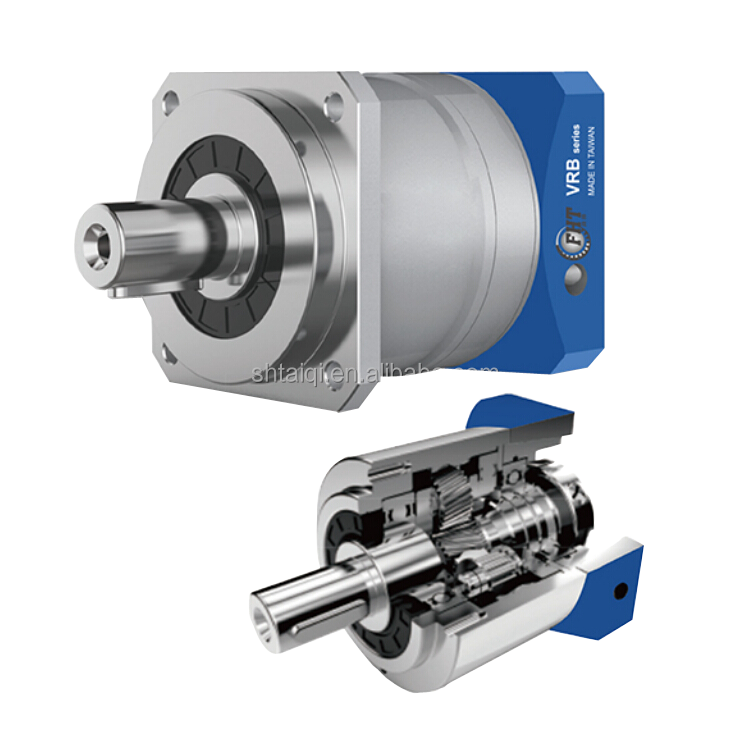

Taiwan manufacture planetary conveyor gearbox geared reducer for NEMA34 servo motor
Features:
1. Quiet operation
Helical gears contribute to reduce vibration and noise
2. High precision
Standard backlash is arc-min,ideal for precision control
3. High rigidity&torque
High rigidity&high torque were achieved by uncaged needle roller bearings
4. Adapter-bushing connection
Can be attached to any motor all over the world
5. No grease leakage
Perfect solution using high viscosity anti-separation grease.
6. Maintenance-free
No need to replace the grease for the life of the unit.Can be attached in any position.
Model option guidelines
Before choos ing a gearbox, please specify the gear ratio you need. After determine a ratio, multiplying your servo motor rated torque by the ratio, the value should be in principle less than our gearbox rated output torque which can be found int the data sheets. Take other overloads which drive the motor into consideration, to choose the max. Operating torque, this should not exceed 2 times of our gearbox rated torque.
After determine the above, you can choose a smallest volume gearbox to save cost.
You can send us the servo motor dimension drawing for model selection or advise the specific servo motor model number.
If you have special requirement for the precision, please clarify.
Model Intruction
Technical Data
| Model No. | Stage | Ratio | VRB042 | VRB060 | VRB090 | VRB115 | VRB142 | VRB180 | VRB220 |
| Rated output Torque(Nm) | 1 | 3 | 20 | 55 | 130 | 208 | 342 | 588 | 1140 |
| 4 | 19 | 50 | 140 | 290 | 542 | 1050 | 1700 | ||
| 5 | 22 | 60 | 160 | 330 | 650 | 1200 | 2000 | ||
| 6 | 20 | 55 | 150 | 310 | 600 | 1100 | 1900 | ||
| 7 | 19 | 50 | 140 | 300 | 550 | 1100 | 1800 | ||
| 8 | 17 | 45 | 120 | 260 | 500 | 1000 | 1600 | ||
| 9 | 14 | 40 | 100 | 230 | 450 | 900 | 1500 | ||
| 10 | 14 | 40 | 100 | 230 | 450 | 900 | 1500 | ||
| 2 | 15 | 20 | 55 | 130 | 208 | 342 | 588 | 1140 | |
| 20 | 19 | 50 | 140 | 290 | 542 | 1050 | 1700 | ||
| 25 | 22 | 60 | 160 | 330 | 650 | 1200 | 2000 | ||
| 30 | 20 | 55 | 150 | 310 | 600 | 1100 | 1900 | ||
| 35 | 19 | 50 | 140 | 300 | 550 | 1100 | 1800 | ||
| 40 | 17 | 45 | 120 | 260 | 500 | 1000 | 1600 | ||
| 45 | 14 | 40 | 100 | 230 | 450 | 900 | 1500 | ||
| 50 | 22 | 60 | 160 | 330 | 650 | 1200 | 2000 | ||
| 60 | 20 | 55 | 150 | 310 | 600 | 1100 | 1900 | ||
| 70 | 19 | 50 | 140 | 300 | 550 | 1100 | 1800 | ||
| 80 | 17 | 45 | 120 | 260 | 500 | 1000 | 1600 | ||
| 90 | 14 | 40 | 100 | 230 | 450 | 900 | 1500 | ||
| 100 | 14 | 40 | 100 | 230 | 450 | 900 | 1500 | ||
|
Micro Backlash P0 (arcmin) |
1 | 3-10 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
| 2 | 12-100 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | |
|
Precision Backlash P1(arcmin) |
1 | 3-10 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 | ≤4 |
| 2 | 12-100 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | |
| Weight(kg) | 1 | 3-10 | 0.5 | 1.3 | 3.3 | 7.8 | 15 | 28 | 52 |
| 2 | 15-100 | 0.8 | 1.48 | 3.9 | 9.6 | 18.9 | 33 | 66 |
Dimensions
Applications
Widely used in Printer, Belt Conveyer s , Gantry Robot, Auto packing sealing machine, Packing machine ( vertical pillow), Packing machine ( horizontal pillow), Dispenser Robot, Loader robot etc.
