Quick Details
-
Dimension(L*W*H):
-
8550x2496x 3800 mm
-
Power:
-
213kw
-
Mixing apacity:
-
8 Cubic Meters Concrete Mixer Truck
-
Motor power:
-
213kw
-
Weight/rated load:
-
13345/11300kg
-
Color:
-
negotiate
-
Keywords:
-
Mixer Truck Concrete Cement Mixer Truck
-
Type:
-
Concrete Truck Drum Mixer
-
Chassis brand:
-
Concrete Mixer Machine Chassis Optional
-
Driving type:
-
4 Wheel Driver
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Weight:
-
13345 kg
-
Dimension(L*W*H):
-
8550x2496x 3800 mm
-
Power:
-
213kw
-
Mixing apacity:
-
8 Cubic Meters Concrete Mixer Truck
-
Motor power:
-
213kw
-
Weight/rated load:
-
13345/11300kg
-
Color:
-
negotiate
-
Keywords:
-
Mixer Truck Concrete Cement Mixer Truck
-
Type:
-
Concrete Truck Drum Mixer
-
Chassis brand:
-
Concrete Mixer Machine Chassis Optional
-
Driving type:
-
4 Wheel Driver

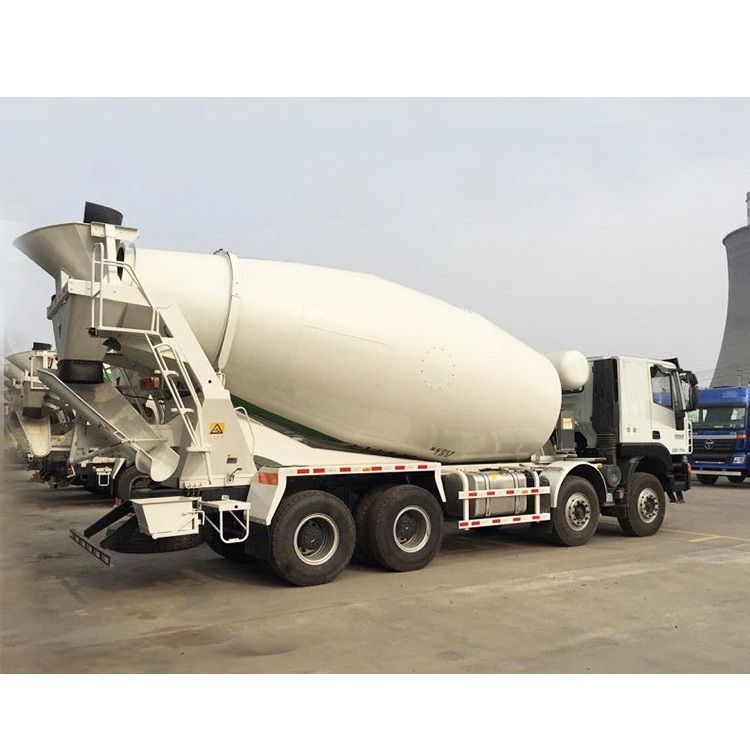

8 Cubic Meters Concrete Mixer Truck
Descriptions of 8 Cubic Meters Concrete Mixer Truck :
8m 3 concrete mixer trucks are developed and manufactured on the basis of absorbing the relevant advanced technology home and abroad. The chassis adopted the HOWO brands, which meet the emission stand of European II.
Primarily applicable to the concrete transportation and mixing, they can prolong transporting time and guarantee mixing and conveying quality, avoiding layer-by-layer and solidification during transporting in order to guarantee the building progress from German Rexroth and reducer imported from American SAUER Company or German ZF Company.
The main components such as the mixing drum and double-screw blades adopt wearing steel-plate 16MnCu materials with the aid of the computer, frame and front-back bed adopt 16Mn steel plate.
The movable discharging slot may by fixed at different location such as upper, bottom , left and right to realized discharging operation at various direction .
Technical Specifications:
|
Mixing Drum
|
Mixing Capacity
|
8 m³
|
9 m³
|
10 m³
|
12 m³
|
14 m³
|
|
Tank Volume
|
13.8 m³
|
14.3 m³
|
15.96 m³
|
17.93 m³
|
24.2 m³
|
|
|
Angle
|
15°
|
12°
|
12°
|
12°
|
11°
|
|
|
Charging Speed
|
≥ 3 m³ /min
|
≥ 3 m³ /min
|
≥ 3 m³ /min
|
≥ 3 m³ /min
|
≥ 3 m³ /min
|
|
|
Discharging Speed
|
≥ 2 m³ /min
|
≥ 2 m³ /min
|
≥ 2 m³ /min
|
≥ 2 m³ /min
|
≥ 2 m³ /min
|
|
|
Rolling Speed
|
0~14r/min
|
0~14r/min
|
0~14r/min
|
0~14r/min
|
0~14r/min
|
|
|
Residual Ratio of Discharging
|
Less 0.5%
|
Less 0.5%
|
Less 0.5%
|
Less 0.5%
|
Less 0.5%
|
|
|
Hydraulic System
|
Pump
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
|
Motor
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
|
|
Reducer
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
USA Eton or Italy ARK
|
|
|
Water System |
Supply
|
Air pressure pneumatic
|
Air pressure pneumatic
|
Air pressure pneumatic
|
Air pressure pneumatic
|
Air pressure pneumatic
|
|
Water Tank |
450L ( 400 L ) |
450L |
450L |
450L |
450L |
|
|
Truck Chassis
|
Motor Power
|
213 KW
|
247 KW
|
247 KW
|
247 KW
|
273 KW
|
|
Driving
|
6x4
|
6x4
|
6x4
|
6x4
|
8x4
|
|
|
Weight/Rated Load
|
13345/ 11300 KG
|
13570/ 11420 KG
|
13670/ 11520 KG
|
14530/ 10340 KG
|
17210/ 13660 KG
|
|
|
Wheel Base
|
3600+ 1350 mm
|
3625+ 1350 mm
|
3825+ 1350 mm
|
4025+ 1350 mm
|
1800+3200+ 1350 mm
|
|
|
Dimension
|
8550x2496x 3800 mm
|
8900x2496x 3950 mm
|
9230x2496x 3950 mm
|
9550x2496x 3950 mm
|
10550x2496x 3950 mm
|
