Quick Details
-
Weight:
-
580 KG
-
Product name:
-

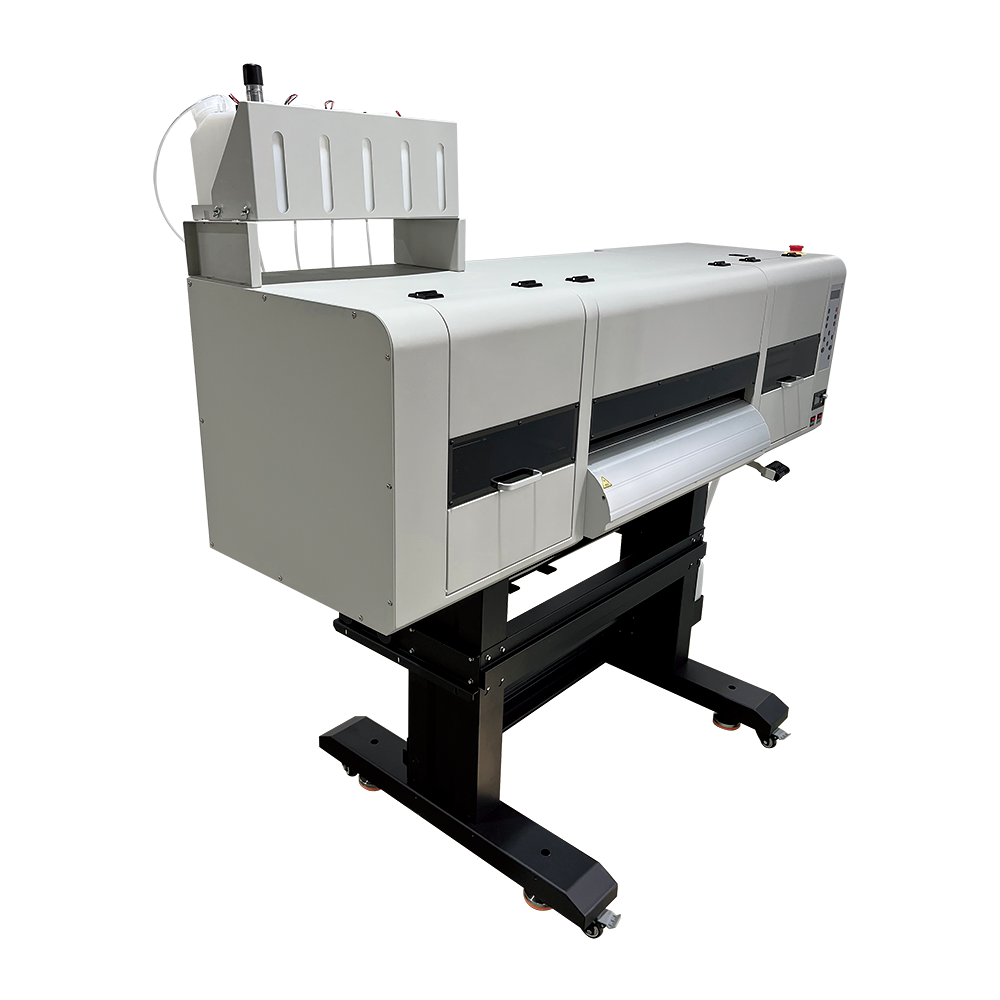

Dtf Pet Film Printer
-
MODEL:
-
HS702
-
Print head:
-
2/4 pcs I3200 Print Heads
-
style:
-
dtf printer
-
Printing material:
-
pet transfer film or dtf paper
-
Print Speed:
-
6-32Sqm/h
-
Size of printer:
-
3500*1700*1600mm
-
size of shaker powder:
-
2400*1120*1136mm
-
RIP software:
-
Main Top/PF/PP
-
Ink Color:
-
CMYKW/CMYKW/LC/LM
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUNNFA
-
Dimensions(L*W*H):
-
3500*1700*1600mm
-
Weight:
-
580 KG
-
Product name:
-
Dtf Pet Film Printer
-
MODEL:
-
HS702
-
Print head:
-
2/4 pcs I3200 Print Heads
-
style:
-
dtf printer
-
Printing material:
-
pet transfer film or dtf paper
-
Print Speed:
-
6-32Sqm/h
-
Size of printer:
-
3500*1700*1600mm
-
size of shaker powder:
-
2400*1120*1136mm
-
RIP software:
-
Main Top/PF/PP
-
Ink Color:
-
CMYKW/CMYKW/LC/LM
Details Images
Specification
|
Mode
|
|
HS702i3200
|
HS704i3200
|
||
|
Print Head
|
|
2 i3200 nozzle
|
4 i3200 nozzle
|
||
|
Max Print Width
|
|
600mm
|
|
||
|
Resolution/Speed
|
|
13200 2
|
13200 4
|
||
|
Produce Mode
|
|
15m²/h
|
32m²/h
|
||
|
Resolution/Mode
|
|
9m²/h
|
24m²/h
|
||
|
High Resolution Mode
|
|
6m²/h
|
18m²/h
|
||
|
Ink
|
Sort
|
DTG PIGMENTINK
|
|
||
|
|
Ink Supply Mode
|
Empty ink Supply System
|
|
||
|
Media
|
Width
|
600mm
|
|
||
|
|
Thickness
|
2-8mm
|
|
||
|
|
Max Weight
|
75kg
|
|
||
|
|
Sort
|
Hot stamping materials, clothing hot stamping offset printing materials, lettering film
|
|
||
|
Media Heater
|
|
The front and rear two-stage heating can be separately and independently heated
|
|
||
|
Take-up System
|
|
Simple Take-up System
|
|
||
|
Guide Rail
|
|
Famous Brand THK from japan
|
|
||
|
Interface
|
|
1000Mbit/s
|
|
||
|
RIP Software
|
|
Maintop 6.1
|
|
||
|
Voltage
|
|
AC110V±10%、AC220V±10%、50/60±1Hz
|
|
||
|
Operation Environment
|
|
Temperature 15C-y0ChumTy35%RH-65%RH
|
|
||
|
Power
|
|
7800W
|
|
||
|
Dimensions of Printer
(L*W*H) |
|
3500*1700*1600mm
|
|
||
|
Dimensions of Printer
(L*W*H) |
|
printer：1700*580*1310mm
Powder shaker：2400*1120*1136mm |
|
||
|
Net Weight
|
|
printer：200kg
Powder shaker：270kg |
|
||
|
Gross Weight
|
|
printer：260kg
Powder shaker：330kg |
|
||
