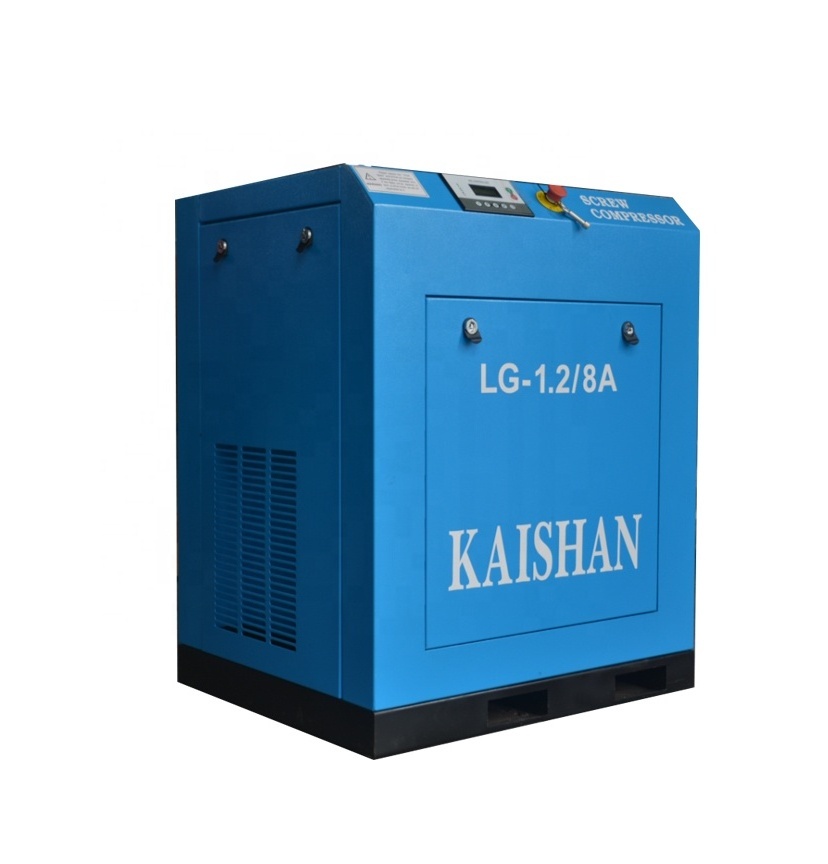

New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale
New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale
New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale
New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale
New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale
New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale
New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale
New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale

New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale

FOB Reference Price: Get Latest Price
≥1 Sets
US $1555
≥2 Sets
US $1520
≥3 Sets
US $1489
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380v/220v
Dimension(L*W*H):
820*700*1010MM
Weight:
260KG
Air capacity:
1.2m3/min
Marketing Type:
Hot Product 2023
Key words:
air compressor skid
Cooling method:
Air Cooling
Application:
General Industry
Pressure:
8bar/116psi
Motor power:
7.5kw/10hp
Capacity:
1.2m3/min/42cfm
Air end:
SKK
Bearing:
Sweden SKF
Usage:
manufacturing
After Warranty Service:
Online support

Quick Details

Place of Origin:
Zhejiang, China
Brand Name:
Kaishan
Model Number:
LG-1.2/8A
Voltage:
380v/220v
Dimension(L*W*H):
820*700*1010MM
Weight:
260KG
Air capacity:
1.2m3/min
Marketing Type:
Hot Product 2023
Key words:
air compressor skid
Cooling method:
Air Cooling
Application:
General Industry
Pressure:
8bar/116psi
Motor power:
7.5kw/10hp
Capacity:
1.2m3/min/42cfm
Air end:
SKK
Bearing:
Sweden SKF
Usage:
manufacturing
After Warranty Service:
Online support

New model high working pressure stationary silent ac motor direct drive screw air compressor skid 10hp for sale

I.The Design Features of the LG Series

1.Our single-stage rotary screw airend is engineered for its durability. Larger rotors allows for bigger bearings, 30%-50% slower rotor speeds results in less power consumption, lower sound levels and reduced maintenance cost .

2.Our one piece bearing housing ensures both rotors are ridgely held by the bearings in proper alignment during transient periods such as machine startups/shutdowns or load changes.

SKF bearings and SEALTECH bearing seals are utilized in all airends.

3.All of our compressors have the latest inlet valve, airend air discharge port and oil inlet port design.

4.Lower sound (dBA) emission level than most of our competitors results in less sound

pollution.

5.The axial and rotational loadings are supported by different bearings for better stiffness and less transition noise.

6.Simple package design requires only minimum maintenance for optimum performance.

Continuous cooling and circulation of lubricating oil, ensures long airend operating life.


Technical parameters of LG series screw air compressor

Model Working pressure
(bar) 		Capacity
(m³/min) 		Motor power
(kw) 		Dimension
(mm) 		Weight
(kg)
Airend  model
l w h
LG-1.2/8A 8 1.2 7.5 820 700 1010 260 SKK44
LG-1.0/10A 10 1 7.5 820 700 1010 260 SKK44
LG-0.8/13A 13 0.8 7.5 820 700 1010 260 SKK44
LG-0.8/13 13 0.8 7.5 900 700 1040 350 SKK55LM-A
LG-1.7/8 8 1.7 11 1060 800 1230 450 SKK55LM-A
LG-1.5/10 10 1.5 11 1060 800 1230 450 SKK55LM-A
LG-1.2/13 13 1.2 11 1060 800 1230 450 SKK55LM-A
LG-2.4/8A 8 2.4 15 1060 800 1230 500 SKK55LM-A
LG-2.2/10A 10 2.2 15 1060 800 1230 500 SKK55LM-A
LG-1.7/13A 13 1.7 15 1060 800 1230 500 SKK55LM-A
LG-2.4/8B 8 2.4 15 1060 800 1230 550 SKK82LM-A
LG-2.2/10B 10 2.2 15 1060 800 1230 550 SKK82LM-A
LG-1.7/13B 13 1.7 15 1060 800 1230 550 SKK82LM
LG-3/8G 8 3 18.5 1420 850 1110 600 SKK93M
LG-3/8 8 3 18.5 1080 880 1415 650 SKK82LM
LG-2.7/10 10 2.7 18.5 1080 880 1415 650 SKK82LM
LG-2.3/13 13 2.3 18.5 1080 880 1415 650 SKK82LM
LG-3.6/8G 8 3.6 22 1420 850 1110 650 SKK93LM
LG-3.6/8 8 3.6 22 1080 880 1415 700 SKK82LM
LG-3.2/10 10 3.2 22 1080 880 1415 700 SKK82LM
LG-2.7/13 13 2.7 22 1080 880 1415 700 SKK82LM
LG-5/8 8 5 30 1300 1100 1650 900 SKK82LM
LG-4.5/10 10 4.5 30 1300 1100 1650 900 SKK82LM
LG-3.7/13 13 3.7 30 1300 1100 1650 900 SKK82LM
LG-6.2/8G 8 6.2 37 1630 910 1220 900 SKK108LM
LGB-6/8 8 6 37 1300 1100 1650 1000 SKK93M
LGB-5.6/10 10 5.6 37 1300 1100 1650 1000 SKK93M
LG-5.6/10 10 5.6 37 1300 1100 1650 1000 SKK108LM
LGB-4.8/13 13 4.8 37 1300 1100 1650 1000 SKK93M
LG-4.8/13 13 4.8 37 1300 1100 1650 1000 SKK108LM
LG-7.0/8G 8 7 45 1778 1000 1300 1000 SKK13LF
LG-7.5/8 8 7.5 45 1300 1100 1650 1100 SKK108LM
LG-6.9/10 10 6.9 45 1300 1100 1650 1100 SKK108LM
LG-5.6/13 13 5.6 45 1300 1100 1650 1100 SKK108LM
LG-10/8G 8 10 55 1950 1160 1550 1400 SKK126LM
LG-8.7/10 10 8.7 55 1620 1230 1670 1400 SKK126LM
LG-7.5/13 13 7.5 55 1620 1230 1670 1400 SKK126LM
LGB-9.3/8 8 9.3 55 1500 1250 1566 1250 SKK108LM
LGB-8.5/10 10 8.5 55 1500 1250 1566 1250 SKK108LM
LGB-7/13 13 7 55 1500 1250 1566 1250 SKK108LM
LG-13/8G 8 13 75 2440 1160 1620 1900 SKK148MM
LG-11.6/10G 10 11.6 75 2440 1160 1620 1900 SKK148MH-C
LG-9.3/13G 13 9.3 75 2440 1160 1620 1900 SKK126LM
LGB-13/8 8 13 75 1580 1320 1646 1600 SKK126LM
LGB-11/10 10 11 75 1580 1320 1646 1600 SKK126LM
LGB-9.3/13 13 9.3 75 1580 1320 1646 1600 SKK108LM
LG-16/8G 8 16 90 2560 1300 1620 2100 SKK148LM
LG-13.5/10G 10 13.5 90 2560 1300 1620 2100 SKK148LM
LG-11.6/13G 13 11.6 90 2560 1300 1620 2100 SKK148MH-C
LG-20/8G 8 20 110 2760 1340 1710 2800 SKK170MM
LG-16/10G 10 16 110 2760 1340 1710 2800 SKK148LM
LG-13.5/13G 13 13.5 110 2760 1340 1710 2800 SKK148LM
LG-22/8G 8 22 132 2760 1340 1710 2900 SKK170LM
LG-20/10G 10 20 132 2760 1340 1710 2900 SKK170LM
LG-16/13G 13 16 132 2760 1340 1710 2900 SKK148LM
LG-27/8G 8 27 160 2860 1510 1810 3600 SKY192SM
LG-23/10G 10 23 160 2860 1510 1810 3600 SKY170LM
LG-20/13G 13 20 160 2860 1510 1810 3600 SKY170LM
LG-30/8G 8 30 185 3400 2100 2100 4500 SKY192MM
LG-21/13G 13 21 185 2860 1510 1810 3700 SKY170LM
LG-30/8GB 8 30 200 3400 2100 2100 4500 SKY192MM
LG-22/13GB 13 22 200 2860 1510 1810 3700 SKY170LM
LG-35/8G 8 35 200 3400 2100 2100 4500 SKY192LH-C
LG-30/10G 10 30 200 3400 2100 2100 4500 SKY192MH
LG-27/13G 13 27 200 3400 2100 2100 4500 SKY192MH
LG-40/8G 8 40 220 3700 2200 2200 5850 SKY192LM
LG-40/8GB 8 40 250 3700 2200 2200 5950 SKY192LM
LG-35/10G 10 35 250 3700 2200 2200 5950 SKY192LH-C
LG-46/8G 8 46 250 3700 2200 2200 6000 SKY258LM
LG-40/10G 10 40 250 3700 2200 2200 6000 SKY258LH-C
LG-65/8G 8 65 355 4200 2200 2210 7400 SKY258LMG1
LG-66/8G 8 66 355 4200 2200 2210 7400 SKY297MM

Click here for more models

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
