Quick Details
-
Light Source:
-
-
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-Alite
-
Specifications:
-
1702- led tube
-
Emitting Color:
-
-
-
Type:
-
For LED Tube,LED Bulb,LED Downlight Emergency Lighting Kit
-
Name:
-

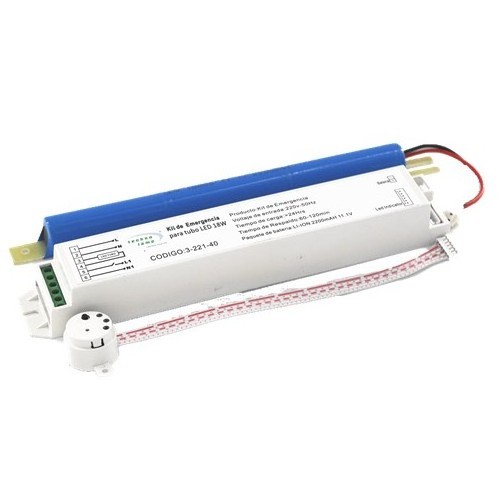

CE CB High quality Rechargeable Battery Pack LED Tube Emergency Kit
-
Pwer:
-
8-18w
-
Time:
-
60-120mins
-
Certification:
-
CE ROHS CB
-
Luminous Efficacy(lm/w):
-
0
Quick Details
-
Battery Type:
-
lithium battery
-
Material:
-
Plastic
-
Usage:
-
Emergency Kit for led tube
-
Light Source:
-
-
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
M-Alite
-
Specifications:
-
1702- led tube
-
Emitting Color:
-
-
-
Type:
-
For LED Tube,LED Bulb,LED Downlight Emergency Lighting Kit
-
Name:
-
CE CB High quality Rechargeable Battery Pack LED Tube Emergency Kit
-
Pwer:
-
8-18w
-
Time:
-
60-120mins
-
Certification:
-
CE ROHS CB
-
Luminous Efficacy(lm/w):
-
0
产品名称
Specification
※
Products Details
|
Setting Information
|
|
|
|
Model
|
AE04
|
|
|
Rated voltage
|
220-240V
|
|
|
Power
|
8-18W LED TUBE
|
|
|
Battery
|
11.1V 2200MA Li-ion/11.1V 4000MA Li-ion
|
|
|
Emergency Time
|
90mins/120mins
|
|
|
Raw Materials
|
Plastic
|
|
|
Battery Type
|
Li-ion
|
|
|
Size
|
233*35*30mm
|
|
Product Description
※
Dimensions
LED emergency kit: 233*35*30mm
Battery: 240*18*18mm/
240*35*18mm
※
Product Description
◆ This emergency kit works as an isolated circuit, voltage: AC220-240V, the output is constant current
◆ The self-regulated internal charger keeps the battery fully charged and protects it from overcharging.
◆ Li-on battery, Non-Mantained.
◆ This emergency kit works as an isolated circuit, voltage: AC220-240V, the output is constant current
◆ The self-regulated internal charger keeps the battery fully charged and protects it from overcharging.
◆ Li-on battery, Non-Mantained.
※
Technical Details
· High capacity Li-ion battery: recycle time of charging and discharging can reach 500 times.
· Long time illumination: emergency time for 8-18W LED lights is more than 120mins.
· Wide voltage input: AC 85V to 265V, applicable to worldwide voltage.
· Aluminum cover: temperature rising is less than 25℃.
· Doulble IC protection: protect battery form over charging and over discharging better.
· High capacity Li-ion battery: recycle time of charging and discharging can reach 500 times.
· Long time illumination: emergency time for 8-18W LED lights is more than 120mins.
· Wide voltage input: AC 85V to 265V, applicable to worldwide voltage.
· Aluminum cover: temperature rising is less than 25℃.
· Doulble IC protection: protect battery form over charging and over discharging better.
※
Connection diagram
※
Description of indicator lights and test button
|
Indicator Light
|
Green light
|
In the presence of mains electricity supply, constant green light on.
|
|
|
Red light
|
The red light is becoming brighter during charging, and keeps constant red light on afterBattery fully charged.
|
|
|
Yellow light
|
Battery disconnected, yellow light accompanied by alarm sound signal.
|
|
Test Button
|
≤1S
|
To test the equipment load: (Press and release the button) to change the mode ofoperation, (AC and emergency battery).
|
Installation Process
Product Assembly
Packing Details
Applications
KIT DE EMERGENCIA
For LED Tube Emergency Driver
◥ Application: widely used in banks,school , shopping malls, supermarkets, hotels, entertainment venues, stations, public buildings and places
for emergency.
◥ The battery must be charged and discharged at least once every 3 months.
◥ Use only the original battery connector. Do not attempt to solder directly on the battery.
◥ The battery must be used only in the specified temperature range.
◥ Do not subject the battery or equipment to shocks.
◥ Do not place the battery in contact with fire or attempt to disassemble it. The battery content is highly alkaline and may damage
skin or clothing.
◥ When the emergency function test is finished, the battery should be disconnected firstly before removing the kit!
◥ Application: widely used in banks,school , shopping malls, supermarkets, hotels, entertainment venues, stations, public buildings and places
for emergency.
Important Notes
◥ Exceeding the storage and usage temperature range will shorten the life of the battery.
◥ The battery must be charged and discharged at least once every 3 months.
◥ Use only the original battery connector. Do not attempt to solder directly on the battery.
◥ The battery must be used only in the specified temperature range.
◥ Do not subject the battery or equipment to shocks.
◥ Do not place the battery in contact with fire or attempt to disassemble it. The battery content is highly alkaline and may damage
skin or clothing.
◥ When the emergency function test is finished, the battery should be disconnected firstly before removing the kit!
