Quick Details
-
Brand Name:
-
MEH
-
Model Number:
-
LW30-63/3
-
Max. Current:
-
63A
-
Product Name:
-
Isolator Switch
-
Type:
-
Main Switch
-
Application:
-
Control Switch
-
Rated Current:
-
63A
-
Function:
-
Circuit Control
-
Material:
-
ABS+Brass+silver contact
-
Waterproof:
-
Included
-
Transform angle:
-
90°
-
Number Of Poles:
-
3
-
Certification:
-
CE,TUV, CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
440V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MEH
-
Model Number:
-
LW30-63/3
-
Max. Current:
-
63A
-
Product Name:
-
Isolator Switch
-
Type:
-
Main Switch
-
Application:
-
Control Switch
-
Rated Current:
-
63A
-
Function:
-
Circuit Control
-
Material:
-
ABS+Brass+silver contact
-
Waterproof:
-
Included
-
Transform angle:
-
90°
-
Number Of Poles:
-
3
-
Certification:
-
CE,TUV, CE
LW30 series Rotary Isolator Switch
Product Description
LW30 series 3 Phase Universal Isolator switch Main Switch with “ON-OFF”
Product Description:
- LW30 series Rotary Isolator switch applied to circuits of AC 50Hz/60Hz with working voltage up to 440V and rated working current up to 100A.
- LW30 Series Rotary Isolator switch is suitable to control: air-conditioner, water pump and ventilating equipment, and AC motors with small power..
- LW30 series Rotary Isolator switch have six current ratings: 20A,25A,32A,40A,63A,80A,100A
- LW30 series Rotary Isolator switch has the finger protection terminals, which offers an extra advantage.
- LW30 series Rotary Isolator switch has Larger insulation distance, quick disconnector response. And is a good choice For DC circuits.
General Features:
- Wide range of function for switching, it has 20A,25A,32A,40A,63A,80A,100A
- Capability for switching of resistive, or inductive, or mixed loads.
- The most economical way for switching electrical loads.
- Made of the best materials with high mechanical, electrical and thermal resistance.
- Double-break bimetallic contacts made of silver alloy and Copper

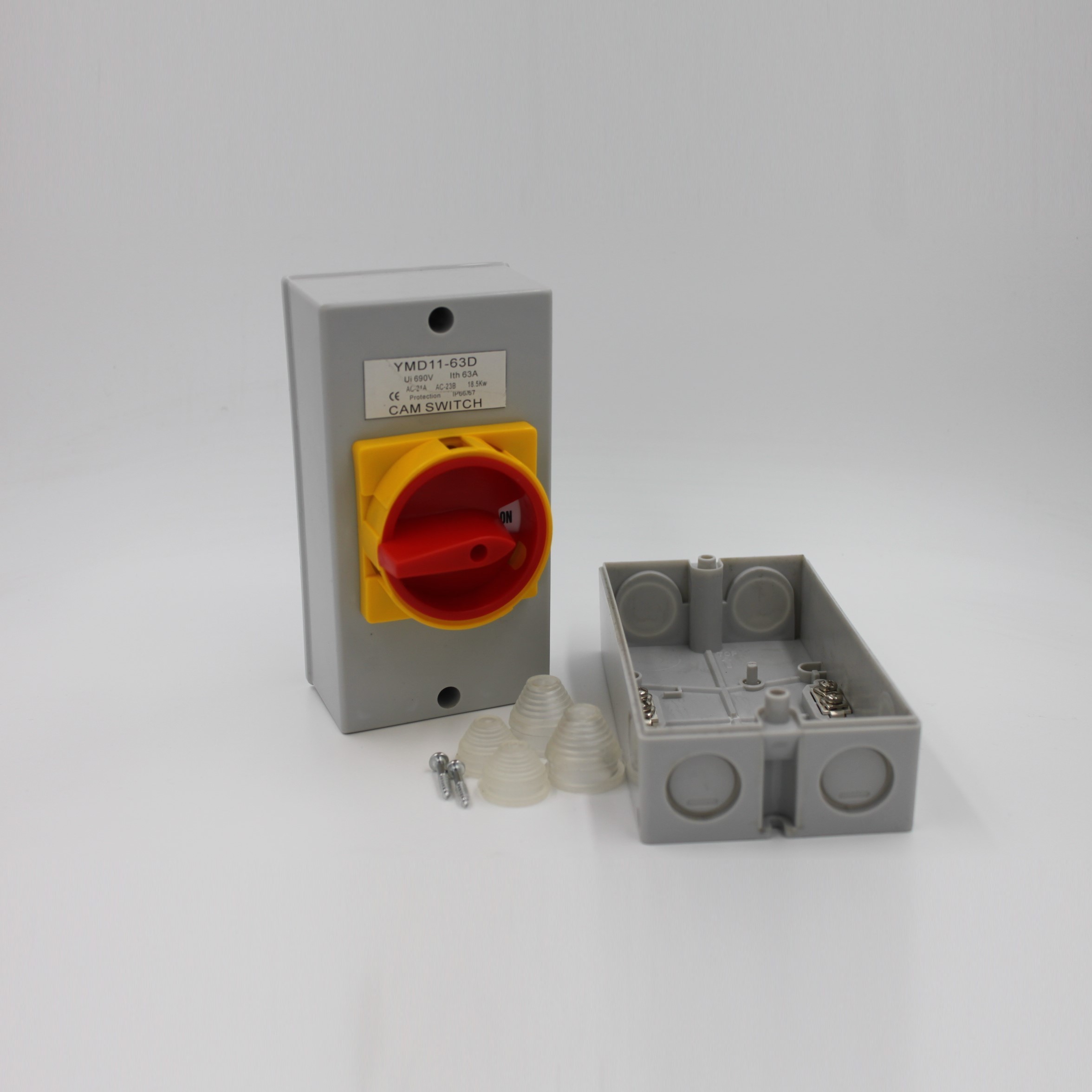

- 20A-63A items of Rotary Cam Switch can also be equipped with a protective waterproof housing(IP65).
Advantage:
- LW30 series Rotary Isolator switch have the characteristics of small size, multi-function, compact structure, exquisite material selection, good insulation, flexible conversion operation, safety and reliability, and novel appearance.
- LW30 series Rotary Isolator switch supply for many different Installation method: Padlock-Panel, Panel Mounting, DIN-RAIL Mounting…
Technical parameters:
| Description | LW30-25(20) | LW30-32 | LW30-40 | LW30-63 | LW30-80 | |||||||
| Rated thermal current | ITH | A | 25(20) | 32 | 40 | 63 | 80 | |||||
| Rated working voltage | LE | V | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 | 240 | 440 |
| Ie/Pe | Ie/Pe | |||||||||||
| AC-21A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | |
| AC-22A | A/KW | 20/- | 20/- | 32/- | 32/- | 40/- | 40/- | 63/- | 63/- | 80/- | 80/- | |
| AC-23A | A/KW | 15/4 | 15/7.5 | 22/5.5 | 22/11 | 30/7.5 | 30/15 | 43/11 | 43/22 | 57/18.5 | 57/30 | |
| AC-3 | A/KW | 11.7/3 | 11.7/5.5 | 15/4 | 15/7.5 | 22/7.5 | 22/11 | 36/11 | 36/18.5 | 43/15 |
57/30
|
|
Dimensions and installation dimensions:
| Description | Dimensions(mm) | Installation(mm) | |||||||
| A | B | C | K | L | E | F | D1 | D2 | |
| LW30-20 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | Φ10 | Φ4.2 |
| LW30-25 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | Φ10 | Φ4.2 |
| LW30-32 | 64 | 42 | 54 | 13.5 | 61 | 48 | 48 | Φ10 | Φ4.2 |
| LW30-40 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | Φ10 | Φ4.2 |
| LW30-63 | 64 | 50 | 64 | 16 | 67 | 48 | 48 | Φ10 | Φ4.2 |
| LW30-80 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | Φ10 | Φ4.2 |
| LW30-100 | 64 | 70 | 80 | 22.5 | 82 | 48 | 48 | Φ10 | Φ4.2 |
|
Description
|
Dimensions(mm)
|
Installation(mm)
|
||||||
| A | B | C | L | H | E | F | D2 | |
|
LW30-20
|
45 | 42 | 54 | 50 |
26
|
22 | 60 |
Φ4.2
|
|
LW30-25
|
45 | 42 | 54 | 50 |
26
|
22 | 60 |
Φ4.2
|
|
LW30-32
|
45 | 42 | 54 | 50 |
26
|
22 | 60 |
Φ4.2
|
|
Description
|
Dimensions(mm) | Installation(mm) | |||||||
| D3 | D4 | M | N |
P
|
A1 | A2 | B |
D2
|
|
|
LW30-20
|
Φ23 | Φ19 | 85 | 83 |
160
|
150 | -- | -- |
Φ4.2
|
|
LW30-25
|
Φ23 | Φ19 | 85 | 83 |
160
|
150 | -- | -- |
Φ4.2
|
|
LW30-32
|
Φ23 | Φ19 | 85 | 83 |
160
|
150 | -- | -- |
Φ4.2
|
|
LW30-40
|
Φ29 | Φ23 | 100 | 95 |
190
|
178 | -- | -- |
Φ4.2
|
|
LW30-63
|
Φ29 | Φ23 | 100 | 95 |
190
|
178 | -- | -- |
Φ4.2
|
|
LW30-80
|
Φ37.5 | Φ23 | 144 | 105 |
250
|
-- | 229 | 124 |
Φ6.5
|
|
LW30-100
|
Φ37.5 | Φ23 | 144 | 105 |
250
|
-- | 229 | 124 |
Φ6.5
|
Normal working conditions:
- Working temperature: -25°C~+40°C;the average temperature mustn’t be pass 35°C
- Working height: ≤2,000m
- Relative humidity: ≤50% with highest temperature +40°C,but allow higher humidity with low temperature less than 40°C.(eg. humidity 90%----teperature20°C)
Classification
1. Classified by utilization, control and load switch.
Main switch Control switch
2. Classified by Usages
AC-23A AC-3
- Classified by Protection level
Without Water-proof box:IP2L0 With Water-proof box:IP65
