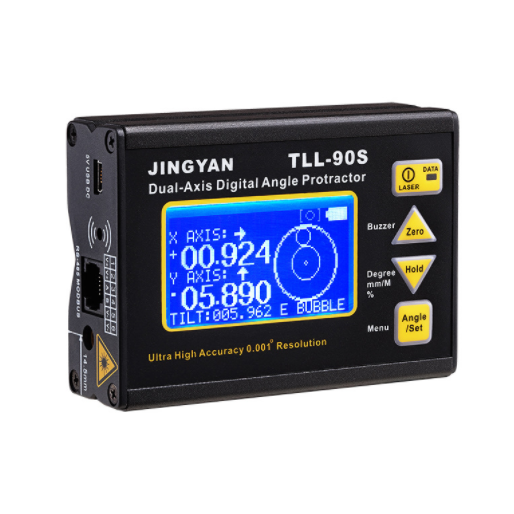

dual-axis digital display dip meter mini laser level

dual-axis digital display dip meter mini laser level

FOB Reference Price: Get Latest Price

≥2 Sets

US $199

≥10 Sets

US $189

≥50 Sets

US $179

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Wavelength:: other

Place of Origin:: Shandong, China

Model Number:: TLL 90S

Product name:: dual-axis digital display dip meter mini laser level

Usage:: Factory installation, equipment commissioning

type:: Infrared laser level

Warranty Service:: 1 year

Capacity:: 1000 sets /month

Certification:: CE FCC RoHS FDA

Feature:: Automated Loading

color box size:: 171x132x45mm

weight:: 320g

machine size:: 93x66x28mm

Quick Details

Warranty:: 1 Year

Size:: 171x132x45mm

Precision:: 0.005°

Wavelength:: other

Place of Origin:: Shandong, China

Model Number:: TLL 90S

Product name:: dual-axis digital display dip meter mini laser level

Usage:: Factory installation, equipment commissioning

type:: Infrared laser level

Warranty Service:: 1 year

Capacity:: 1000 sets /month

Certification:: CE FCC RoHS FDA

Feature:: Automated Loading

color box size:: 171x132x45mm

weight:: 320g

machine size:: 93x66x28mm

Product Description

1. Laser dual-axis digital display level.

2. Professional accurate test, high precision 0.005°, resolution 0.001°.
3. Large-screen LCD displays clear angles.
4. Polymer core, magnetic metal matrix.
5. Buzzer alarm, automatic correction, data transmission.
6. +/ - 40° biaxial mode.
7. Multiple connection system, can be connected to PLC MODBUS 485 mode, can be connected to 255 at the same time.
8. Data connection function. The level can be equipped with Bluetooth adapter (SV-BT) or USB adapter (SVRS232) to connect to the computer for data transmission, and can also be equipped with Bluetooth adapter (SV-BT) to connect to the Android phone for data viewing on the phone.

9.color box size : 171x132x45mm.
10.Gross weight : 320g.

Feature

Professional precision test, high precision 0.005°, resolution 0.001°,

large screen LCD ,

clear display Angle.

* Three-dimensional high strength magnet,

magnet adsorption, measurement easier.

Three unit modes,

switching on demand:

1m long tilt error,

standard horizontal tilt,

and overall plane tilt.

* There are two modes of measurement:

standard mode and

relative mode.

Multiple connection system, PLC can be connected by MODBUS 485 mode,

255 can be connected at the same time.

3 measurement modes:

A. Biaxial measurement mode. Lay flat on the measuring surface, biaxial measuring range ± 40°.

B. Uniaxial measurement mode. Stand up and place on the measuring surface, uniaxial measuring range ± 360°. Display Angle ± 0°-90°.

C. Angle measurement mode. Gyroscope function to measure the Angle between any plane.

* Simulated horizontal bubble experiment:

whichever side the bubble is, which side of the plane is higher.

Application：

Factory installation, equipment commissioning, medical use, product quality inspection。

Configuration list:

meter laser level , data cable, charger, manual , color box .
