Halogen Medium Short Wave Quartz Infrared Ruby Heating Tube For Sauna Room

Halogen Medium Short Wave Quartz Infrared Ruby Heating Tube For Sauna Room

FOB Reference Price: Get Latest Price

≥10 Pieces

US $10

≥50 Pieces

US $8

≥100 Pieces

US $5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: HONGTAI

Weight:: 1 KG

Working Temperature Range:: 0 - 300 ℃

Model:: 1000W Golden Coating Infrared Quartz Heating Elements

Product:: Quartz Heating Tube 400W

Color Temp:: 2400-2500K

Wave Length:: 2.2-3.5 um

Diameter:: 6,8,10,12 30mm

Max Length:: 1500-2500mm

Operation Methods:: Horizontai and Vertical

Reflection:: Gold / Ceramic White / Glear

Thermal Response Speed:: 3-5 min

Quick Details

Type:: Infrared Heater

Power Source:: Electric

Voltage:: Other

Place of Origin:: Jiangsu, China

Brand Name:: HONGTAI

Weight:: 1 KG

Working Temperature Range:: 0 - 300 ℃

Model:: 1000W Golden Coating Infrared Quartz Heating Elements

Product:: Quartz Heating Tube 400W

Color Temp:: 2400-2500K

Wave Length:: 2.2-3.5 um

Diameter:: 6,8,10,12 30mm

Max Length:: 1500-2500mm

Operation Methods:: Horizontai and Vertical

Reflection:: Gold / Ceramic White / Glear

Thermal Response Speed:: 3-5 min

Product Description

Halogen Medium Short Wave Quartz Infrared Ruby Heating Tube For Sauna Room is made of tungsten wire . Halogen quartz heating tube,put Tungsten wire in quartz tube , through lamp wire and shell make light,range of light is 2400-3500km, it belongs vacuum heating tube.

The quartz tube can use transparent quartz glass tube or ruby glass.
Halogen also is a kind of shortwave infrared emitter.This provides a very high energy source capable of responding instantly to voltage changes, allowing for precise temperature control for a variety of applications.

Product Name	Halogen Medium Short Wave Quartz Infrared Ruby Heating Tube For Sauna Room
Material	transparent quartz tube/Ruby glass tube and tungsten wire
Type	straight type or round shape
Reflector	half white coated, gold coated
Voltage	110V, 120V, 200V, 220V, 230V, 240V, 400V, 480V and other can be customized
Wattage	300W-3000W, and other can be customized
Length	100-2000mm
Warranty	5000hours

Products Show

Product Details

High quality raw material:

Combining high-quality transparent quartz tube materials and halogen principles,

effectively increasing the density of infrared radiation. This achieves the user's ideal heating purpose

High-quality coating(can choose)

The semi-plated white coating using special technology such as quartz powder can reflect more than 90% of the infrared heat in the same direction, reducing energy loss

High temperature ceramic part

Infrared heating lamp ceramic is made of high quality ceramic material which can resist 1500 degree.

High temperature heating

High thermal efficiency/Long life

Tungsten wire heats and heats the gas in the quartz tube under the AC voltage, resulting in infrared radiation. The red tube has excellent quality, high thermal efficiency, high power density, rapid heating, and power saving. ,long life

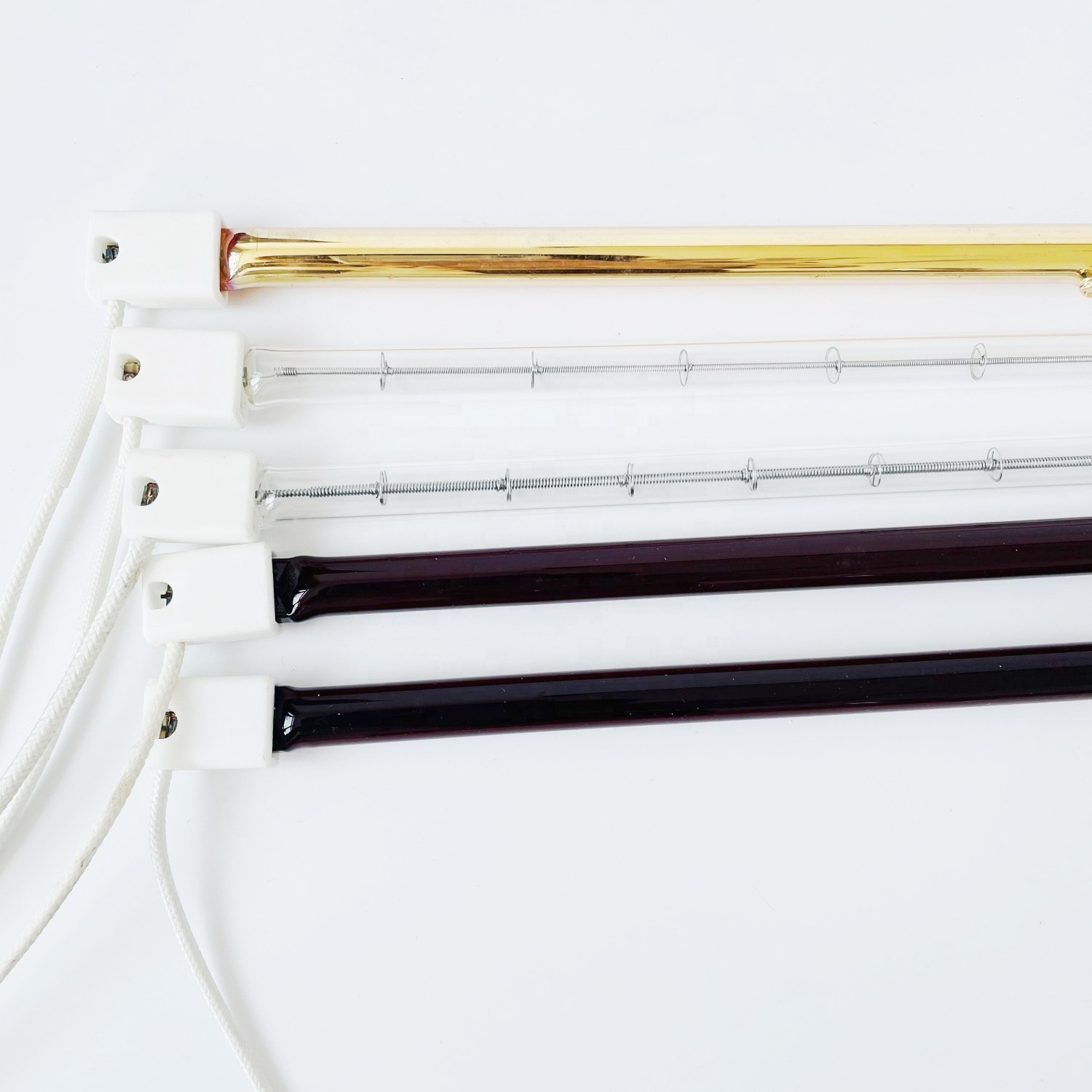

The other type Quartz Heating Lamp

half white coated halogen quartz heater

size customized

Half Gold coated halogen quartz heater

size customized

Twin type gold lamp

size 12*24MM 16*33MM

APPLICATION

Used for powder curing of metal coatings, paint, moisture drying, Such as: car paint, oven, glass, sintering furnace, plastic spray baking room, paper, circuit board, etc.
