Quick Details
-
Warranty of core components:
-
1 years
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
28.9KW
-
Applicable Industries:
-
woodworking
-
Product name:
-
Wide belt sanding machine
-
Application:
-
wood board surface sanding
-
Voltage:
-
Customized
-
Service:
-
24/7
-
Structure:
-
Heavy Duty Steel Structure
-
After Warranty Service:
-
Support Online Support
-
Working width:
-
1000mm
-
Feeding speed:
-
6-30m/min
-
Working thickness:
-
3-110mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZHONGDING
-
Marketing Type:
-
Hot Product 2023
-
Warranty of core components:
-
1 years
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
28.9KW
-
Applicable Industries:
-
woodworking
-
Product name:
-
Wide belt sanding machine
-
Application:
-
wood board surface sanding
-
Voltage:
-
Customized
-
Service:
-
24/7
-
Structure:
-
Heavy Duty Steel Structure
-
After Warranty Service:
-
Support Online Support
-
Working width:
-
1000mm
-
Feeding speed:
-
6-30m/min
-
Working thickness:
-
3-110mm
WHY CHOOSE US?
CUSTOMER REVIEWS
PRODUCT CONFIGURATION

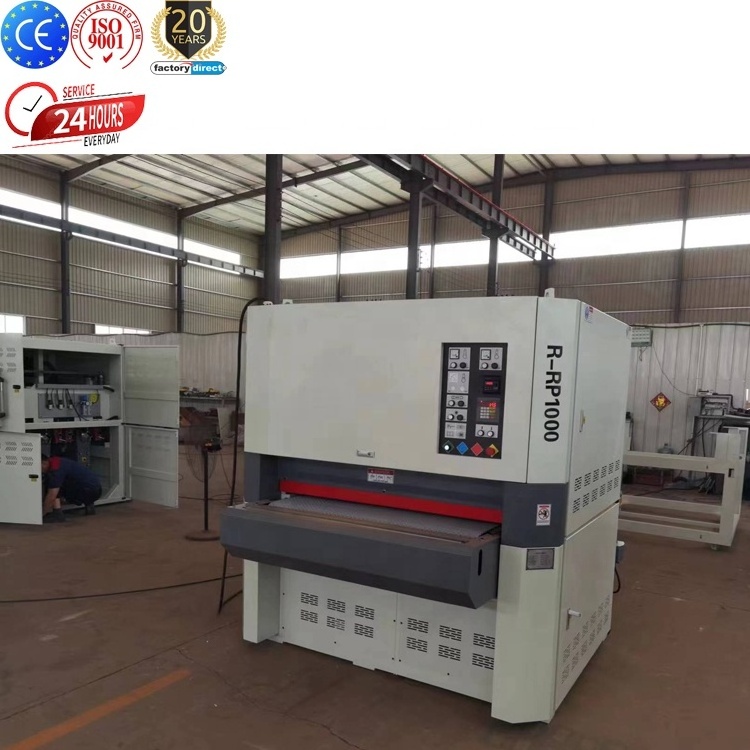

Wide belt sanding machine
Woodworking sanding machine can improve the dimensional accuracy of the board surface. It can process the board with a large width, and it can also process the narrow board; it can process various planes and curved surfaces; it can be used for large For mass production, it can also be used for small batch production. Especially after the wood product has completed the assembly process and enters the surface treatment stage, a sander is often used as a sanding tool. Sanding machine can replace manual grinding and improve work efficiency.
The belt tensioning cylinder is made of cast iron, which has large tension and good stability.
The body is welded by steel plate, after quenching treatment, good stability, imported conveyor belt, good reliability and durability.
The whole series adopts the split structure of the cylinder and the beam seat, which has good stability and convenient maintenance.
PRODUCT SPECIFICATIONS
|
Model
|
R-RP630
|
R-RP1000
|
R-RP1300
|
|
Max working width
|
630mm
|
1000mm
|
1300mm
|
|
Material thickness
|
2-120mm
|
2.5-120mm(option 2.5-160mm)
|
2-120mm(option 2.5-160mm)
|
|
Min. Working length
|
350mm
|
350mm
|
350mm
|
|
6-30Feeding speed
|
6-30m/min
|
6-30m/min
|
6-30m/min
|
|
1# sanding belt speed
|
18m/min
|
18m/min
|
18m/min
|
|
2# sanding belt speed
|
14m/min
|
12m/min
|
12m/min
|
|
Size of sanding belt
|
650*1900mm
|
1020*2020mm
|
1320*2020mm
|
|
Main motor power
|
11kw,7.5kw
|
15kw,11kw
|
37kw,22kw
|
|
Total power
|
20.74kw
|
28.94kw
|
56.74kw
|
|
Working air pressure
|
0.5mpa
|
0.55mpa
|
0.55mpa
|
|
Volume of dust collecting
|
5000m3/h
|
5000m³/h
|
5000m³/h
|
|
Speed of dust collecting
|
25-30m/s
|
25-30m/s
|
25-30m/s
|
|
Overall dimension
(L*W*H) |
1700*1100*2050mm
|
1700*1400*2050mm
|
2750*2200*2050mm
|
|
Weight
|
1300kg
|
2000kg
|
3200kg
|
