Quick Details
-
Oilfiled:
-
solids control
-
HDD&CBM:
-
mud system
-
Slurry separation:
-
Mud system
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
GN
-
Model Number:
-
JBQ
-
Oilfiled:
-
solids control
-
HDD&CBM:
-
mud system
-
Slurry separation:
-
Mud system

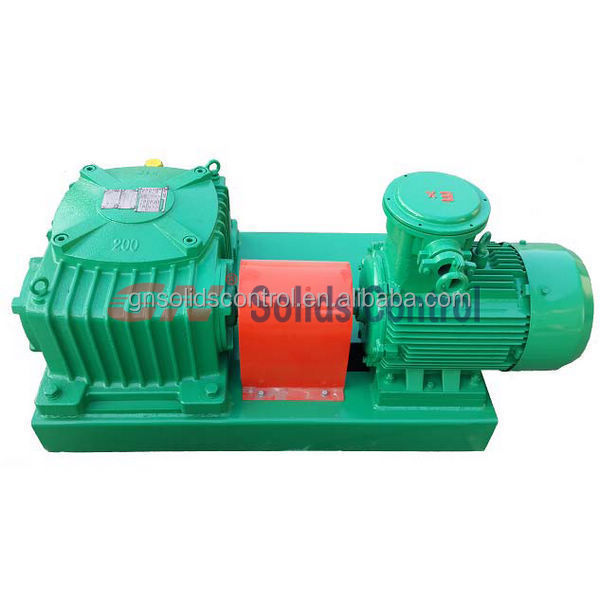

Drilling Mud Agitator /Oilfiled mud agitator solids control equipment manufacture
|
Agitator Model |
JBQ5.5 |
JBQ7.5 |
JBQ11 |
JBQ15 |
|
Motor Power |
5.5KW |
7.5KW |
11KW |
15KW |
|
Impeller Speed |
60/72RPM |
60/72RPM |
60/72RPM |
60/72RPM |
|
Impeller Dia |
600 mm |
600 mm |
700 mm |
700 mm |
|
Ration |
25:1 |
25:1 |
25:1 |
25:1 |
|
Dimension |
870x600x560mm |
906x600x560mm |
1075x650x630mm |
1170x720x685mm |
|
Electric Specs |
380V/50Hz or 460V/60Hz Or Customized |
|||
|
Shaft Length |
According to tank inner depth |
|||
|
Remarks |
Explosion Proof Motor, Shaft Stabilizer Available Customized Impeller Diameter Available |
|||
GN Solids Control factotry near Beijing,welcome to visit.
GN international team
GN mud agitator mix the suspend the solids using both axial and radial flows, and by utilizing low shear mixers to suspend and mix mud additives particle size degradation and polymer shear. Unlike centrifugal pumps or mud guns. The GN Mud Agitator is relatively low shear and low energy device, so it’s easy to operate and inexpensive to maintain. This will ensure that mud additives are homogeneously mixed to prevent dead spots. Agitators will keep the active mud system flowing even when the pumps are disengaged and keep the weighting agents in suspension.
FEATURES OF Drilling MUD AGITATOR :
l Compact design. Quiet, smooth, vibration free.
l Durable, single reduction worm gear drive.
l Direct, flexi-couple drive system.
l C-Face Explosion proof electrical motor. ATEX,IEC Ex, Motors are available for option
l GN Special designed impeller completely made from casting to have better mixing performance.
