Quick Details
-
Brand Name:
-
A&ELAB
-
Model Number:
-
Gasboard-5025
-
Measurements:
-
CO2, CO, HC, optional O2, NOx gases.
-
Technology:
-
NDIR
-
Warm-up time:
-
10 minutes
-
Response time (T90):
-
10 seconds (NDIR) , 30 seconds (Zirconia)
-
Display:
-
LCD display
-
Power supply:
-
110V-220V±10% 50Hz ±1Hz
-
Operation Temperature:
-
0~50℃
-
Dimension:
-
260x180x360mm
-
Flow rate:
-
0.7-1.2L/min
-
Options:
-
Built-in printer, RPM sensor, Oil temperature sensor
Quick Details
-
Type:
-
Emission Gas Analyzer
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
A&ELAB
-
Model Number:
-
Gasboard-5025
-
Measurements:
-
CO2, CO, HC, optional O2, NOx gases.
-
Technology:
-
NDIR
-
Warm-up time:
-
10 minutes
-
Response time (T90):
-
10 seconds (NDIR) , 30 seconds (Zirconia)
-
Display:
-
LCD display
-
Power supply:
-
110V-220V±10% 50Hz ±1Hz
-
Operation Temperature:
-
0~50℃
-
Dimension:
-
260x180x360mm
-
Flow rate:
-
0.7-1.2L/min
-
Options:
-
Built-in printer, RPM sensor, Oil temperature sensor
Product Description

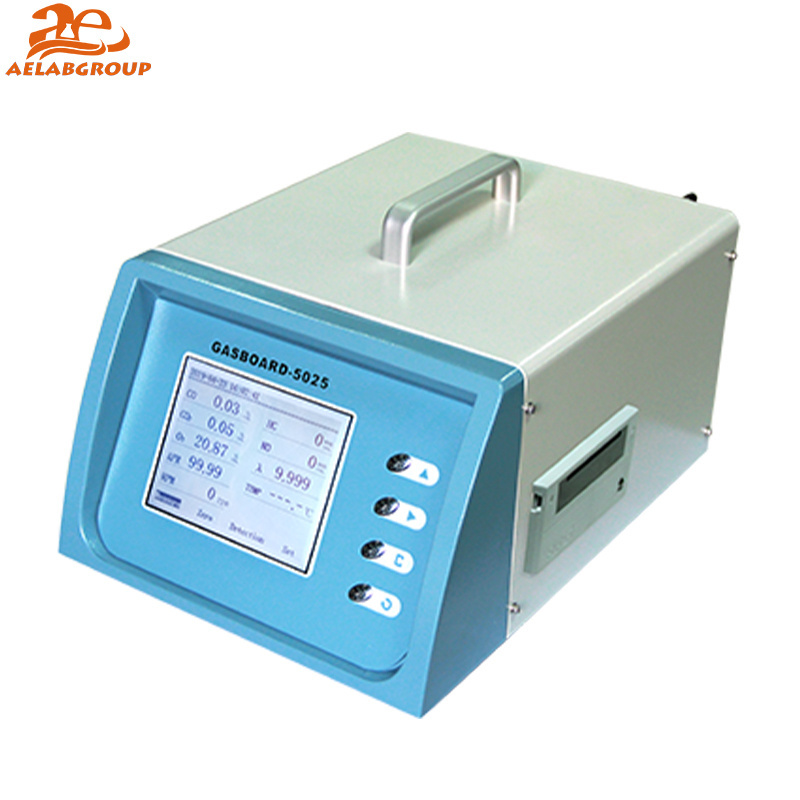

Automobile Emission Gas Analyzer
Gasboard-5025
Gasboard-5025 emission gas analyzer is designed for measuring the emissions from all gasoline, LPG or CNG vehicles, it is developed based on dual beam non-dispersion infrared (NDIR) principle to measure CO, CO2, HC three gases, and one zirconia sensor to measure O2 and NOx two gases. The testing reports can be printed by built-in printer. Gasboard-5025 is equivalent with OIML R99 class 0 standard, very suitable for cars, motorcycles, and other light duty, heavy duty vehicles exhaust inspection.
Applications
:
• Vehicle inspection station
• Vehicle maintenance station
• Automotive workshop
• Environmental protection institution
• University and laboratory research
Features:
1. One Zirconia sensor measures O2 & NOx two gases simultaneously.
2. Alternative to electrochemical O2 & NOx sensors, with longer lifetime and less maintenance cost.
3. CO, HC compensation on O2 to avoid interferences.
4. OIML R99 class 00 standard compliance.
5. NDIR gas bench with regulated temperature system, high accuracy, better stability.
6. Self-developed & manufactured sensors ensures stable supply and fast delivery.
7. Cleanable NDIR gas chamber, easy maintenance.
8. Built-in printer option.
Technical Specifications:
|
Measurements
|
|
CO2, CO, HC, optional O2, NOx gases.
|
|
|
|
|
|||||
|
Technology
|
|
NDIR
|
|
|
Zirconia
|
|
|||||
|
Measuring range
|
|
CO2
|
CO
|
HC
|
O2
|
NOx
|
|||||
|
|
|
0-20%
|
0-10%
|
0-9999ppm
|
0-25%
|
0-3000ppm
|
|||||
|
|
|
|
(*0-15% optional)
|
(*0-20000ppm optional)
|
|
|
|||||
|
Resolution
|
|
0.01%
|
0.01%
|
1ppm
|
0.01%
|
1ppm
|
|||||
|
Error
(which ever is greater)
|
rel.
|
±4%
|
±3%
|
±5%
|
±3%
|
±4%
|
|||||
|
|
Abs.
|
±0.4%
|
±0.03%
|
±10ppm
|
±0.1%
|
±25ppm
|
|||||
|
Warm-up time
|
|
10 minutes
|
|
|
|
|
|||||
|
Response time (T90)
|
|
10 seconds (NDIR) , 30 seconds (Zirconia)
|
|
|
|
|
|||||
|
Display
|
|
LCD display
|
|
|
|
|
|||||
|
Power supply
|
|
110V-220V±10% 50Hz ±1Hz
|
|
|
|
|
|||||
|
Operation Temperature
|
|
0~50℃
|
|
|
|
|
|||||
|
Dimension
|
|
260×180×360mm
|
|
|
|
|
|||||
|
Flow rate
|
|
0.7-1.2L/min
|
|
|
|
|
|||||
|
Weight
|
|
6kg
|
|
|
|
|
|||||
|
Standard accessories
|
|
Sampling pipe and probe, standby filters, RS-232 cable, power cable
|
|
|
|
|
|||||
|
Options
|
|
Built-in printer, RPM sensor, Oil temperature sensor
|
|
|
|
|
|||||
