FOB Reference Price: Get Latest Price
≥1000 Meters
US $2.34
≥10000 Meters
US $1.98
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Application:
Villa
Design Style:
Modern
Place of Origin:
Shandong, China
Brand Name:
Xinfeng
Model Number:
bentonite layer Geosynthetic Clay Liner Ben
Specification:
4000G-8000G
Material:
Bentonite
Type:
Waterproof Membrane
Function:
Waterproof
Usage:
Artificial Lake
Feature:
Waterproof Blanket
Keyword:
Geo Synthetic Pond Liner Bentonite
Weight:
3500g-8500g
LENGTH:
50m
WIDTH:
1-6m

Quick Details

Warranty:
More than 5 years
After-sale Service:
Online technical support
Project Solution Capability:
graphic design
Application:
Villa
Design Style:
Modern
Place of Origin:
Shandong, China
Brand Name:
Xinfeng
Model Number:
bentonite layer Geosynthetic Clay Liner Ben
Specification:
4000G-8000G
Material:
Bentonite
Type:
Waterproof Membrane
Function:
Waterproof
Usage:
Artificial Lake
Feature:
Waterproof Blanket
Keyword:
Geo Synthetic Pond Liner Bentonite
Weight:
3500g-8500g
LENGTH:
50m
WIDTH:
1-6m

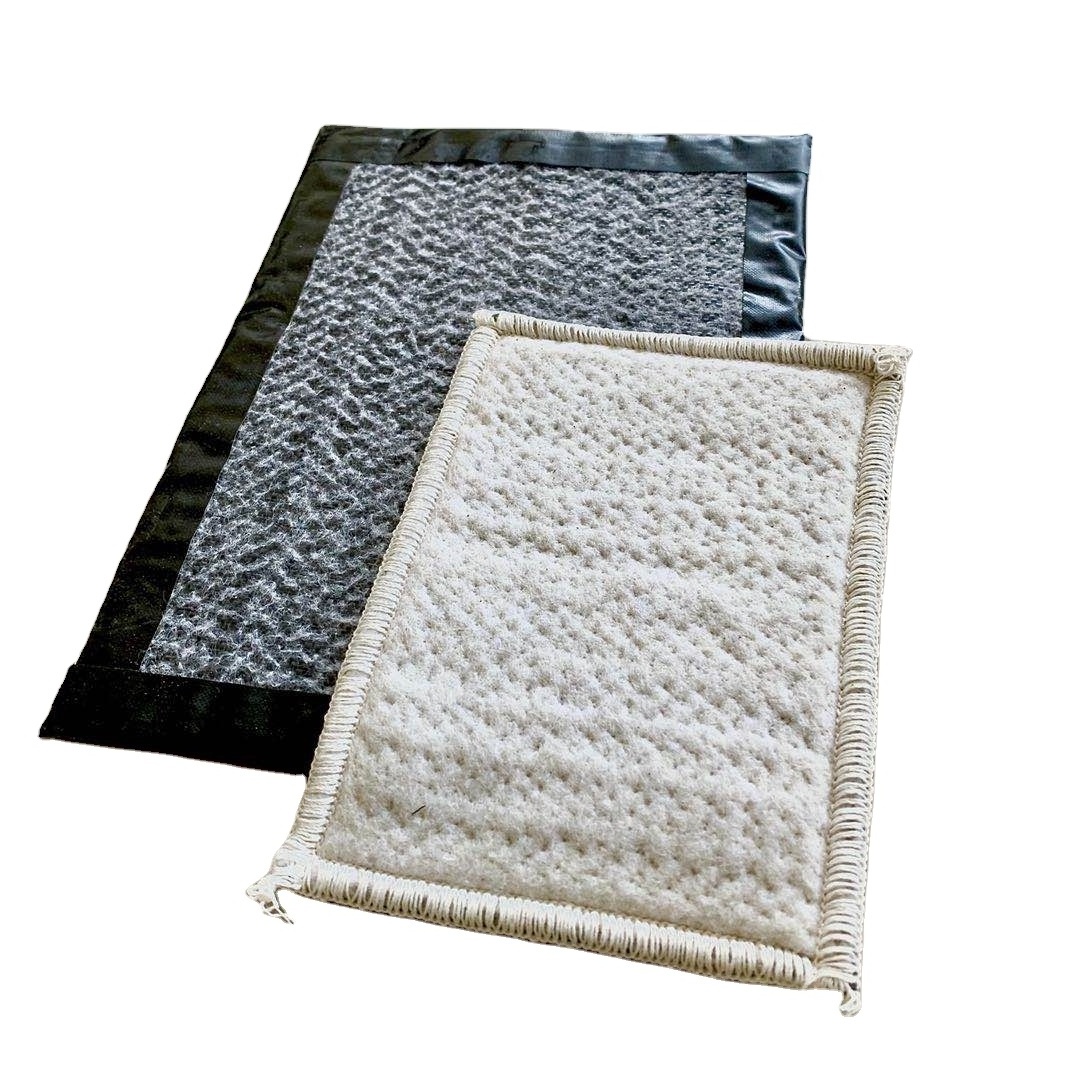

Geosynthetic Clay Liner(GCL)
Geosynthetic Clay Liner(GCL) is also named sodium bentonite composite waterproof pad. This is to make high swelling sodium
bentonite filling into the inside between special composite geotextile and non-woven fabric. The bentonite impermeable cushion
that made of acupuncture method can form a lot of small fiber spaces. This is to make the bentonite particles cannot flow in one
direction. When encountering water, it can form uniformly high density colloidal waterproof layer in the pad, and effectively
prevent water leakage. Geosynthetic clay liner is suitable for artificial lake water, landfill, underground garage, roof garden,
pool, oil depot and chemicals yard.

Warranty
More than 5 years
After-sale Service
Online technical support, Onsite Installation, Onsite Training
Project Solution Capability
graphic design, 3D model design, total solution for projects
Application
Mainly used in the environmental engineering in waste landfill, groundwater reservoir, underground infrastructure project.
Design Style
Industrial
Place of Origin
Shandong, China
Brand Name
Xinfeng
Specification
4000-6000g/sqm
Application
landfill, groundwater reservoir, underground infrastructure project.
Material
Geotextile+bentonite+non woven fabric
Thickness
4000-6000g/sqm
Length
30m or follow customers' request
Width
1-7m or follow customers' demand
Color
Black, white or as customers' required.
Property
National standard
Enterprise Standard
Inspection standards
JG/T 193-2006
Geosynthetic Clay Expansionindex
≥24 ml/2g
≥25ml/2g
ASTM D5890
Mass Per Unit Area(g/m2)
≥4800 g/m2
≥4800 gm2
ASTM D5993
Tensile Strength
≥6KN/m
≥8KN/m
ASTM 4632
Maximum load elongation
≥10%
≥10%
ASTM 4632
Permeability
≤5×10-9
≤5×10-9
ASTM D5084
Moisture content
≤15%
≤15%
ASTM D4643
Peel strength
≥40N
≥65N
ASTM D4632
Hydrostatic pressure
0.4Mp
0.4~0.6Mp
ASTM D5891

Features:

1. Compactness: The sodium bentonite forms a high-density diaphragm under water pressure. When the thickness is about 3mm, its water permeability is below a×10-11m/sec, which is equivalent to 100 times the compactness of 30cm thick clay. Strong self-holding water performance.
2 Has permanent waterproof performance: Because sodium bentonite is a natural inorganic material, even after a long time or the surrounding environment changes, it will not be aging or corroded, so the waterproof performance is long-lasting.
3. Simple construction and short construction period: Compared with other waterproof materials, the construction is relatively simple and does not require heating and pasting. Just use bentonite powder, nails, washers, etc. to connect and fix. No special inspection is required after construction, and it is easy to repair if waterproof defects are found. GCL is the shortest construction period among the existing waterproof materials.
4. Not affected by temperature: it won't be brittle under cold weather conditions.
5. Integration of waterproof materials and objects: When sodium-based bentonite reacts with water, it has 13-16 times the expansion capacity. Even if the concrete structure vibrates and settles, the bentonite in the GCL can repair the cracks on the concrete surface within 2mm.
6 Green and environmental protection: Bentonite is a natural inorganic material, which is harmless and non-toxic to the human body, has no special impact on the environment, and has good environmental performance.

Application:
1. Municipal engineering: highway, railway, subway, buildings, and seepage prevention of roof reservoir.
2.Environmental Protection: household waste landfill, sewage treatment plant and industrial waste.
3.Hydraulic engineering: seepage prevention, leak plugging and reinforcement of rivers, lakes and reservoirs.
4.Garden, artificial lake, golf course pond seepage control.
5.Anti-seepage, anti-corrosion and reinforcement of petrochemical, mine and agricultural engineering.
