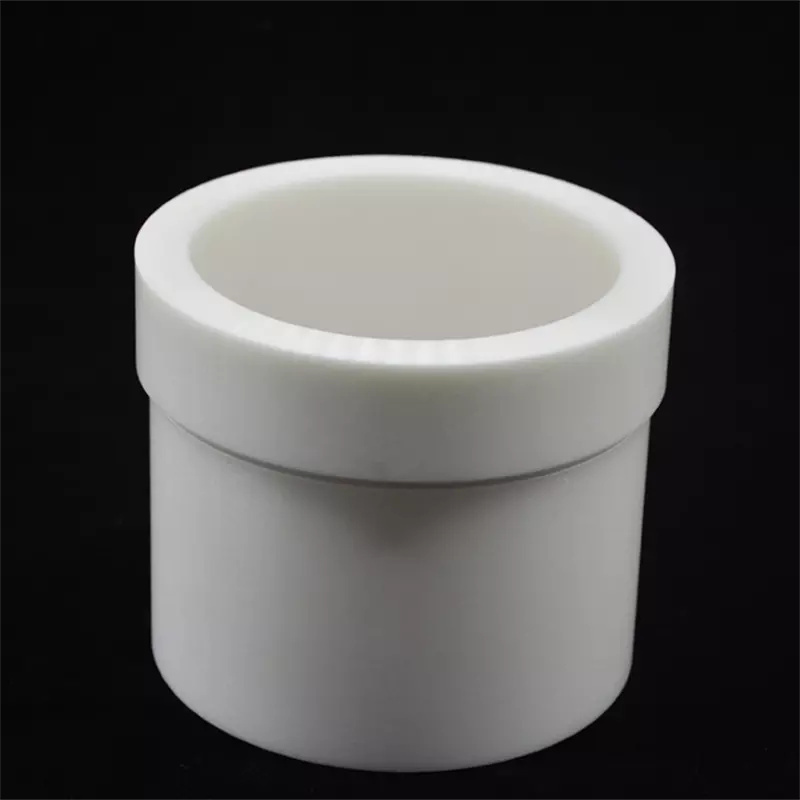

Customized Yttrium Stabilized Zirconia Ceramic Sleeve Bushing Zro2 Ring Tube With Flange

Customized Yttrium Stabilized Zirconia Ceramic Sleeve Bushing Zro2 Ring Tube With Flange

FOB Reference Price: Get Latest Price

≥10 Pieces

US $10

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Quayer

Product Name:: Yttrium Stabilized Zirconia Ceramic Sleeve Zro2 Tube With Flange

Size:: Customized

Shape:: Tube

Density:: 6.0g/cm3

Color:: White

Feature:: High Hardness, Good Insulation

Sample:: Available

Keyword 1:: Zirconia Ceramic Sleeve

Keyword 2:: Zirconia Ceramic Bushing

Keyword 3:: Zirconia Ceramic Flange Ring

Quick Details

Material:: Zirconia Ceramic

Place of Origin:: Jiangsu, China

Model Number:: OEM

Brand Name:: Quayer

Product Name:: Yttrium Stabilized Zirconia Ceramic Sleeve Zro2 Tube With Flange

Size:: Customized

Shape:: Tube

Density:: 6.0g/cm3

Color:: White

Feature:: High Hardness, Good Insulation

Sample:: Available

Keyword 1:: Zirconia Ceramic Sleeve

Keyword 2:: Zirconia Ceramic Bushing

Keyword 3:: Zirconia Ceramic Flange Ring

Product Description

Zirconia Ceramics (ZrO2) is a commonly used technical ceramic material. It has relatively high fracture strength among all ceramic materials, with the addition of high hardness and low friction coefficient, it is usually used for structural ceramic components.Its thermal expansion coefficient is similar to steel, so it can be jointed to steel parts. Besides, it has excellent corrosion resistance and low thermal conductivity.

Zirconia (ZrO2) ceramics have the advantages of high hardness, wear resistance, low friction coefficient, good corrosion resistance and electronic and magnetic insulation. They are widely used as mechanical seals, ball milling media, cutting tools, ceramic bearings, auto engine parts, paper machine dehydrator materials, etc.

Product Name	Yttrium Stabilized Zirconia Ceramic Sleeve Bushing Zro2 Ring Tube With Flange
Material	Zirconia Ceramic
Size	Customized
Feature	Wear Resistance, Good Insulation
Sample	Available
Payment	TT, Western union, Credit Card
Delivery	Air Express (DHL/UPS/TNT/ FedEx),Sea transportation

Feature

1.Excellent insulation
2. High Mechanical Strength
3. Outstanding Electrical and Electronic

Properties
4. Wear Resistance
5. Extreme Temperature Stability
6. Resistant to Corrosion and Chemical Attack

.

Application

used in shaft, plunger, sealing structure, auto mobile industrial, oil drilling equipment, insulation parts in electrical

equipment, ceramic knife, ceramic hair clipper spare parts

Material Performance

Item		Unit	Zirconia
Physical Characteristics	Heat resistance	℃	2200
		Bulk density	g/cm3	6.05
		Waterabsorption	%	0
		Flexural strength	Mpa	1000
Mechanical Characteristics	Hardness vickers	Gpa	89
		Elastic modulus	Gpa	200
		Poisson’s ratio	—	0.31
Thermal Characteristics	Linear expansion coefficient	(20-5000C) 10-6/0C	10
		Thermal conductivity	W/(m.k)	2.5
		Specific Heat	10-3J/(kgK)	0.5
Electrical Characteristics	Dielectric constant (1MHZ)		N.A.
		Dielectric loss angle	*10-4	N.A.
		Dielectric strength	*106V/m	N.A.
