- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
23.8kw
-
Name:
-
Vacuum membrane press machine
-
Model:
-
KIV-E260
-
Total power:
-
37kw
-
worktable size:
-
3000*1300*60mm
-
Max processing high:
-
50mm
-
Certification:
-
CE/ISO
-
Weight:
-
2000kg
-
Overall dimensions (mm):
-
9650*1780*1650mm
-
Application:
-
Woodworking furniture manufacturing
-
Color:
-
Customers Requirement
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOLYISO
-
Machine Type:
-
vacuum membrane press machine
-
Weight (KG):
-
2000 KG
-
Power (kW):
-
23.8kw
-
Name:
-
Vacuum membrane press machine
-
Model:
-
KIV-E260
-
Total power:
-
37kw
-
worktable size:
-
3000*1300*60mm
-
Max processing high:
-
50mm
-
Certification:
-
CE/ISO
-
Weight:
-
2000kg
-
Overall dimensions (mm):
-
9650*1780*1650mm
-
Application:
-
Woodworking furniture manufacturing
-
Color:
-
Customers Requirement
Products Description

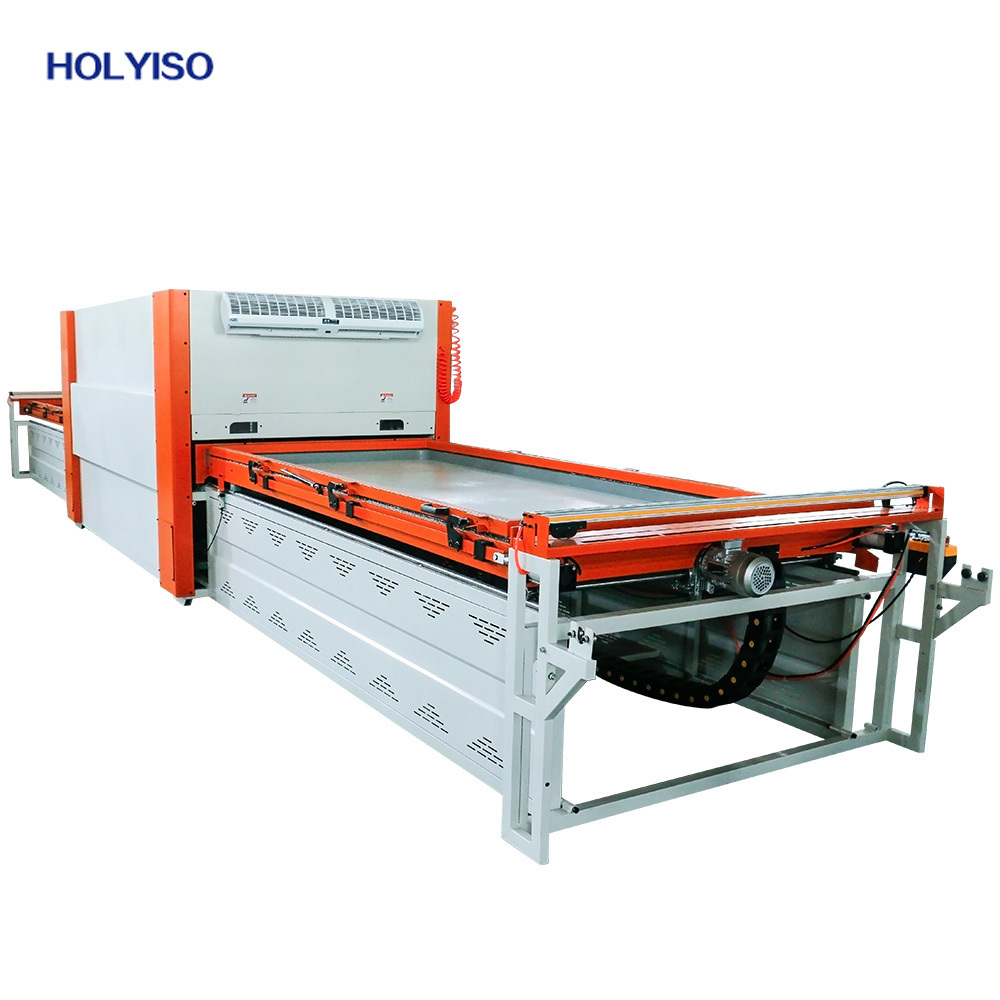

Vacuum Membrane Press Machine
Application:
Decorative materials such as high-grade PVC film and transfer film can be pasted on the surface of various wood boards. After installing silicone film, leather, wall cloth or wood leather can be pasted. Widely used in plate home decoration manufacturing, cabinet closet door, flat door, bathroom door, computer desk, office furniture and other door decoration production.
Decorative materials such as high-grade PVC film and transfer film can be pasted on the surface of various wood boards. After installing silicone film, leather, wall cloth or wood leather can be pasted. Widely used in plate home decoration manufacturing, cabinet closet door, flat door, bathroom door, computer desk, office furniture and other door decoration production.
Advantage:
1. It reduces the cumbersome operation steps and saves time;
2.Reduces the traditional trouble points and improves the working efficiency;
3.The quality of each major component is upgraded and the stability is improved.
|
Model
|
KIV-E260
|
KIV-E260
|
KIV-F280
|
|||
|
Worktable size
|
2550*1150
*60mm
|
3000*1300
*60mm
|
3000*1300
*60mm
|
|||
|
Working thickness
|
50mm
|
50mm
|
50mm
|
|||
|
Overall dimensions
|
9650*1780*1650mm
|
11000*1780*1650mm
|
11000*1780*1850mm
|
|||
|
Total power
|
23.8kw
|
26.2kw
|
40.8kw
|
|||
|
Main heating mode
|
Aluminum bar upper heating
|
Aluminum bar upper heating
|
Aluminum bar upper heating
|
|||
|
Auxiliary heating mode
|
/
|
/
|
Stainless steel tube underside heating
|
|||
|
Control panel
|
PLC control system (7 "touch screen control)
|
PLC control system (7 "touch screen control)
|
PLC control system (10 "touch screen control)
|
|||
|
Weight
|
2000kg
|
2500kg
|
2800kg
|
|||
|
*Machine can be customized according to your need *
|
|
|
|
|||
- Schematic Diagram -
KIV-E260 Heating Mode
It is equipped with special electric heating aluminum plate for heating, fast heating and uniform heat radiation.Working at a constant temperature overcomes the problem of large temperature differences and high power consumption
KIV-F280 Heating Mode
With special electric heating aluminum plate, upper and lower double heating, can make PVC film and plate double side heat, heat radiation is more uniform. Effectively improve the quality of sheet edge and control the deformation of sheet.
Details Images
Easy to operate. Machine has been placed in a variety of functional modes and a variety of parameters, according to different materials of PVC film, free choice at any time.
Double station automatic operation mode
The left and right two stations can operate continuously. When the left platform is working, the right platform places the workpiece; when the right platform is working, the left platform places the workpiece. There is no need to wait to maximize
efficiency.
efficiency.
Multifunctional vacuum membrane press mode
Low - pressure and high - pressure vacuum membrane press mode can solve the PVC film wrinkles, broken film and watermarking surface and other phenomena. Better improve the product yield and surface texture after the film.
Save labor time, reduce material waste, effectively reduce the cost. Only the blade needs to be replaced.
Two cooling fans (Optional)
Equipped with two cooling fans for rapid cooling. After forming the sheet can be cooled and shaped, but also prevent deformation
Product Real shoot
Application:
Decorative materials such as high-grade PVC film and transfer film can be pasted on the surface of various wood boards. After installing silicone film, leather, wall cloth or wood leather can be pasted. Widely used in plate home decoration manufacturing, cabinet closet door, flat door, bathroom door, computer desk, office furniture and other door decoration production.
Decorative materials such as high-grade PVC film and transfer film can be pasted on the surface of various wood boards. After installing silicone film, leather, wall cloth or wood leather can be pasted. Widely used in plate home decoration manufacturing, cabinet closet door, flat door, bathroom door, computer desk, office furniture and other door decoration production.
Packing&Shiping
Delivery:
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
We can guarantee delivery on time.We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
Package:
We will take care of your machinery packages well like picture show.Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine. If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
