Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
3770*670*1450mm
-
Sealing type:
-
Heat Sealer
-
Control system:
-
PLC
-
Packing material:
-
OPP/CPP/PE/PET
-
Bag type:
-
pillow bag/back sealing bag
-
Keyword:
-
Bag Pillow Packaging Machine
-
Usage:
-
Bag Making
-
Main Function:
-
Automatic Form
-
Material:
-
Stianless Steel
-
Automaticity:
-
Touch Screen Control
-
Advantage:
-
Stable Operation
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Bags, Film, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Dession
-
Dimension(L*W*H):
-
3770*670*1450mm
-
Sealing type:
-
Heat Sealer
-
Control system:
-
PLC
-
Packing material:
-
OPP/CPP/PE/PET
-
Bag type:
-
pillow bag/back sealing bag
-
Keyword:
-
Bag Pillow Packaging Machine
-
Usage:
-
Bag Making
-
Main Function:
-
Automatic Form
-
Material:
-
Stianless Steel
-
Automaticity:
-
Touch Screen Control
-
Advantage:
-
Stable Operation
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE

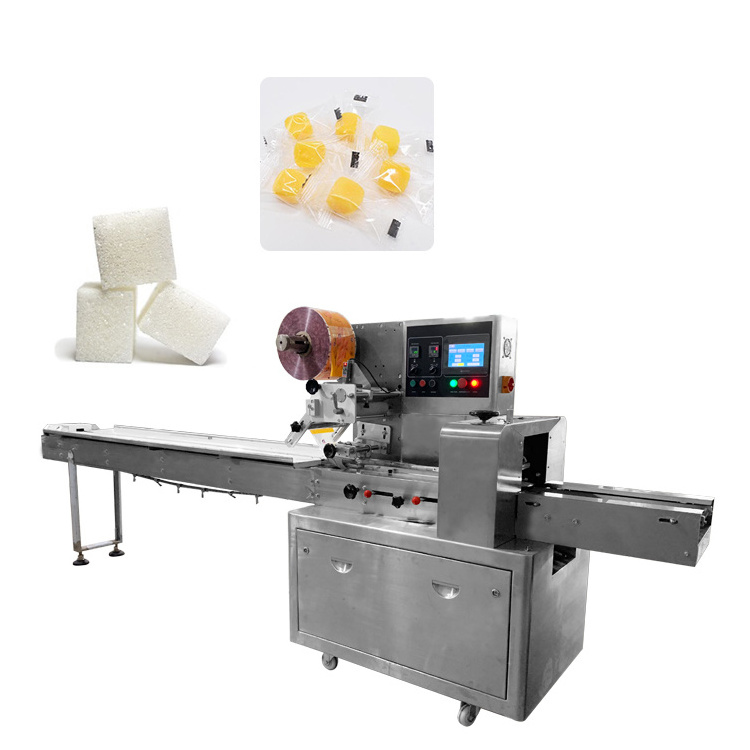

Automatic Single Or Multi Small Candy Wrapping Machine For Packing Cube Sugar Low Noise Level
Product Description
Product Application And Bag Type
Packaging various kind of regular objects like food,machine,daily appliances,metals,industrial parts,box,tray and etc.
Main Features
1
. Panasonic double transducer control, flexible
bag length cutting. Save time and film.
2. 7inch touch screen, easy operation and multiple language for choice.
3. Imported PLC system, machine performance is stable, convenient for parameters adjusting.
4. Self diagnosis failure function, machine error can be clearly displayed.
5. Separate PID temperature controller, suitable for various packing materials
6. High sensitivity optical photocell for eye mark tracking, digital input for cutting position.
7. Position stop function, no adhesive and no waste of membrane and protect cutting jaws.
8. Simple driving system, stable performance and convenient maintenance.
9. According to product, the input conveyor can use pusher, belt or film for transportation.
1st Step: Setting the parameters you want by touch sreccn
2nd tep: Put the material into the stainless conveyor
3rd Step: The stainless steel bag maker device willmake the bag shape
4th tep: The back sealing device will sealing the film together
5th tep: The cutting device will cut the bag automaticlly
6th Step: The belt product conveyor will send our the product
Technical Parameter
|
Model NO.
|
DS-250BD
|
DS-320BD
|
DS-350BD
|
DS-400BD
|
||
|
Filling Width
|
Max. 250mm
|
Max.320mm
|
Max. 350mm
|
Max. 400mm
|
||
|
Product Height
|
Max.40 / 55mm
|
Max.45 / 80mm
|
|
|
||
|
Bag Length
|
65-190 or 12
0-280mm / 90-220 or 150-330mm
|
|
|
130-320
/ 180-400mm
|
||
|
Packing
Speed
|
40-230
bags / min
|
|
|
30-180
bags / min
|
||
|
Machine
Weight
|
800KG
|
900KG
|
|
|
||
|
Machine S
ize
|
3770*670*1450mm
|
3770*720*1450
mm
|
3770*720*1450mm
|
4020*770*1450mm
|
||
|
Optional
Device
|
Date coder,
|
|
Air-filling device
|
|
||
Prod u Product Electrical Configuration
Our company
Company Introduction:
Foshan Dession Packaging Machinery Co.,Ltd is located in nanhai district, foshan,It is a collection of research, production, sales and after-sales service as one of the production-oriented enterprises.
Machines are widely used in food, articles for daily use, hardware industrial products, medical supplies, hotel one-time items, etc. Along with the continuous development of science and technology, the level of automatic packing machinel is higher, scope will be wider.
Cerfication
Our service
Pre-Sales Service
1.Inquiry and consulting support,professional packing solution for free.
2.Machine videos for your reference.
3.Sample testing support.
4.View our Factory.
After-sale Service
1. Manules /
Videos of machine installation, adjusting, setting, maintenance are available for you.
2. If any problems happend and you can not find out the solutions, Telecom or Online face to face communication available 24 hours.
3. DEssion engineers & technician are available send to your countries for services if you agree pay the expenditure.
4. The machine will have
1 year warranty of machine,2 years warranty of electric part.
During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you. The warranty will begin after the machine send out we received the B/L.
Packing&Delivery
Packing:
Packing Details : Standard Export Plywood Case.
Shipping&Payment:
1: T/T and Western Union are accepted.
2:30% deposit before production and 70% balance before shipment.
3: After receive the deposit,we will start to produce.
Usually 5-25 working days will finish(depend on customers requirements).
FAQ
Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
