Quick Details
-
Dimension(L*W*H):
-
1*1.93*1.82m
-
Weight:
-
530 KG
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
drilling rig machine
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
yes
-
Product name:
-
Drilling Rig
-
MOQ:
-
1 Set
Quick Details
-
Applicable Industries:
-
mining equipment
-
Place of Origin:
-
China
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
1*1.93*1.82m
-
Weight:
-
530 KG
-
Marketing Type:
-
Hot Product 2022
-
Core Components:
-
drilling rig machine
-
Drilling Depth:
-
Max.150m
-
Mobility:
-
yes
-
Product name:
-
Drilling Rig
-
MOQ:
-
1 Set
Product Description
This machine mainly used for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter
is 70-350mm, and drilling depth is 80-150m. It also can be used in small building piling, like farmhouse or factory and so on, the
drilling diameter can reach 300mm and depth less than 10m.

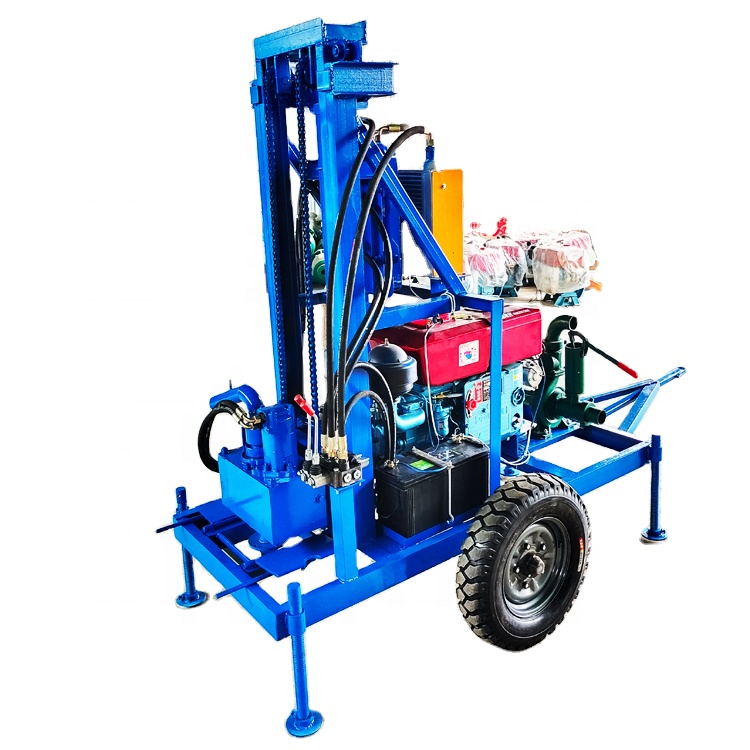

The structure of the diesel hydraulic drilling rig: 22 horsepower diesel engine, traction device, anti-skid tires, water pump,
hydraulic oil tank, hydraulic oil radiator, hydraulic control system, water pipe, drill pipe, drill bit, random tools, etc.,
suitable for various terrains. The machine is easy to use, simple to operate, fast in hole formation, low in noise, and extremely
easy to operate. It can be operated by a single person.
Features:
1. Light weight. The main engine is only weighted 150kg ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum with diamond bit, unless rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .
is 70-350mm, and drilling depth is 80-150m. It also can be used in small building piling, like farmhouse or factory and so on, the
drilling diameter can reach 300mm and depth less than 10m.
The structure of the diesel hydraulic drilling rig: 22 horsepower diesel engine, traction device, anti-skid tires, water pump,
hydraulic oil tank, hydraulic oil radiator, hydraulic control system, water pipe, drill pipe, drill bit, random tools, etc.,
suitable for various terrains. The machine is easy to use, simple to operate, fast in hole formation, low in noise, and extremely
easy to operate. It can be operated by a single person.
Features:
1. Light weight. The main engine is only weighted 150kg ;
2. Unique design and simple drilling structure;
3. Easy to transport and can learn how to handle the machine in short time;
4. Can drill through hard stratum with diamond bit, unless rock layer ;
5. Can drill deep. Equipped with raser, reduce the labor intensity ;
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area ;
7. Assure easily operation and long life span to save more labors and money for you;
8.The packing of the machine is wood box, the CBM is about 2.0m³, the total weight (complete set) is about 850KG .
|
Model
|
HR150D
|
|
|
|
Principle
|
Positive Cycle
|
|
|
|
Hydraulic Power
|
10Hp-Diesel Engine
|
|
|
|
Centrifugal Pump Power
|
8Hp-Diesel Engine
|
|
|
|
Max Drilling Depth
|
100m
|
|
|
|
Max Drilling Diameter
|
300mm
|
|
|
|
Drilling Pipe
|
51mm diameter, 1.5m/piece
|
|
|
|
Drilling Bit
|
Alloy Steel For Soil
|
one small bit (60mm,90mm) +one big bit (160-300mm)
|
|
|
|
PDC For Rocks
|
diameter should be less than 150mm
|
|
|
Other Parts For One Complete Machine
|
High pressure water pump-1 unit
|
|
|
|
|
High pressure water pipe-5m
|
|
|
|
|
Tools,seat,oil seal,English manual,Etc
|
|
|
|
Machine size
|
93cm * 70cm*180cm
|
|
|
|
Machine weight
|
530kg
|
|
|
|
Drilling method
|
rotary
|
|
|
|
Size unfolding height
|
2.5m
|
|
|
|
Drilling tools includes
|
Diesel engine, 150m rods, 2 3-wing bit, high pressure water pump,
|
|
|
|
|
5m water pipe, manual
|
|
|
