Quick Details
-
Marketing Type:
-
new product
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
25
-
Name:
-

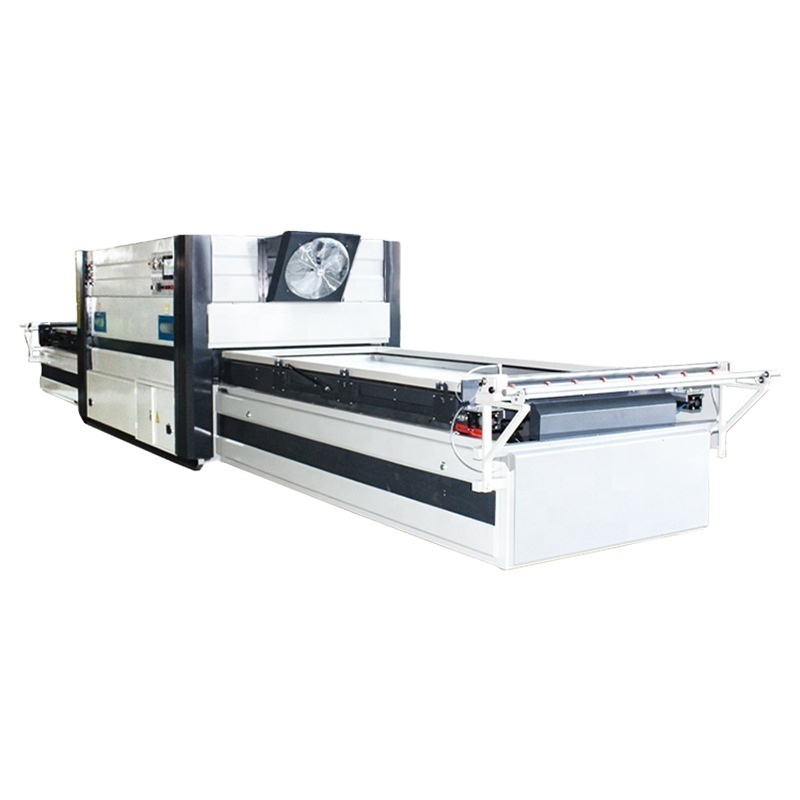

Vacuum Membrane Press Machine
-
Application:
-
Pvc
-
Type:
-
full-automatic
-
Table structure:
-
T-slot Table
-
Control system:
-
Nc-studio
-
Transmission:
-
Rack
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Feature:
-
Economic
-
Keywords:
-
machinery
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Guandiao
-
Machine Type:
-
Vacuum laminator press machine, vacuum membrane press machine
-
Marketing Type:
-
new product
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
25
-
Name:
-
Vacuum Membrane Press Machine
-
Application:
-
Pvc
-
Type:
-
full-automatic
-
Table structure:
-
T-slot Table
-
Control system:
-
Nc-studio
-
Transmission:
-
Rack
-
Guide rail:
-
Taiwan Hiwin Square Guide Rail
-
Feature:
-
Economic
-
Keywords:
-
machinery
Product Description
Machine Features
1.Adopting vacuum technology, double gas path, smooth gas performance, high success rate of workpiece.
2. The worktable adopts steel structure frame, which can effectively improve the vacuum degree and is durable.
3.Exchange type worktable, can carry out a box of multi film work, to achieve a multi-purpose efficient work.
3.Exchange type worktable, can carry out a box of multi film work, to achieve a multi-purpose efficient work.
wooden industrial home laminator various PVC filmes lamination cutting large laminating machine
Specification
|
Mode
|
TM2480C-2 (Semi-auto)
|
|
|
TM2480B-2(Full-auto)
|
||
|
Machine size
|
6000*1500*1400mm
|
|
|
9000*1600*1400mm
|
||
|
Working size
|
2550*1100
|
|
|
2550*1300mm
|
||
|
Maximum plate size
|
50mm
|
|
|
50mm
|
||
|
Air pressure
|
-0.1Mpa
|
|
|
-0.1Mpa
|
||
|
Max Working Height
|
50mm(optional)
|
|
|
50mm(optional)
|
||
|
Total power
|
20kw
|
|
|
25kw
|
||
|
Actual consume
|
5kw
|
|
|
5kw
|
||
|
GW
|
1200kg
|
|
|
1500kg
|
||
1.
The machine adopts highstress steel structure, ensurethe equipment running smoothly,transport moreat ease. High sealing, so asto improve the processingefficiency ofequipment.
2.
Adopt the international advanced constanttemperature heating system, avoid the heatofthe heat caused byuneven, wrinkling andother phenomena.
3.
The device uses thecontact point switch,electric control system, thekey components of high temperature insulation material made of,operation more secure.
Digital display button control, convenient and safe operation..
Increased strength and long service life..
The bed is made of steel plate structure.
Optional vacuum pump, faster vacuum formation and higher pumping speed
Application
This machine can be used to paste PVC on furniture, cabinets, speakers, relief doors, decoration panels for walls and other abnormal decoration shapes.
Application material and industry PVC film MDF board, Plywood, board, and other wooden materials with breathable It is applicable to cover furniture, sound box, cabinets, relief door, decorative panels and all kinds of baroque decorative surfaces with PVC films and natural veneer and hot stamping foils.
Application material and industry PVC film MDF board, Plywood, board, and other wooden materials with breathable It is applicable to cover furniture, sound box, cabinets, relief door, decorative panels and all kinds of baroque decorative surfaces with PVC films and natural veneer and hot stamping foils.
Our Service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
If you have any questions about our products, please contact me with no hesitate.
