Bluesun Solar, as one of the top solar integrated solution provider in China, is a high-tech manufacturer specializing in R&D of solar panels, lithium battery and ESS.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 years
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM550M10-72HBD
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2285*1134*35mm
-
Max Power Voltage (Vmpp) [V]:
-
41.96v
-

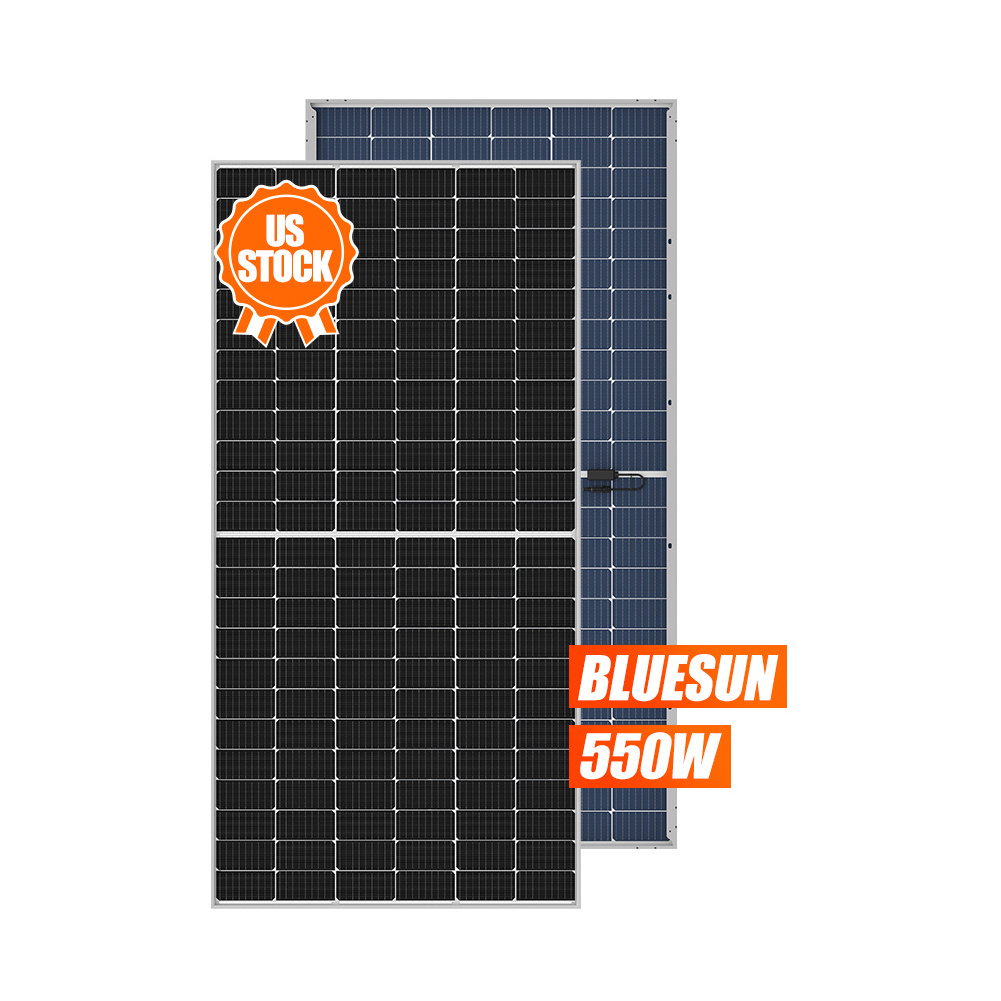

Product name:
-
550w Sola Panel
-
Application:
-
Solar Energy System
-
Solar cell:
-
A-grade
-
Weight:
-
32.2kg
-
Open Circuit Voltage (Voc) [V]:
-
49.92v
-
Packing Configuration (for USA):
-
31pcs/carton, 558pcs/40hq
-
Junction Box:
-
IP68
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
CE TUV UL
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black
-
Panel Efficiency:
-
21.2%
-
Warranty:
-
30 years
-
Brand Name:
-
Bluesun
-
Model Number:
-
BSM550M10-72HBD
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2285*1134*35mm
-
Max Power Voltage (Vmpp) [V]:
-
41.96v
-
Product name:
-
550w Sola Panel
-
Application:
-
Solar Energy System
-
Solar cell:
-
A-grade
-
Weight:
-
32.2kg
-
Open Circuit Voltage (Voc) [V]:
-
49.92v
-
Packing Configuration (for USA):
-
31pcs/carton, 558pcs/40hq
-
Junction Box:
-
IP68
-
Frame:
-
Anodized Aluminium Alloy
-
Certificate:
-
CE TUV UL
Products Description
|
Module Type
|
BSM530M10-72HBD
|
BSM535M10-72HBD
|
BSM540M10-72HBD
|
BSM545M10-72HBD
|
BSM550M10-72HBD
|
|||||
|
Maximum Power(Pmax/W)
|
530
|
535
|
540
|
545
|
550
|
|||||
|
Operating Voltage(Vmpp/V)
|
41.32
|
41.48
|
41.64
|
41.8
|
41.96
|
|||||
|
Operating Current(Impp/A)
|
12.83
|
12.9
|
12.97
|
13.04
|
13.11
|
|||||
|
Open-Circuit Voltage(Voc/V)
|
49.32
|
49.46
|
49.6
|
49.76
|
49.92
|
|||||
|
Short-Circuit Current(Isc/A)
|
13.72
|
13.79
|
13.86
|
13.93
|
14
|
|||||
|
Module Efficiency(%)
|
20.5
|
20.6
|
20.8
|
21
|
21.2
|
|||||
|
STC: Iradiance 1000W/m²,Cell Temperature 25°C, Air Mass AM1.5 ;
|
|
|
|
|
|
|||||
|
|
|
|
|
|
||||||
Certifications
Product Process
Packing & Delivery
Packing Configuration :
31pcs/carton, 620pcs/40hq
Our Company
Global Exhibitions
INTERSOLAR EUROPE
INTERSOLAR MEXICO
THE FUTURE ENERGY SHOW PHILIPPINES
RE+
Solar Solutions -Kortrijk
Solar PV & Energy Storage Expo
Bluesun Projects
Bluesun‘s export volume is as high as 22GW, with projects in more than 185 countries around.
Configuration：425W Solar Panel EU Stock
Installation site：Croatia
Installation time：March 2023
Installation time：March 2023
Configuration：440W Black Frame Shingled Solar Panel
Installation site：Sweden Gothenburg
Installation time：September 2023
Installation time：September 2023
Configuration：Energy Storage with 700W Double Glass Shingled Solar Panel
Installation site：U.K.
Installation time：July 2023
Installation time：July 2023
Payment
|
PaymentTerm
|
T/T
|
EXW
|
30%T/Tin advance， paid the balance beforeshipment
|
|
||
|
|
|
FOB
|
|
|
||
|
|
|
CFR(C&F)
|
30%T/Tin advance， paid the balance againstcopy of B/L
|
|
||
|
|
|
CIF
|
|
|
||
|
|
L/C
|
L/C amount above 50， 000usd， we can accept L/Cat sight
|
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
|
||
|
|
West Union
|
|
|
|
||
|
Delivery Time
|
7~ 10 days after receiving payment for one container
|
|
|
|
||
