Quick Details
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIAOHAN
-
Voltage:
-
220V 380V/50Hz
-
Dimension(L*W*H):
-
According to the design
-
Power (kW):
-
5 kW
-
Core Components:
-
According to product design
-
Product name:
-
100L Cosmetic Cream Extraction Machine Emulsifying Mixer
-
Heating Method:
-
electric heating
-
Homogenizer Speed(rpm):
-
2800
-
Advantage:
-
High quality and long service life
-
design pressure:
-
0.2MPa
-
Thermal insulation cotton:
-
Expanded perlite
-
After-sales Service Provided:
-
Online support
Quick Details
-
Barrel Volume (L):
-
120 L
-
Max. Loading Volume (L):
-
100 L
-
Range of Spindle Speed(r.p.m):
-
10 - 2800 r.p.m
-
Weight (KG):
-
600 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XIAOHAN
-
Voltage:
-
220V 380V/50Hz
-
Dimension(L*W*H):
-
According to the design
-
Power (kW):
-
5 kW
-
Core Components:
-
According to product design
-
Product name:
-
100L Cosmetic Cream Extraction Machine Emulsifying Mixer
-
Heating Method:
-
electric heating
-
Homogenizer Speed(rpm):
-
2800
-
Advantage:
-
High quality and long service life
-
design pressure:
-
0.2MPa
-
Thermal insulation cotton:
-
Expanded perlite
-
After-sales Service Provided:
-
Online support
Commercial 100L Cosmetic Cream Extraction Machine Emulsifying Mixer
Industrial emulsifier chemical vacuum blender machine means that when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distributeone or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect. By the operation of hydraulic sheraing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
Parameter reference
|
100l Homogenizer |
|
|
Main pot |
Total volume: 120L, working volume: 100L |
|
1. inner pot |
316L stainless steel |
|
2. stir paddle,stir axis |
316L stainless steel, frame scraping stirring, mechanical seal for reaction kettle |
|
3. Mixing motor |
Power: 2kw |
|
4. homogenizer |
316L stainless steel, 2800r / min, high speed mechanical seal |
|
5. Homogeneous motor |
Power 11kw |
|
6. jacket |
Stainless steel |
|
7. shell |
316L stainless steel |
|
8. lid |
316L stainless stee |
|
9. Heating |
Steam heating, design pressure 0.2MPa, service pressure ≤ 0.1MPa |
|
Process pipeline and valve |
Stainless steel |
|
Equipped with one 50L oil bath and one 50L water bath |
|
Application area
1. Daily Chemical & Cosmetics Industry:
such as baby cream, face cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc.;
2. Food Industry:
such as sauce, cheese, chocolate, cake gel, tomato paste etc;
3. Chemical Industry:
for chemicals mixing, heating, emulsifying, homgenizing etc.
Working principle
Precision fit of rotor and stator, claw structure of working head (rotor and stator forging manufacturing), bidirectional suction, high shear efficiency.
The intermittent high shear dispersive emulsifying homogenizer is a high-speed and stable rotation of the rotor to form high-frequency, strong peripheral tangent velocity, angular velocity and other comprehensive kinetic energy Efficiency: under the action of stator, strong and reciprocating hydraulic shear, friction, centrifugal extrusion, liquid flow collision and other comprehensive effects are formed in the reasonably narrow gap between stator and rotor. The materials work in the container repeatedly and above, and finally the products are obtained.

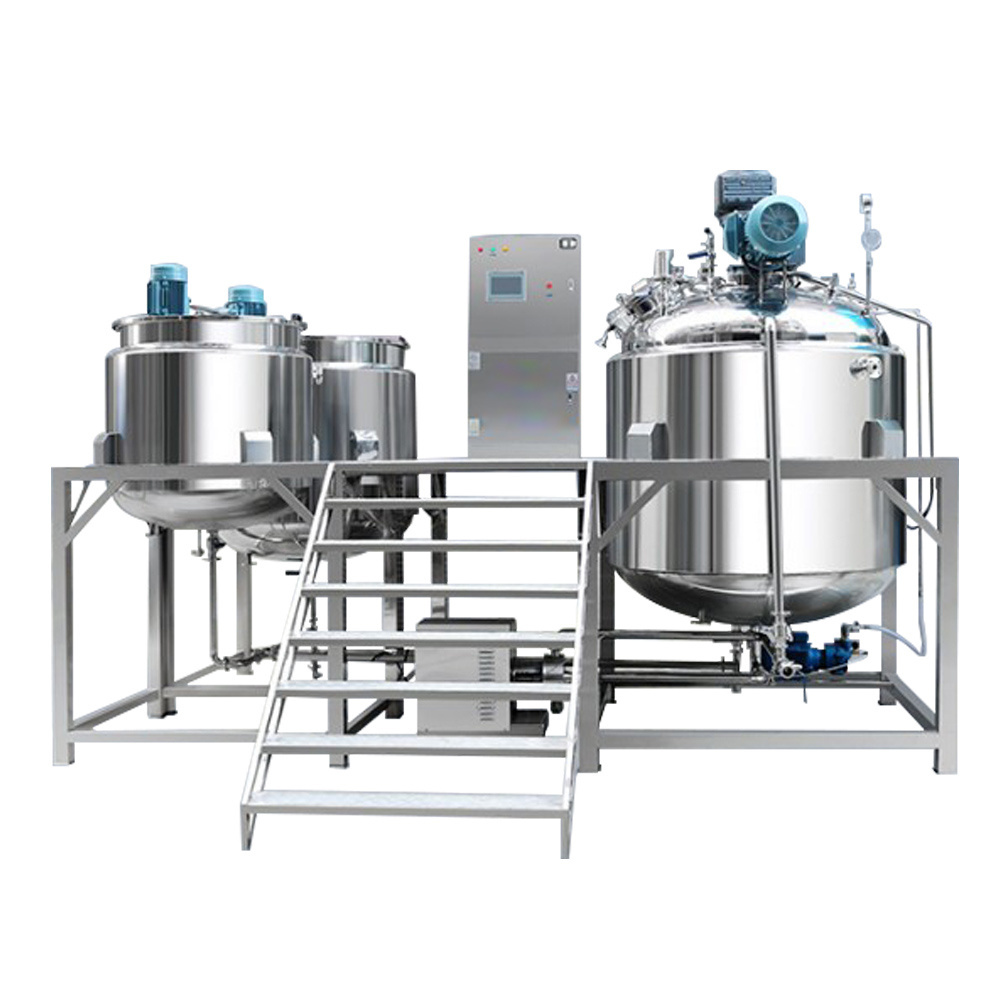

Reference picture
