Quick Details
-
Drill Diameter:
-
6-12mm(1/4"-1/2")
-
Place of Origin:
-
Jiangsu,China, China
-
Brand Name:
-
Yishou
-
Voltage:
-
220V/110V
-
Power:
-
375W
-
Dimension(L*W*H):
-
570*310*280mm, 570*310*280 mm
-
Weight (KG):
-
27
-
Key words:
-
High Productivity
-
Chisel to Table(max.):
-
110mm
-
After-sales Service Provided:
-
Online support
Quick Details
-
Application:
-
Woodworking, Woodworking
-
Motor Speed:
-
1400rpm, 1400RPM
-
Marketing Type:
-
Hot Product 2023
-
Drill Diameter:
-
6-12mm(1/4"-1/2")
-
Place of Origin:
-
Jiangsu,China, China
-
Brand Name:
-
Yishou
-
Voltage:
-
220V/110V
-
Power:
-
375W
-
Dimension(L*W*H):
-
570*310*280mm, 570*310*280 mm
-
Weight (KG):
-
27
-
Key words:
-
High Productivity
-
Chisel to Table(max.):
-
110mm
-
After-sales Service Provided:
-
Online support
Products Description

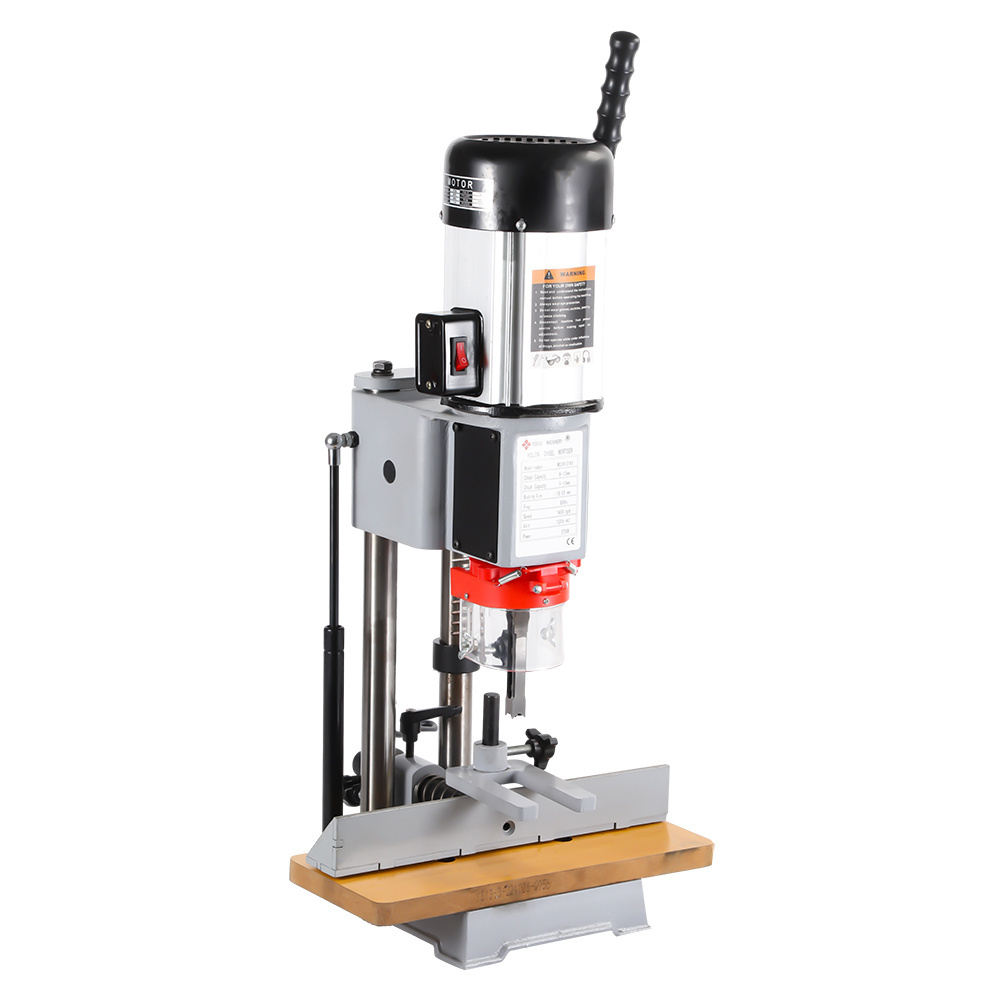

Identification (MS-36127A3)
Become familiar with the names and locations of the controls and features shown below to better understand this machine
|
Specification
|
|
|
|
Model
|
MS36127A3/MS36127CE
|
|
|
Chisel Capacity
|
6-12mm(1/4"-1/2")
|
|
|
Max.Mortising Depth
|
70mm(2.75")
|
|
|
Drill Chuck Capacity
|
1-13mm
|
|
|
Chisel to Table(max.)
|
110mm
|
|
|
Chisel to Fence(max.)
|
50mm
|
|
|
Bushing Size
|
19.05mm
|
|
|
Over Height
|
700-800mm
|
|
|
Motor(Input)
|
370W(550W)
|
|
|
Spindle Speed
|
1400(2800)RPM
|
|
|
Packing Size&G.W/N.W.
|
570×310×280mm 27/25kg
|
|
Product Details
On/off switch, with 375W AC motor, 1400RPM can affort a high torque for woodworking
Insert the chisel into the chisel bushing and tighten the set screw, inset the bit in to the drill chuck and tighten the bit with chuck key
the handle lever can be adjustable by tightening or loosening the set screw
the depth stop sleeve can be move up and down
by the adjustment of the plum handle screw
The hold-down clamp connect to the vertical guide shaft,can move up and down by the adjustment of the plum handle screw
The guide column can move forward and backward by the adjustment of the plum handle screw
Product Processing
Laser Cutting
Rough Milling
Finish Milling
Welding
Sanding
Assembly
