Quick Details
-
Brand Name:
-
AMIS
-
Model Number:
-
AM-048
-
Quality Certification:
-
ce,ios
-
Type:
-
Medical ultrasound instruments
-
Operating System:
-
Android
-
Image Format:
-
JPEG, DICOM
-
Grayscale:
-
256 level
-
Cine-loop:
-
1024 Frames
-
Probe Type:
-
128 elements
-
Monitor:
-
6 inch LCD high-resolution (1280*720) full touch screen
-
Frequency:
-
Convex array 2-5MHZ / Linear array 5-10MHZ
-
Color Doppler:
-
Gain, Steer, PRF, WF etc
-
Gain Convex:
-
0~150dB adjustable
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AMIS
-
Model Number:
-
AM-048
-
Quality Certification:
-
ce,ios
-
Type:
-
Medical ultrasound instruments
-
Operating System:
-
Android
-
Image Format:
-
JPEG, DICOM
-
Grayscale:
-
256 level
-
Cine-loop:
-
1024 Frames
-
Probe Type:
-
128 elements
-
Monitor:
-
6 inch LCD high-resolution (1280*720) full touch screen
-
Frequency:
-
Convex array 2-5MHZ / Linear array 5-10MHZ
-
Color Doppler:
-
Gain, Steer, PRF, WF etc
-
Gain Convex:
-
0~150dB adjustable
Product Display
Features

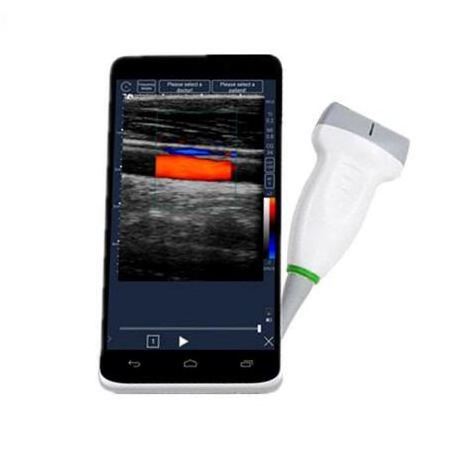

6inch touch screen portable color ultrasound
(Linear Transducer/ Convex Transducer)
Product Details
|
Technical specifications
|
|
|
|
Product Description
|
Handheld UItrasound Scanner
|
|
|
Monitor
|
6 inch LCD high-resolution(1280*720)full touch screen
|
|
|
Probe Type
|
128 elements
|
|
|
Frequency
|
convex array 2-5MHZ/ Linear array 5-10MHZ
|
|
|
imaging Mode
|
B,C,M,PW,Steer
|
|
|
Color Doppler
|
Gain,Steer,PRF,WF etc
|
|
|
Cine-loop
|
1024 Frames
|
|
|
Frame Rate
|
Convex:16fps /Linear:24ps
|
|
|
Depth
|
Convex:≤200mm / Linear:≤70mm
|
|
|
Grayscale
|
256 level
|
|
|
Gain
|
Convex:0~150dB adjustable Linear:0~120dB adjustable
|
|
|
Image Processing
|
Line smoothing,Frame smoothing,Transversal filter, Longitudinal filter,Sharpening,Gamma transformation,etc
|
|
|
Power
|
Built-in battery(5400mAh)to support 2h for continuous scanning
|
|
|
Image Format
|
JPEG,DICOM
|
|
|
Language
|
Over 60 different language including English,Spanish, German,Russia,Portuguese,Turkish,Polish,Italian etc
|
|
|
Measurement
|
Length,Area,Arrow,Angle,Perimeter,Text
|
|
|
Camera
|
5M auto focus
|
|
|
Wireless Connection
|
WIFI, BLUETOOTH,3G/4G(LTE,WCDMAVEDGE/GPRS/GSM)
|
|
|
Memory
|
64GB
|
|
|
Connection Interface
|
Micro USB2.0,HDMI,3.5mm headphone jack
|
|
|
Operating System
|
Android
|
|
|
File Management
|
Patient file & image file
|
|
|
Cloud
|
cloud image storage,cloud file management,standard APl& SDK interface,Information sharing platform
|
|
|
Technical Training
|
Online and offline tutorial,self-built online training material
|
|
|
Remote Software Update
|
Yes
|
|
|
Product Size
|
165*85*23mm
|
|
|
Net Weight
|
convex:570g/ Linear:550g
|
|
|
|
Main unit(Monitor and 1pc Transducer included):1set
|
|
|
|
USB wire:1pc
|
|
|
|
Adapter:1pc
|
|
|
|
Carrying bag:1pc
|
|
