Quick Details
-
Control System Brand:
-
Topwisdom
-
Cutting Thickness:
-
30mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Redsail
-
Weight (KG):
-
400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Work area:
-
1000*600mm
-
Certification:
-
ce
-
Control system:
-
Topwisdom
-
Max thickness:
-
30mm
-
Laser tube type:
-
Co2 Glass sealed laser tube
-
Laser power:
-
80W 100W optional
-
Driver type:
-
Micro Stepping Motor
-
Max speed:
-
1000 mm/s
-
Resolution:
-
2500 DPI
Quick Details
-
Laser Type:
-
CO2
-
Cutting Speed:
-
1000mm/s
-
Cooling Mode:
-
WATER COOLING
-
Control System Brand:
-
Topwisdom
-
Cutting Thickness:
-
30mm
-
Control Software:
-
Autolaser
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Redsail
-
Weight (KG):
-
400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Work area:
-
1000*600mm
-
Certification:
-
ce
-
Control system:
-
Topwisdom
-
Max thickness:
-
30mm
-
Laser tube type:
-
Co2 Glass sealed laser tube
-
Laser power:
-
80W 100W optional
-
Driver type:
-
Micro Stepping Motor
-
Max speed:
-
1000 mm/s
-
Resolution:
-
2500 DPI

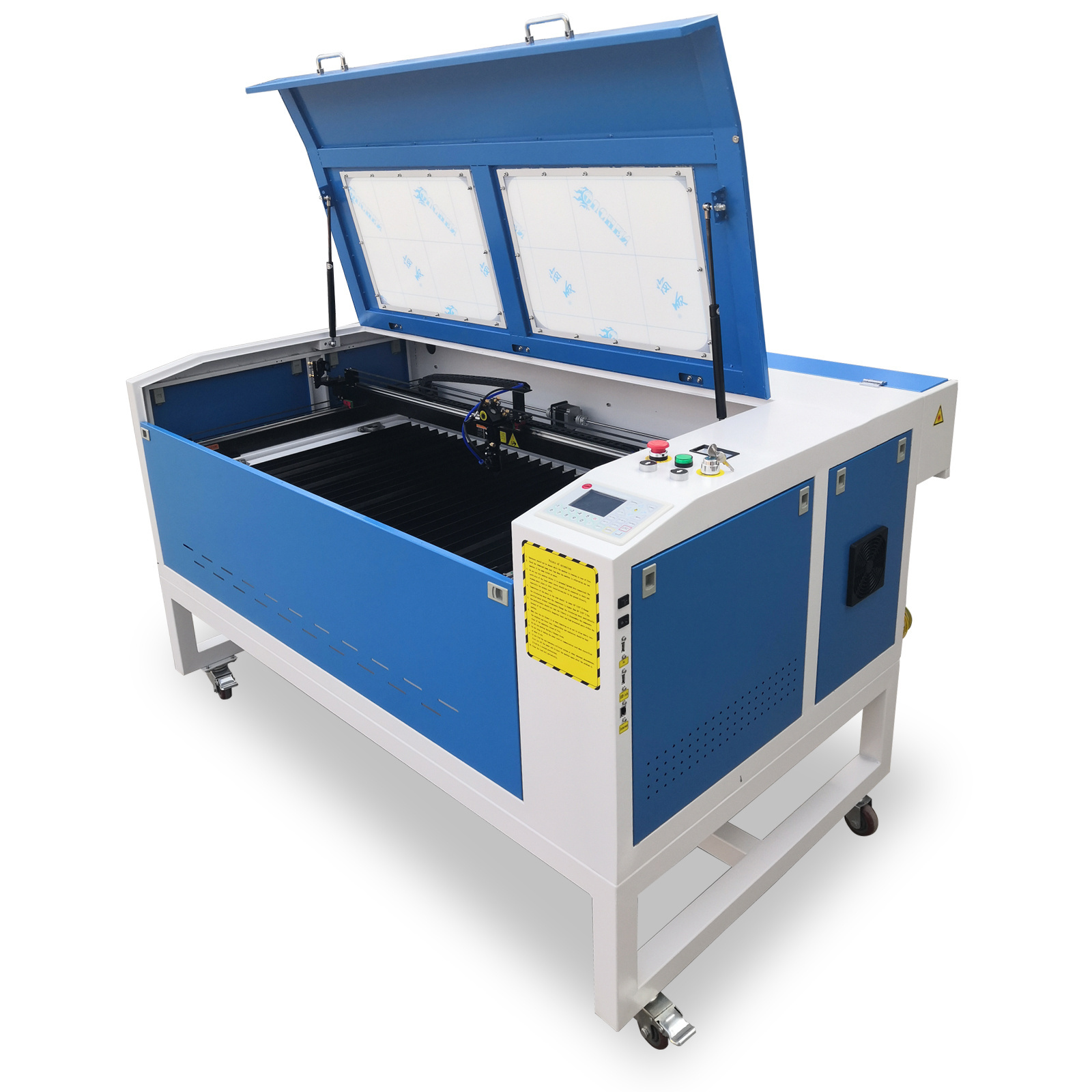

Low Cost CNC Plastic Laser Cutting Machine for wood acrylic leather foam etc.
Specification
|
Model
|
X900C
|
|
Laser tube
|
Water cooling Co2 sealed glass
|
|
Control system
|
Topwisdom
|
|
Drive type
|
Micro Stepping Motor
|
|
Laser Power
|
80W
|
|
Work Area (mm)
|
1000*600
|
|
Max speed
|
1000 mm/s
|
|
Resolution
|
2500 DPI
|
|
Image form
|
Plt, Dxf, Bmp, Ai, Dst
|
|
PC Interface
|
USB2.0/ USB Disk/NetWork
|
|
Location precision
|
<0.01mm
|
|
Motorized Up and Down table
|
200mm
|
|
Power
|
110V or 220-240V/ 50-60Hz
|
|
Machine Dimension
|
1600X1040X983mm
|
|
Package Dimension
|
1700x1150x1080mm
|
|
N.W. (Kg)
|
240KG
|
|
G. W. (Kg)
|
270KG
|
Standard Accessories
(01) Laser Engraving software Package(English Version)
(02) User Manual(CD)
(03) Industry water cooling system(Chiller)
(04) Air exhaust fan
(05) Air Pump
(06) Communication cable
(07) 3 Reflect optics(installed in the machine)
(08) 1 Focus optics(installed in the machine)
(09) 1 Laser tube
(10) Other tools
(02) User Manual(CD)
(03) Industry water cooling system(Chiller)
(04) Air exhaust fan
(05) Air Pump
(06) Communication cable
(07) 3 Reflect optics(installed in the machine)
(08) 1 Focus optics(installed in the machine)
(09) 1 Laser tube
(10) Other tools
Optional Accessories
(01) Rotary attachment
(02) Beam combiner replace red dot
(03) Laser tube of high power(RECI W2/RECI W4/RECIW6/S7)
(04) Honey comb platform
(05) Water chiller(CW-3000 CW-5000)
(06) Ruida control system
(07) Ground wire and magnetic induction switch
(02) Beam combiner replace red dot
(03) Laser tube of high power(RECI W2/RECI W4/RECIW6/S7)
(04) Honey comb platform
(05) Water chiller(CW-3000 CW-5000)
(06) Ruida control system
(07) Ground wire and magnetic induction switch
Details
Sample
Non-metal materials such as double color board, acrylic glass, bamboo and wood, rubber, marble, granite and tiles, leather etc.
Packing & Delivery
1.EXW-Factory or delivery to your China warehouse
2.FOB----The nearest port is Qingdao port,and we can also delivery the machine to other port according to your request.
3.CIF-------Please tell me what’s the destination port when you need CIF price.
4.If you need others, please tell me and I’m pleasure to do for you.
2.FOB----The nearest port is Qingdao port,and we can also delivery the machine to other port according to your request.
3.CIF-------Please tell me what’s the destination port when you need CIF price.
4.If you need others, please tell me and I’m pleasure to do for you.
