Quick Details
-
Weight:
-
7
-
Dimension(L*W*H):
-
128*125*118mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE/ISO
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
PIONEER
-
Place of Origin:
-
Zhejiang, China
-
Weight:
-
7
-
Dimension(L*W*H):
-
128*125*118mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE/ISO
Products Description
|
Product Name
|

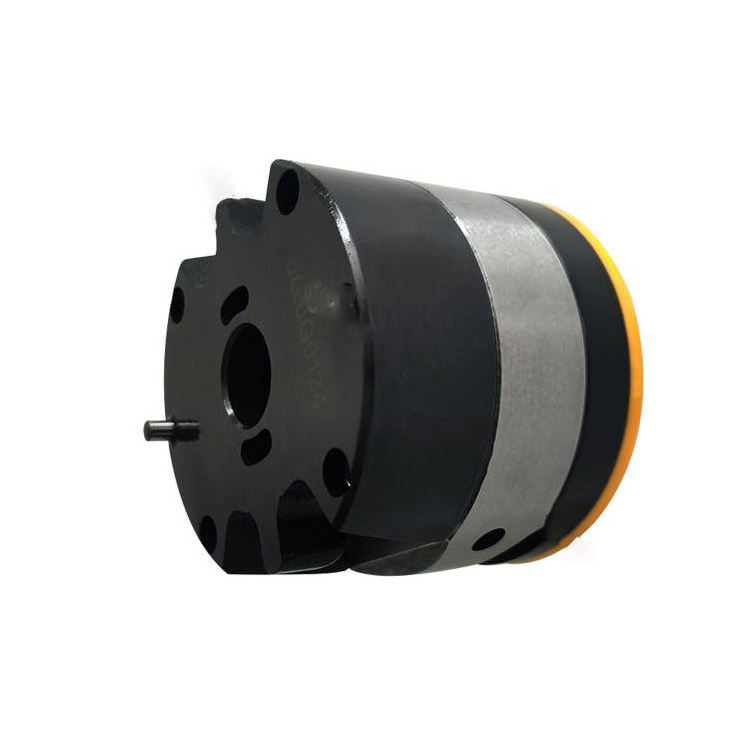

V cartridge
|
|
|
|
|||
|
Function
|
It is the vane which is in the rotor groove and the pump shell (Camring) connection, the suction of the liquid from the inlet to
outlet |
|
|
|
|||
|
Features
|
1).Intravane for V complete pump;
2).Twelve vane system provide low amplitude flow pulsation resulting in low system nosie
characterisitics |
|
|
|
|||
|
Application
|
V Series complete pump
|
|
|
|
|||
|
|
Max Pressure(Bars)
|
Max Flow(L/min)
|
Max.Speed(rmp)
|
Weight (kg)
|
|
20V Cartridge
|
172
|
79.5
|
1800
|
2.3
|
|
25V Cartridge
|
172
|
117
|
1800
|
3.8
|
|
35V Cartridge
|
172
|
252
|
1800
|
6.4
|
|
45V Cartridge
|
172
|
426
|
1800
|
10.1
|
