Quick Details
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Henan, China
-
Weight:
-
2950 kg, 2950KG
-
Dimension(L*W*H):
-
3.7m*2m*2.6m
-
Marketing Type:
-
New Product 2024
-
Product name:
-
concrete mixer with pump
-
Application:
-
Construction Industry
-
Drive method:
-
Hydraulic Double Cylinder
-
Model:
-
ZSM50 ZSM55
-
Size:
-
3.7M*2M*2.6M
-
Delivery Pressure:
-
18mpa/5mpa
-
Capacity:
-
10-30m3/H
-
Concrete pump type:
-
Diesel Motor Concrete Pump Machine
-
Diameter of delivery pipe:
-
100/125mm
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
110M
-
Max. horizontal conveying distance:
-
200M
-
Productivity:
-
25M³/H
-
Place of Origin:
-
Henan, China
-
Weight:
-
2950 kg, 2950KG
-
Dimension(L*W*H):
-
3.7m*2m*2.6m
-
Marketing Type:
-
New Product 2024
-
Product name:
-
concrete mixer with pump
-
Application:
-
Construction Industry
-
Drive method:
-
Hydraulic Double Cylinder
-
Model:
-
ZSM50 ZSM55
-
Size:
-
3.7M*2M*2.6M
-
Delivery Pressure:
-
18mpa/5mpa
-
Capacity:
-
10-30m3/H
-
Concrete pump type:
-
Diesel Motor Concrete Pump Machine
-
Diameter of delivery pipe:
-
100/125mm
Product Description

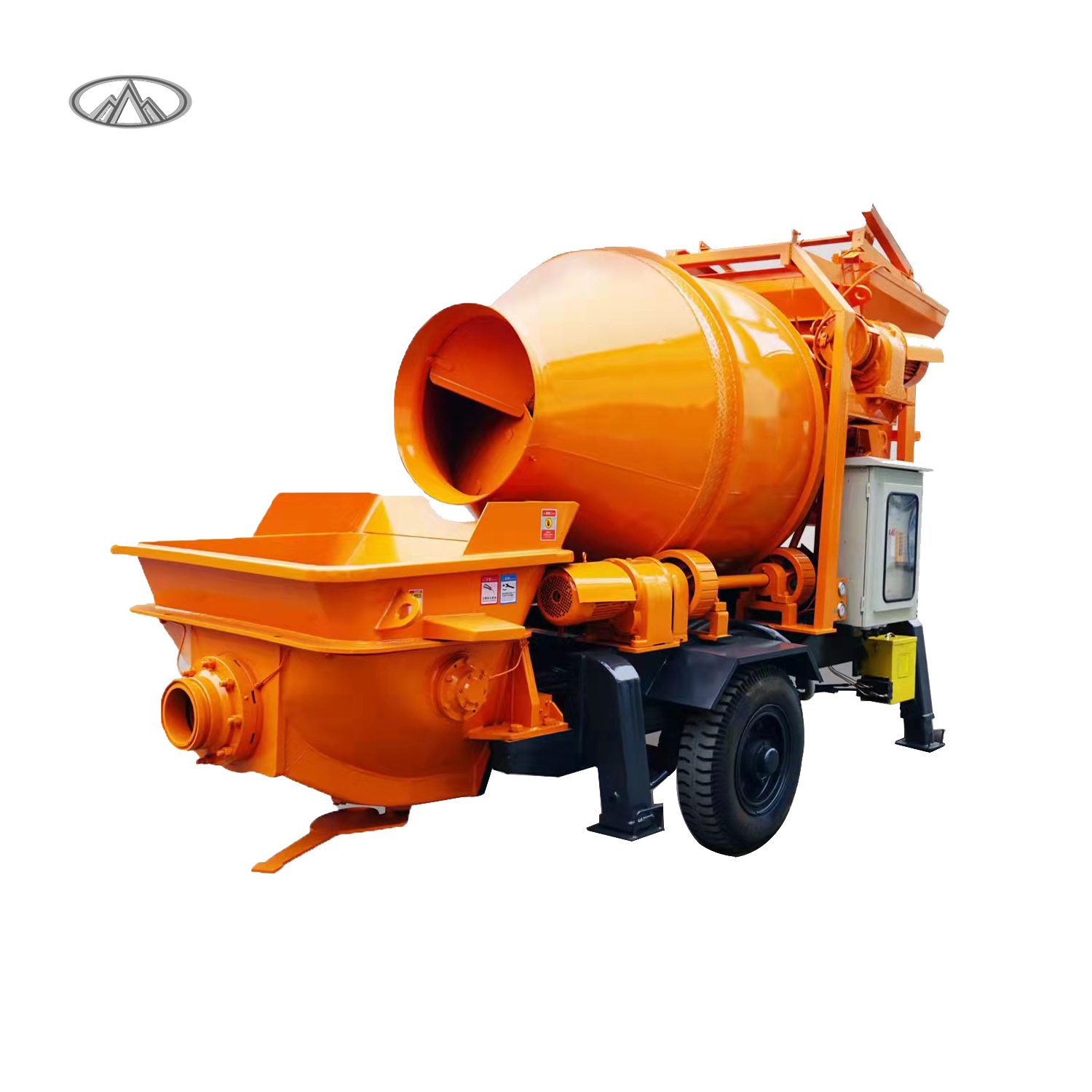

Diesel Engine Concrete Mixer With Pump
Concrete mixing and pumping integrated machine is suitable for conveying large aggregate concrete such as foundation piling, including: rural civil construction, township and new rural construction, highway and railway tunnel construction, etc.; water conservancy and hydropower engineering; geological disaster slope management; Construction characteristics such as large amount of concrete pouring or narrow space such as foundation irrigation.
Specification
|
Model
|
ZSM50
|
ZSM55
|
ZSM55-DIESEL
|
|
Mixer type
|
350
|
500
|
500
|
|
Diemensions
|
3.7M*2M*2.6M
|
4.0M*2.1M*2.6M
|
4.9M*2.1M*2.5M
|
|
Mix rate
|
8-14M*3/H
|
10-16M*3/H
|
8-14M*3/H
|
|
Power
|
51.7KW
|
55KW
|
15HP
|
|
Weight
|
2950KG
|
3100KG
|
3900KG
|
|
Aggregate diameter
|
30MM
|
30MM
|
30MM
|
|
Conveying height
|
50-110M
|
80-110MM
|
60-110MM
|
|
Conveying length
|
100-200M
|
170-240M
|
100-240MM
|
|
Pipe diameter
|
100/120MM
|
100/120MM
|
100/120MM
|
|
Conveying rate
|
15-25M*3/H
|
25-35M*3/H
|
18-25M*3/H
|
