Quick Details
-
Place of Origin:
-
Guangdong, China
-
Color:
-
Black
-
Oil/oil needle:
-
mineral oil/ Bh59
-
Net weight:
-
Front about 299g, Rear about 316g
-
Mounting:
-
Both 51 mm IS & 74mm post mounting
-
Caliper:
-
Forging aluminum body
-
About Rotor:
-
compatible 140/160/180/203mm rotor.
-
About Rotor 1:
-
calipers original with 160mm/180mm rotor
Quick Details
-
Size:
-
Front 800mm hose, Rear 1400mm hose
-
Brand Name:
-
ZTTO
-
Model Number:
-
G55
-
Place of Origin:
-
Guangdong, China
-
Color:
-
Black
-
Oil/oil needle:
-
mineral oil/ Bh59
-
Net weight:
-
Front about 299g, Rear about 316g
-
Mounting:
-
Both 51 mm IS & 74mm post mounting
-
Caliper:
-
Forging aluminum body
-
About Rotor:
-
compatible 140/160/180/203mm rotor.
-
About Rotor 1:
-
calipers original with 160mm/180mm rotor

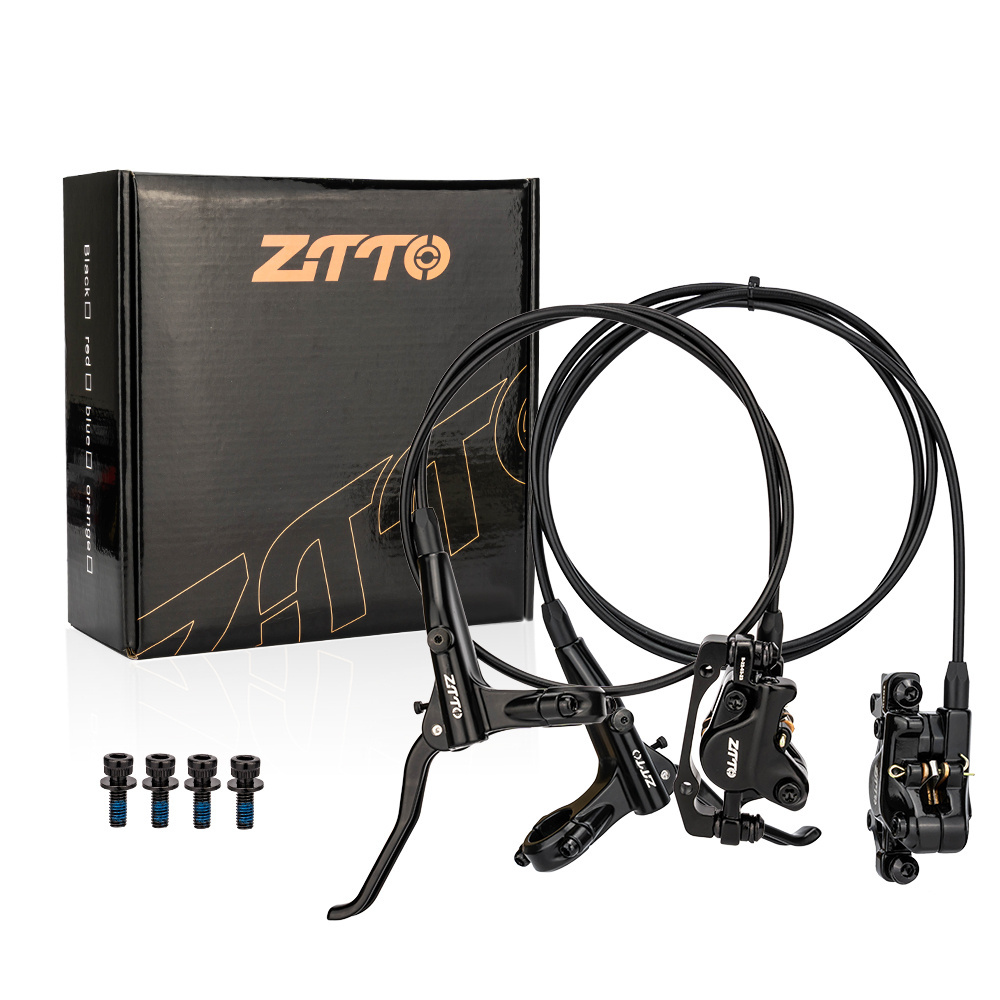

ZTTO G55 MTB Hydraulic Brake
About brake specification and advantages.
| Item | Value |
| Name | G55 MTB Hydraulic Brake |
| Material | Aluminum alloy + PE HOSE |
| Net weight | Front about 344g, Rear about 361g |
| About brake hose, post mounting |
Both 51 mm IS & 74mm post mounting, Front 800mm hose, Rear 1400mm hose |
| About caliper | Forging aluminum body |
| About Rotor |
Caliper compatible φ 140/160/180/203mm rotor. calipers original with 160mm/180mm rotor, please check the options. |
More details is below.
Options :
1.
ZTTO G55 Brake For 1 Pair( Left and Right together)
Advantage:
Free Traval Adjustablt
There is a screw on front of the brake, It not only adjusts the distance of the brake lever, it also truly adjusts the position of the pads, you can easily adjust the brake to the traval length you like, you may have to spend hundreds of dollars to get this feature in other brands. This is my favorite feature of brake, And its effect is very obvious, unlike some brand.
Metal main piston& sub piston
Pistons are made of high-quality metal. It fundamentally eliminates the possibility of piston chipping,also has super durability.
Pad Model Same with M975 but No Shaking
If you have used old brakes, you know that when you hold the brake lever and push the body forward and backward, the brake pads will move and make noise. This is a very annoying problem. Of course we have solved it, so don't worry, use the old type of pads is not a problem, it makes you easy to find replacement pads, and we will always sell this type of pads.
Original Full Metal Pads
There are many benefits of full metal pads, greater braking force, stronger heat resistance, stable braking force regardless of sunny or rainy days,But because it is harder, it takes a period of running-in before it can work normally. At the beginning, the braking force is small which is normal, it will get bigger and bigger. And a slight braking sound is normal for metal pads.
Brake lever anti-slip design
Small pit on the brake lever allows you to keep your grip while sweating. The width of the brake lever allows you to use one or two fingers to control. I think you can feel how serious we are to manufacture this brake from these details. This is our third MTB disc brake. It has absorbed many users’ suggestions. Thank you for always supporting ztto.
Fit for IS and PM
ZTTO Cylinder Ratio and Brake Linearity
The G55 brake equired strength is small, in the long downhill, fingers and arms are not easy to feel tired.Brake performance is not affected by weather changes, still stable, not easy to be affected by soil or rain.
We Recommend Using 180mm Rotor
As everyone changes to 29-inch wheels and the difficulty of riding becomes more and more difficult, we think that 180mm discs are very beneficial. With 180/203mm discs, you can even use this brake to AM/ENDURO.
Weight
If you want customized services, pleas contact us.
