Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
360*360*736mm
-
Weight:
-
36 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor:
-
Vertical Vibrating Motor
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Color:
-
Optional
-
Usage:
-
Vibrating testing machine
-
Function:
-
sieving, screening, grading
-
Layer:
-
1~8
-
Noise:
-
≤50dB
-
Using scope:
-
Chemicals, food processing
-
Certification:
-
ISO9001:2008
Quick Details
-
Type:
-
Circular
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Xianchen
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
360*360*736mm
-
Weight:
-
36 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Motor:
-
Vertical Vibrating Motor
-
Material:
-
Carbon Steel/ Stainless Steel 304
-
Color:
-
Optional
-
Usage:
-
Vibrating testing machine
-
Function:
-
sieving, screening, grading
-
Layer:
-
1~8
-
Noise:
-
≤50dB
-
Using scope:
-
Chemicals, food processing
-
Certification:
-
ISO9001:2008
Product Overview
Product description：

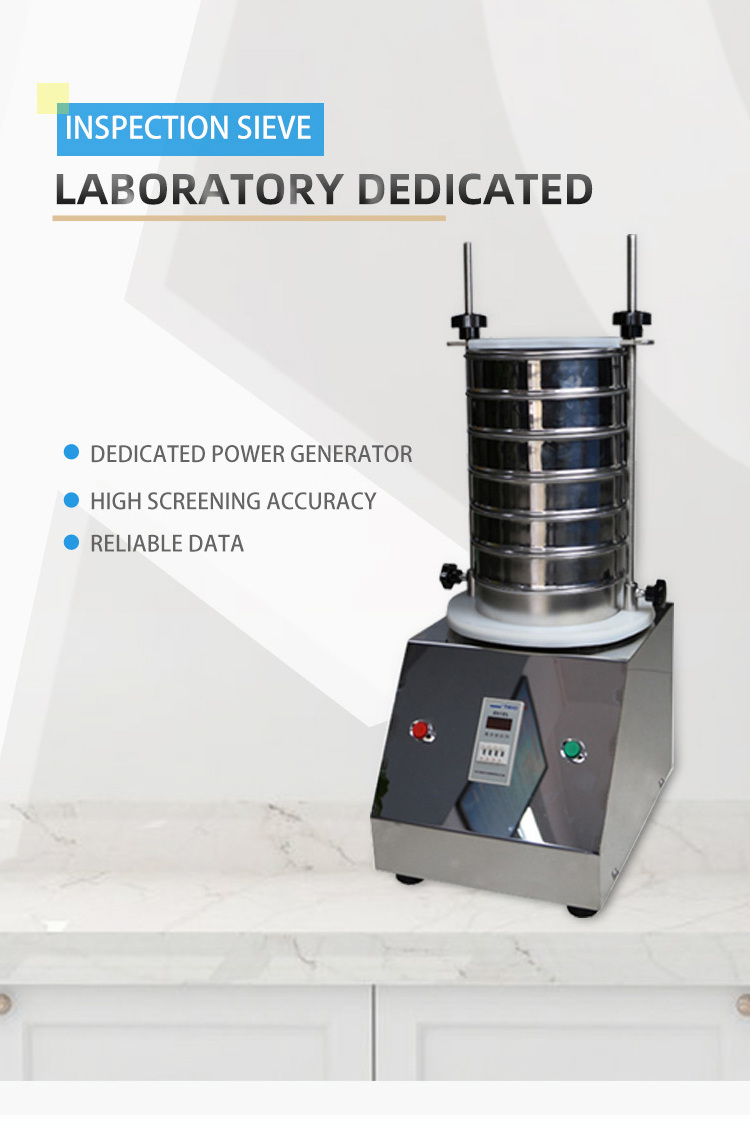

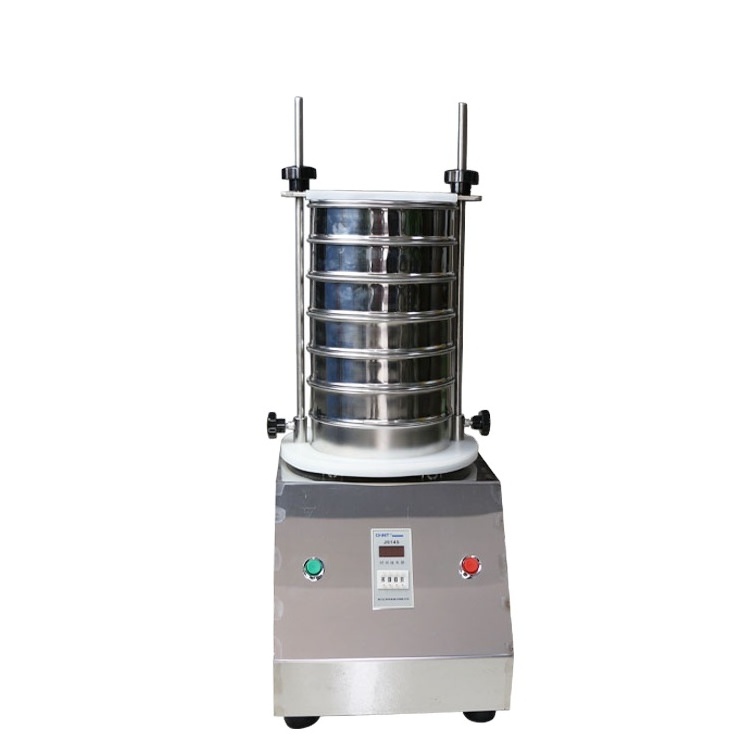

The laboratory-specific 200mm standard test sieve is also called vibrating sieve sand sieve analysis test, experimental sieve, national standard sieve, inspection sieve, analytical sieve and laboratory special sample sieve. It can be used in conjunction with the 200 experimental sieve frame and is necessary for particle size analysis and analysis. Prepare the product. Scientific research testing. Using 304 stainless steel and mechanical polishing process, motor cooling vent design, digital display timer, reliable data and convenient operation.
Device parameters：
|
Order
number
|
Name
|
Unit
|
Data
|
|
1
|
The standard screen body
|
Lyer
|
1-8
|
|
2
|
Sieve body diameter
|
mm
|
Φ300Φ200/Φ100/Φ75
|
|
3
|
Sieving particle size
|
mm
|
0.038-10
|
|
4
|
Noises
|
db
|
≤50
|
|
5
|
Feeding amount（at once）
|
g
|
≤200
|
|
6
|
Amplitude
|
mm
|
≤5
|
|
7
|
Motor speed
|
r/min
|
1420
|
|
8
|
Motor voltage
|
V
|
220
|
|
9
|
Motor power
|
Kw
|
0.125
|
|
10
|
Shape size
|
mm
|
360*300*736
|
|
11
|
Machine quality
|
kg
|
31
|
Product related industries
Product related industries：
Our Certificate
Our Exhibition
About the Company
About the Company：
Xinxiang Xianchen Vibration Machinery Co,. Ltd ,
which is established in the year of 2009, located in China biggest machinery manufacture base Henan province, is a professional vibration machinery manufactures which specializes in the production of sieving equipments, conveying equipments, crushing equipments and feeding equipments as well as relevant parts. we committed to solve all kinds of sieving problem.
Our tenet: "market oriented, technology based, quality of survival, innovation and development ".
Our Service：
1 .Design as your request
2.Any problems, please feel free to tell us
3.We will offer you the perfect design with competitive price
4. Provide technical support unconditionally.
5. Providing solutions according to the real situation.
2.Any problems, please feel free to tell us
3.We will offer you the perfect design with competitive price
4. Provide technical support unconditionally.
5. Providing solutions according to the real situation.
FAQ
FAQ:
1.How about the quality of your product?
a.Our products manufactured strictly according to national and international standard.
b. We take a test on every product before delivery.
Note: You had better send us the pictures you have ever used.
2.How about price of this product?
a. We can give the lowest price than market one.
b. We do quotation as soon as possible for any customer.
c. Discount can be given according to quantity.
