Quick Details
-
Jacket:
-
XLPO
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
Electrical solar Wire
-
Color:
-
Black,Red
-
Number of cores:
-
Single core
-
Construction:
-
56/0.30±0.01
-
Voltage:
-
0.6/1kV
-
Thermal endurance:
-
25 years
-
Characteristic:
-
Fire protection,Low load
-
MOQ:
-
500m
-
Business Type:
-
Manufacturer
-
Packing:
-
Wooden drum or rolls
Quick Details
-
Insulation Material:
-
XLPO
-
Application:
-
PV Installation/Solar Project
-
Conductor Material:
-
tinner copper
-
Jacket:
-
XLPO
-
Place of Origin:
-
Shanghai, China
-
Product name:
-
Electrical solar Wire
-
Color:
-
Black,Red
-
Number of cores:
-
Single core
-
Construction:
-
56/0.30±0.01
-
Voltage:
-
0.6/1kV
-
Thermal endurance:
-
25 years
-
Characteristic:
-
Fire protection,Low load
-
MOQ:
-
500m
-
Business Type:
-
Manufacturer
-
Packing:
-
Wooden drum or rolls

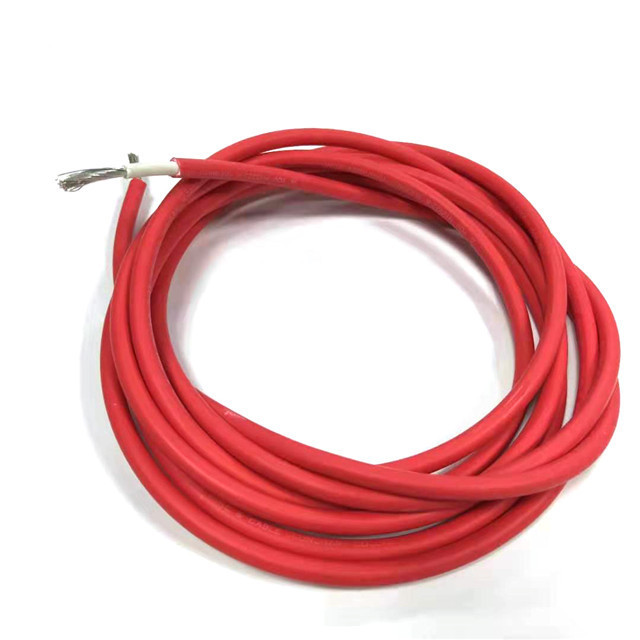

SeanRo Solar PV Single Core Power Cable 4mm2 Electrical solar Wire
Electron beam cross-linked materials do not melt or flow, even at high temperature, high resistance against heat, cold,abrasion, UV, ozone and hydrolys
i
s.
These cables provide the means to interconnect between photovoltaic(PV) panels and from panels to the inverter.
They operate at DC voltage and provide long life in exposed conditions.
Technical data:
|
Nominal voltage |
U0/U=600/1000V AC,1000/1800V DC |
Test voltage |
6500V,50HZ,5min |
|
Max. conductor temperature |
-40℃ up to +125℃ |
Ambient temperature |
-40℃up to +90℃ |
|
Max. Short circuit temperature |
280℃ |
Bending radius |
fixed installation>4×Φ Occasionally moved>5×Φ |
1. Conductor: Tinned copper.
2. Insulation: XLPE/XLPO
3. Sheath: XLPE/XLPO
4.Fire-resistance performance:IEC 60332-1
5.Approvals:TUV 2PfG 1169/08;EN50268-2
6.Application standards:UNE211 23;UNE 20.460-5-52,UTE C 32-502
Model Type
|
Size(n/mm2) |
Conductor Construction (n/mm) |
Finished Cable OD(mm) |
Max DC Resistance @20C(ohm/KM) |
Curent (A) (underground installation) |
|
1*4 |
52/0.30±0.008 |
4.85 |
5.09 |
52 |
|
1*6 |
78/0.30±0.008 |
5.55 |
3.39 |
67 |
|
2*4 |
52/0.30±0.008 |
4.85*10.00 |
5.09 |
44 |
|
2*6 |
78/0.30±0.008 |
5.55*10.00 |
3.39 |
57 |
