Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
11200 kg
-
Dimension(L*W*H):
-
8015*2380*3050mm
-
Product name:
-
motor grader
-
Blade length * height (mm):
-
3660*610
-
Blade lifting height (mm):
-
450
-
Shovel soil depth (mm):
-
535
-
Cutting angle (°):
-
54-90
-
Blade tilt angle (°):
-
90
-
Blade rotation angle (°):
-
360
-
Engine:
-
6BT5.9-C
-
Tire specifications:
-
13.00-24TG-TT
-
Weight (kg):
-
11000
Quick Details
-
Forward Speed(km/h):
-
40
-
Engine Brand:
-
WEICHAI
-
Working diameter:
-
3660mm
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
11200 kg
-
Dimension(L*W*H):
-
8015*2380*3050mm
-
Product name:
-
motor grader
-
Blade length * height (mm):
-
3660*610
-
Blade lifting height (mm):
-
450
-
Shovel soil depth (mm):
-
535
-
Cutting angle (°):
-
54-90
-
Blade tilt angle (°):
-
90
-
Blade rotation angle (°):
-
360
-
Engine:
-
6BT5.9-C
-
Tire specifications:
-
13.00-24TG-TT
-
Weight (kg):
-
11000
Product Description

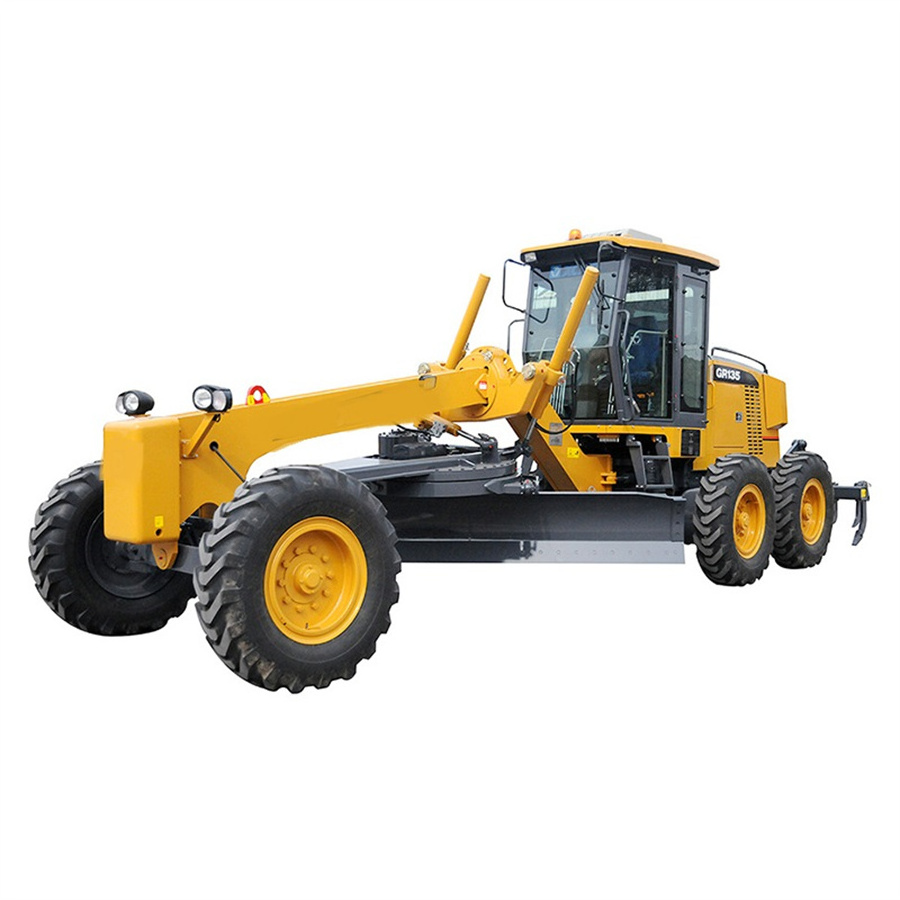

Motor Grader Operation Weight 11200kg Grader Engine 97Kw
Specification
|
Blade performance
|
|
|
|
Blade length × height (mm)
|
3660×610
|
|
|
Blade lifting height (mm)
|
450
|
|
|
Shovel soil depth (mm)
|
535
|
|
|
Cutting angle (°)
|
54-90
|
|
|
Blade tilt angle (°)
|
90
|
|
|
Blade rotation angle (°)
|
360
|
|
|
Engine
|
|
|
|
Model
|
Cummins 6BT5.9-C
|
|
|
Rated power (kw / rpm)
|
110/2200
|
|
|
Horsepower (horsepower)
|
150hp
|
|
|
Steering system
|
|
|
|
Minimum turning radius (m)
|
6.6
|
|
|
Gearbox
|
|
|
|
Traction (kN)
|
61.3
|
|
|
Forward speed
|
5、8、13、20、30、42km/h
|
|
|
Reverse speed
|
Reverse speed
|
|
|
Tire parameters
|
|
|
|
Tire specifications
|
13.00-24TG-TT
|
|
|
Operating weight
|
|
|
|
Weight (kg)
|
11000
|
|
|
Front axle (kg)
|
3300
|
|
|
Rear axle (kg)
|
7700
|
|
|
Size
|
|
|
|
Overall length (mm)
|
8015
|
|
|
Overall width (mm)
|
2380
|
|
|
Overall height (mm)
|
3050
|
|
|
Wheelbase of front and rear axle (mm)
|
5780
|
|
|
Rear wheelbase (mm)
|
11541
|
|
|
Tread (mm)
|
2020
|
|
|
Minimum ground clearance (mm)
|
410
|
|
|
Wheel track (mm)
|
2250
|
|
Details
Applicable working conditions
Construction sites, ports, wharfs, stations, freight yards, grain yards, paper mills, biological power plants, small mines, municipal construction, greening and other narrow operating sites
Equipped Tools
Packing & Delivery
1. Flatrack container
2. By bulk ship
3. By RO-Ro ship : Pirce is high but protect the trailer very well
