Quick Details
-
Mounting Type:
-
vertical
-
Description:
-
tank level sensor, PP material level sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
MR-4335-P, MR4535-PP
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NINGBO MINGRUI, Mingrui
-
Theory:
-
magnetic float
-
Customized support:
-
OEM, ODM, OBM
-
material:
-
PP
-
raw material:
-
food-grade
-
color:
-
white
-
company profile:
-
manufacturer
-
installation:
-
easy
Quick Details
-
Use:
-
Level measurement
-
Series:
-
float switch
-
Features:
-
magnetic reed switch
-
Mounting Type:
-
vertical
-
Description:
-
tank level sensor, PP material level sensor
-
Manufacturing Date Code:
-
2023
-
Model Number:
-
MR-4335-P, MR4535-PP
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NINGBO MINGRUI, Mingrui
-
Theory:
-
magnetic float
-
Customized support:
-
OEM, ODM, OBM
-
material:
-
PP
-
raw material:
-
food-grade
-
color:
-
white
-
company profile:
-
manufacturer
-
installation:
-
easy

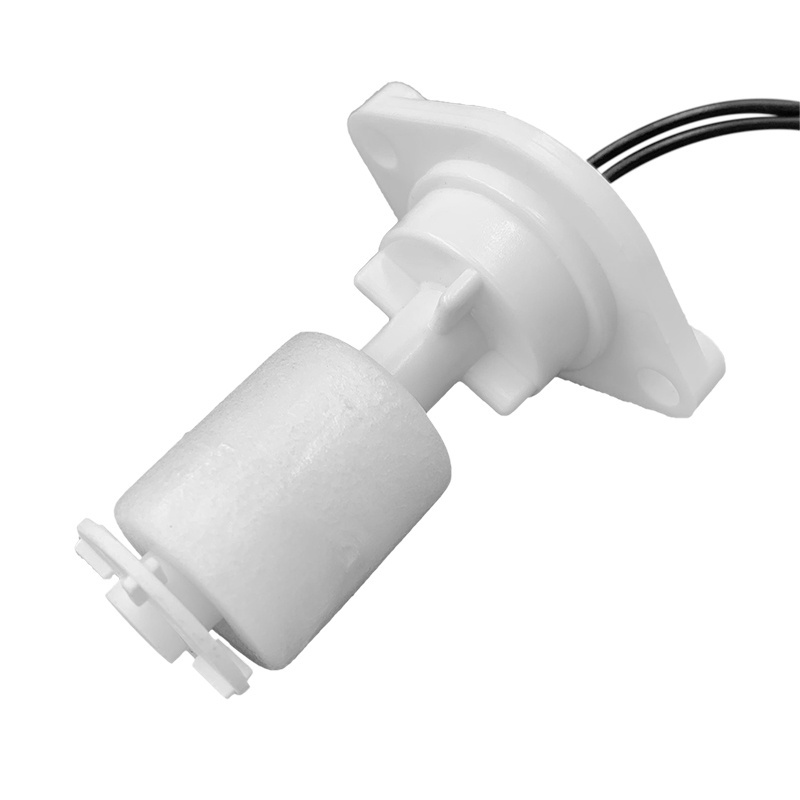

Plastic Level Switch
We are a professional source factory,
with good product quality and cheap price
MR4535-PP
Movement explaination: When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.
|
MR-4535 |
|||||
|
Installation |
Top or bottom perpendicular instal |
||||
|
Mounting dimension |
M8 |
||||
|
N.O/N.C (optional) |
|||||
|
Material Specification |
Electrical Specification |
Physic Specification |
|||
|
Float ball |
PP |
Contact form |
1A |
2A |
|
|
Float body |
PP |
Max contact rating |
10W |
50W |
|
|
Cap nut |
PP |
Max switching voltage |
100VDC |
220VDC |
Temp Rating: -10-+85°C |
|
O-ring |
Rubber |
Max breakdown voltage |
200VDC |
300VDC |
Max pressure: 0.2MPa |
|
E-ring |
PP |
Max switching current |
0.5A |
1.5A |
|
|
Filling |
EPOXY(ROHS) |
Max carry current |
1.0A |
3A |
|
|
Wire |
UL1007 24 |
Max contact resistance |
100Ω |
100Ω |
|
|
Working Life |
10,000,000 |
|
|||
Water fountain,air cindition,humidifier,bathroom equipment,sale machine,oil tank and chemical liquid level control.It will be widely applied in motor vehicles,industrial equipment,agricultural equipment and household appliances in the future.
Ningbo Mingrui sensors Co., Ltd. is a national high-tech enterprise dedicated to
the research and development and manufacture of sensors, centralized lubrication,
and various controllers. The main products are various types of liquid level sensors,
non-contact sensors, proximity sensors, vehicle oil/water tank sensors, flow sensors,
photoelectric sensors, lubricating oil pump controllers,automotive chassis
lubrication controllers, fresh air/air purification controllers, etc.
The company introduced ISO9001:2015 and IATF16949:2016 quality management
system as the company's quality management system, with "technical innovation,
advancing with the times, unremitting pursuit,
customer satisfaction" as the company's quality policy,
constantly improving quality and service, striving to be
Better quality, timely and effective service, lower price,
and better service to our customers.
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
