Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Summit
-
Model Number:
-
LA-J
-
Torque:
-
\
-
Voltage(DC):
-
12/24/36/48V
-
Max Load:
-
2000N
-
Stroke Length(mm):
-
customizable
-
Speed(mm/s):
-
5~58
-
Duty Cycle:
-
25%
-
Operation Temperature:
-
-40℃~65℃
-
Limit Switch:
-
optional
-
IP Grade:
-
IP66
-
Noise:
-
50dB
-
Option:
-
Potentiometer/Hall
Quick Details
-
Speed(RPM):
-
4000rpm\6000rpm
-
Continuous Current(A):
-
1.0~4.0A
-
Efficiency:
-
IE 4
-
Warranty:
-
2 years
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Summit
-
Model Number:
-
LA-J
-
Torque:
-
\
-
Voltage(DC):
-
12/24/36/48V
-
Max Load:
-
2000N
-
Stroke Length(mm):
-
customizable
-
Speed(mm/s):
-
5~58
-
Duty Cycle:
-
25%
-
Operation Temperature:
-
-40℃~65℃
-
Limit Switch:
-
optional
-
IP Grade:
-
IP66
-
Noise:
-
50dB
-
Option:
-
Potentiometer/Hall
Products Description

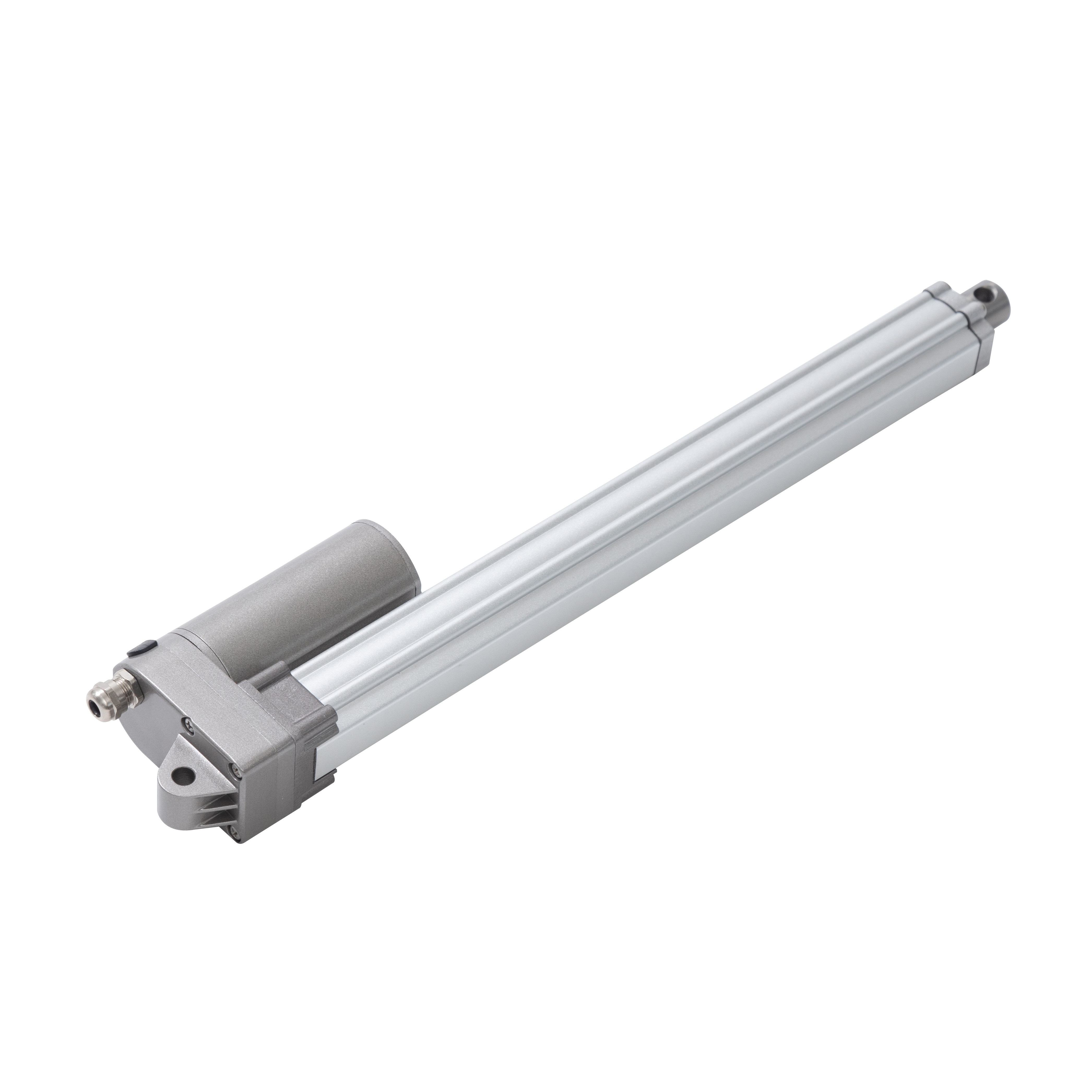

linear actuator
LA-J
Features
|
Shell Color
|
|
Aluminium grey
|
|
|
Screw type
|
|
Trapezoidal screw
|
|
|
Control method
|
|
Electric control
|
|
|
Application field
|
|
Industry
|
|
|
Operating temperature
|
|
-40~65℃
|
|
|
Working noise
|
|
≤65dB
|
|
|
Stroke length
|
|
50-1000mm
|
|
|
Load
|
|
≤2000N
|
|
|
Duty cycle
|
|
25%
|
|
|
Motor type
|
|
DC brush
|
|
|
Overload protection
|
|
No
|
|
|
Protection rating
|
|
IP66
|
|
|
Signal output
|
|
Switch signal, Hall, Potentiometer, Reed switch
|
|
|
Input voltage
|
|
12/24/36/48V DC
|
|
Specifications
|
Code
|
Maximum
dynamic load
|
Self-locking force
|
Reduction ratio
|
Pitch
|
Speed±10%
|
|
Max Stroke
|
Max Stroke
|
|
|
|
|
|
|
|
(mm/s)
|
|
Without POT
|
With POT
|
|
|
|
(N)
|
(N)
|
-
|
(mm)
|
No load
|
Full load
|
(mm)
|
(mm)
|
|
|
A
|
2000
|
3000
|
40:1
|
3.17
|
5
|
4
|
500
|
200
|
|
|
B
|
1600
|
2200
|
30:1
|
3.17
|
7
|
5.5
|
500
|
200
|
|
|
C
|
1200
|
1600
|
20:1
|
3.17
|
10
|
8
|
500
|
200
|
|
|
D
|
700
|
900
|
10:1
|
3.17
|
20
|
14
|
500
|
200
|
|
|
E
|
300
|
400
|
5:1
|
3.17
|
40
|
30
|
500
|
200
|
|
|
F
|
1200
|
1600
|
40:1
|
5
|
8
|
6
|
500
|
300
|
|
|
G
|
800
|
1100
|
30:1
|
5
|
10.5
|
8
|
500
|
300
|
|
|
H
|
600
|
800
|
20:1
|
5
|
15
|
11
|
500
|
300
|
|
|
I
|
400
|
600
|
10:1
|
5
|
30
|
22
|
500
|
300
|
|
|
J
|
200
|
300
|
5:1
|
5
|
55
|
45
|
500
|
300
|
|
Details Images
Dimension
Without potentiometer
With potentiometer
Front connector
End connector
Option
Performance
