This double gate opening system is a robust,tuff,long lasting,this type double swing gates up to 3.5 m in length. The motor can handle light gates. The PKM-C02 swing gate operators is a sleek design telescopic linear screw type actuator that is made of stainless steel with a cast alloy motor housing.The two motors make are constructed of metal (no plastic, fibre or nylon).
The PKM-C02 swing gate opener is fitted with an emergency manual override on each actuator to allow the user to open the gates manually in case of an emergency such as a power failure situation.
|
Power Supply
|
220V 50HZ/110V 60HZ
|
Electric Motor Power
|
24V 60W*2
|
|
Current
|
5A
|
Motor Speed
|
100RPM
|
|
Acutator Running Speed
|
2.4CM/S
|
Actuator Stroke
|
300MM/400MM
|
|
Max Single Leaf Width
|
3.5M
|
Max Single Leaf Weight
|
350KG
|
|
Working Temperature
|
-20°C~+55°C
|
Protection Class
|
Ip55
|

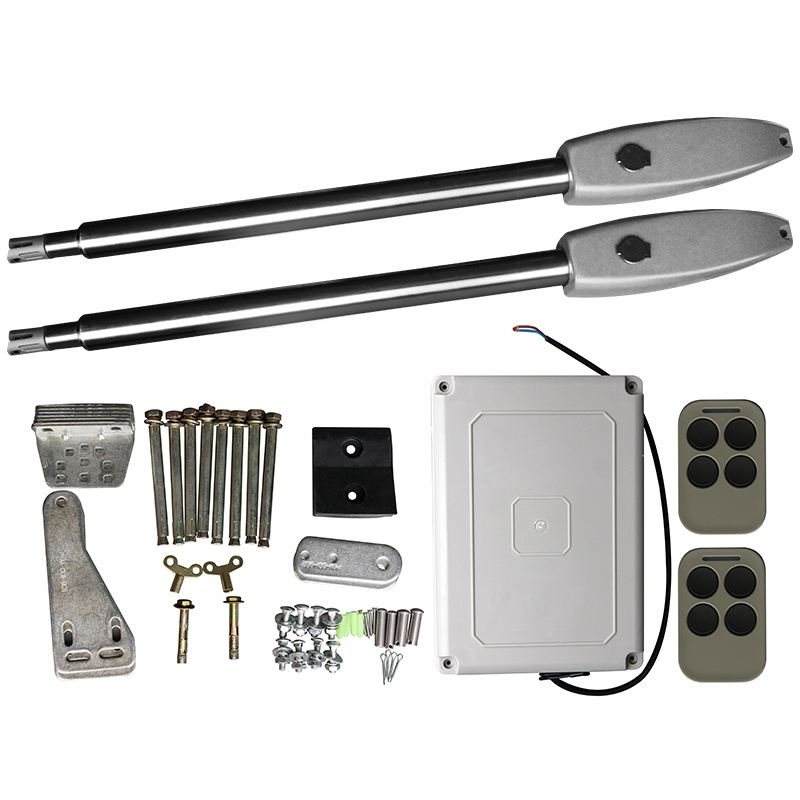

2 x DC gate motor that are pre-wired with motor cables
2 x Override spanners
2 x Remote controls
1 x Control panel
1 x Instruction manual
1 x complete install kits
1. Field tested by EU and US clients with Min 30000 open/close cycles.
2. DC 24V voltage motor that is safe and compatible with back up power supply.
3. Copper made worm gear driving design ensures the motor longer working life and extremely quiet.
4. Super quick manually release with secure customized key in case of power failure.
5. Soft start and slow stop.
6. Adjustable opening/closing interval time of double gate leaves.
7. Auto-stop if any obstacles detected during operation.
8. Built in max motor running time adjustable for multiple safety protection.
9. Separately adjust the force of double gate leaves.
10. Single leaf or double leaves operation.
11. Easy installation and low maintenance.
12. 12 months guarantee,life long post sales service.
1. Digital LED Menu brings a easy setting, plug and paly.
2. Open/Close single leaf or double leaves.
3. Separate force setting for motor 1, motor 2 and high speed, slow speed brings the motors working accurately.
4. Auto-closing time can be adjusted from 1 second to 99 seconds.
5. Total 60S' working time to protect the motors.
6. Terminals avalibale for loop detector, photocell, push button, keypad, access control equipment etc.
7. Compatible with both electric lock and electromagnetic lock.
8. Extra relay ouput for lock of pedestrian door or other external devices.
9. Custom rolling code makes the system more secure.
10.
Available to connect back-up battery or solar system.
|
Voltage
|
DC 24V
|
Protection Fuse
|
10A
|
|
Modulation
|
ASK modulation
|
Board Memory
|
120 rolling code transmit
|
|
Frequency
|
433.92MHZ
|
Output Volatge
|
DC 12V-24V
|
Solar panel, solar charge controller and back up battery can make your motor operate with out traditional power supply.
Battery Capacity: 12V
Soalr panel
Max. Power 20.0W
Max. Voltage 17.0V
Max. Cureent 1.18A
Open Circuit Voltage: 21.6V
Touch Sensor Bottons
Tempered Glass
Compatible With Most Of Fixed Codes&Rolling Codes
Power: 6V DC(4*AA Batteries)
Two Channel Output
LED Indicator&Backlight
Security Lockout
IP Rating 53
Optional
AC220V/110V with receiver
AC220V/110V without receiver
DC 24V with receiver
DC 24V without receive r
1. No call charges
2. Multipleapplications.
3. Secure.
4. Can be operated from anywhere, no distance limit.
5. Add or remove users by Simple SMS Text command.
6. Up to 99 authorized phone numbers can be configured.
7. Two Digital inputs for door sensor, motion sensors or other sensors to protect your door and windows.
Our Factory
Our Sales Team
Our Warehouse
Our Workshop
|
Packaging
|
|
|
|
Size
|
79 (L) * 33(W) *11 (D)
|
|
|
Weight
|
18KG
|
|
|
Packaging
Details
|
The normal package is carton(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
|
Delivery
|
Sample ship by Air
Over 10 sets ship by Sea |
|
If you have any questions, pls contact with me. I am glad to service you.
SKYPE : autogate01 TM: cn1000335106
Q1: What is the Warranty for swing gate opener?
A1:we have 1 year warranty time ,If any quality problems on our side occured in this period ,we will take resposible for it.
Q2: What is connponents of 1 set swing gate opener?
A2:Each Kit swing gate opener inclduing 2motors, 1 control panel, 2 remote controls, 2 release keys, 1 user book, 1 set hardward accessories for installation .
Q3:What is the securiy device for swing gate opener?
A3: Our control panel have terminals for infrared sensor ,flashing light , it can avoid some unnecessary accident.
Q4: How about the OEM?
A4: We can put costomers' information and logo on the products.
Q5: What is package size, weight?
A5: Package size: 79cm*31cm*10cm . Gross Weight : 18KG.
Q6: What is the Volatage input?
A6: Volatage range : 110V-240V.
Q7:Is there any quick release device for power failure?
A7:Our system have clutches device , when the power failure ,just use a Allen key to release the clutch , and push the door open or close by hand.
Q8:Is there cheap shipping cost to import to our country?
A8: For small order,express will be best. test 2 sets the ship cost will be competitive.
For bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.
