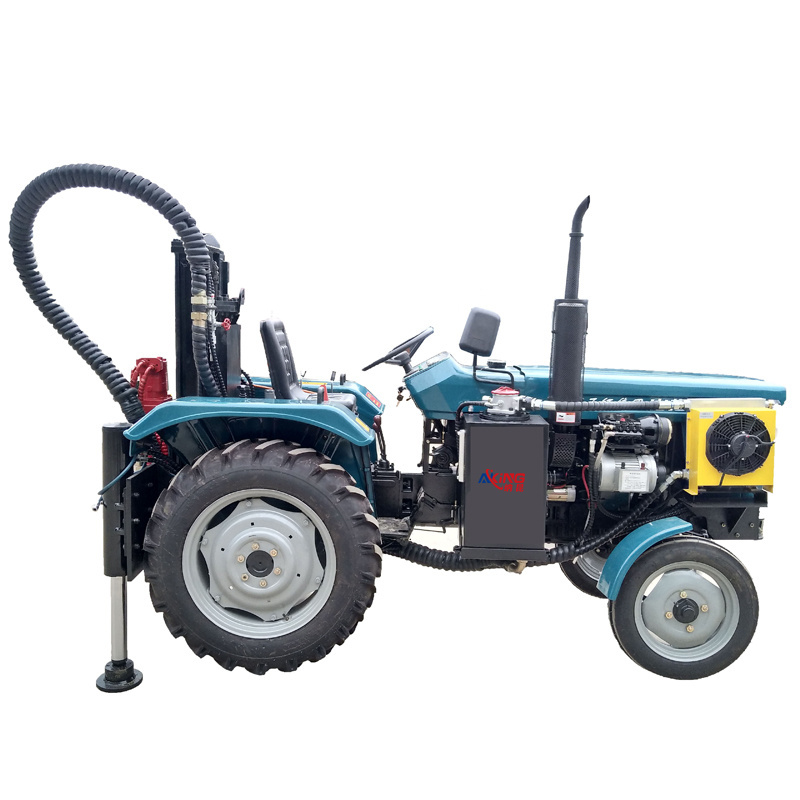

geotechnical drilling equipment/water well drilling machine/used portable drilling rigs for sale

geotechnical drilling equipment/water well drilling machine/used portable drilling rigs for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 2500*1300*1800mm

Weight:: 1600 KG

Marketing Type:: Other

Mobility:: yes

Application:: Water Wells Rock Drill Rig

Drilling method:: Diesel Hydraulic Water

Product name:: Hydraulic Geotechnical Drilling Machine

Function:: Deep Core Drilling Rig

Drill rod diameter:: 50/60mm

Engine:: Disel Engine

Drilling bit:: Drillers Diamond Bit

Drill pipe length:: 2500/3000/4000mm

Rotate speed:: 90r/min

Working Pressure(bar):: 1.05-2.46Mpa

Quick Details

Place of Origin:: shandong

Brand Name:: naking

Voltage:: diesel engine

Dimension(L*W*H):: 2500*1300*1800mm

Weight:: 1600 KG

Marketing Type:: Other

Mobility:: yes

Application:: Water Wells Rock Drill Rig

Drilling method:: Diesel Hydraulic Water

Product name:: Hydraulic Geotechnical Drilling Machine

Function:: Deep Core Drilling Rig

Drill rod diameter:: 50/60mm

Engine:: Disel Engine

Drilling bit:: Drillers Diamond Bit

Drill pipe length:: 2500/3000/4000mm

Rotate speed:: 90r/min

Working Pressure(bar):: 1.05-2.46Mpa

Product Overview

Hydraulic Water well drilling rig

The NK series hydraulic rig is a wide range of lightweight drilling rigs. Water well drilling, geological surveys, geological core drilling, small grouting holes, blasting holes, etc.

FEATURES AT A GLANCE

1. Has a hydraulic automatic supply mechanism, improve the efficiency of drilling, and reduce labor intensity. 2, It use the ball card holding mechanism or hydraulic chuck, can achieve non-stop rod, easy to operate, safe and reliable. 3. It is equipped with a hole pressure gauge to facilitate the mastery of the hole. 4, The structure is compact, the handle is concentrated, the occupied area is small, the weight is light, and the decomposition is strong. It is easy to relocate. Suitable for plains or mountain works.

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

Item	Unit	Data
Power	KW	22HP 15kw/200rpm
Drilling depth	m	200
Operating weight	kg	1600
Drilling diameter	mm	76-300
Mud pump Flow	l/min	250
Work pressure	Mpa	80
Size	mm	360017002400

PRODUCT CONFIGURATION

Model	NKZ130
Drilling depth	130m
Max open hole caliber	240mm
End hole caliber	75mm
Drill rod caliber	50mm
Drilling angle	90°～75°

Model	NKHZ180
Drilling depth	180m
Max open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90°～75°

Model	NKHZ-200
Drilling depth	200m
Max open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90°～75°

Model	NKHL-200
Drilling depth	230m
Max open hole caliber	300mm
End hole caliber	75mm
Drill rod caliber	60mm
Drilling angle	90°～75°

SALES AND SERVICE NETWORK

Successful Project

Project in Peru

Project in Indonesia

Project in Russia

FAQ

Q1: Are you manufacturer trading company?

A1: We are manufacturer,and welcome to our factory and visit us .
Q2:How long is the warranty period?

A2: The whole machine is guaranteed for one year, and the main machine is guaranteed for six
months
Q3: Do you support customization?

A3: Of course, we can customize products according to customer requirements
Q4: How do I choose from different models?

A4: We will make the suitable type for you depends on your request , such as the depth
and diameter of the hole , and the geological .
Q5: How is the service after I buy it ?

A5: We provide technical support, if necessary, we will send professional and technical
personnel to the scene to guide the operation
Q6: How we payment ?
A6: We support offline Ali payments, western union ,T/T,L/C

Q7:Why it shows trading company on Alibaba ?

A7: This is just an external trading and promotional platform
