Quick Details
-
Size:
-
12600*2550*1600 mm
-
Place of Origin:
-
Shandong, China
-
Curb Weight:
-
7000 kg
-
Suspension:
-
Mechanical Suspension
-
Apply:
-
Coal Transportation
-
Tire:
-
12.00R20 or 12R22.5
-
Side Frame:
-
U-steel bar
-
Floor:
-
2.5mm Checker Plate Floor
-
King Pin:
-
2" or 3.5"
-
Chassis Welding:
-
Automatic Submerged Arc Welding
-
Brake System:
-
Air drum brake
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
70 Tons
-
Brand Name:
-
Chang Hong
-
Size:
-
12600*2550*1600 mm
-
Place of Origin:
-
Shandong, China
-
Curb Weight:
-
7000 kg
-
Suspension:
-
Mechanical Suspension
-
Apply:
-
Coal Transportation
-
Tire:
-
12.00R20 or 12R22.5
-
Side Frame:
-
U-steel bar
-
Floor:
-
2.5mm Checker Plate Floor
-
King Pin:
-
2" or 3.5"
-
Chassis Welding:
-
Automatic Submerged Arc Welding
-
Brake System:
-
Air drum brake
Details

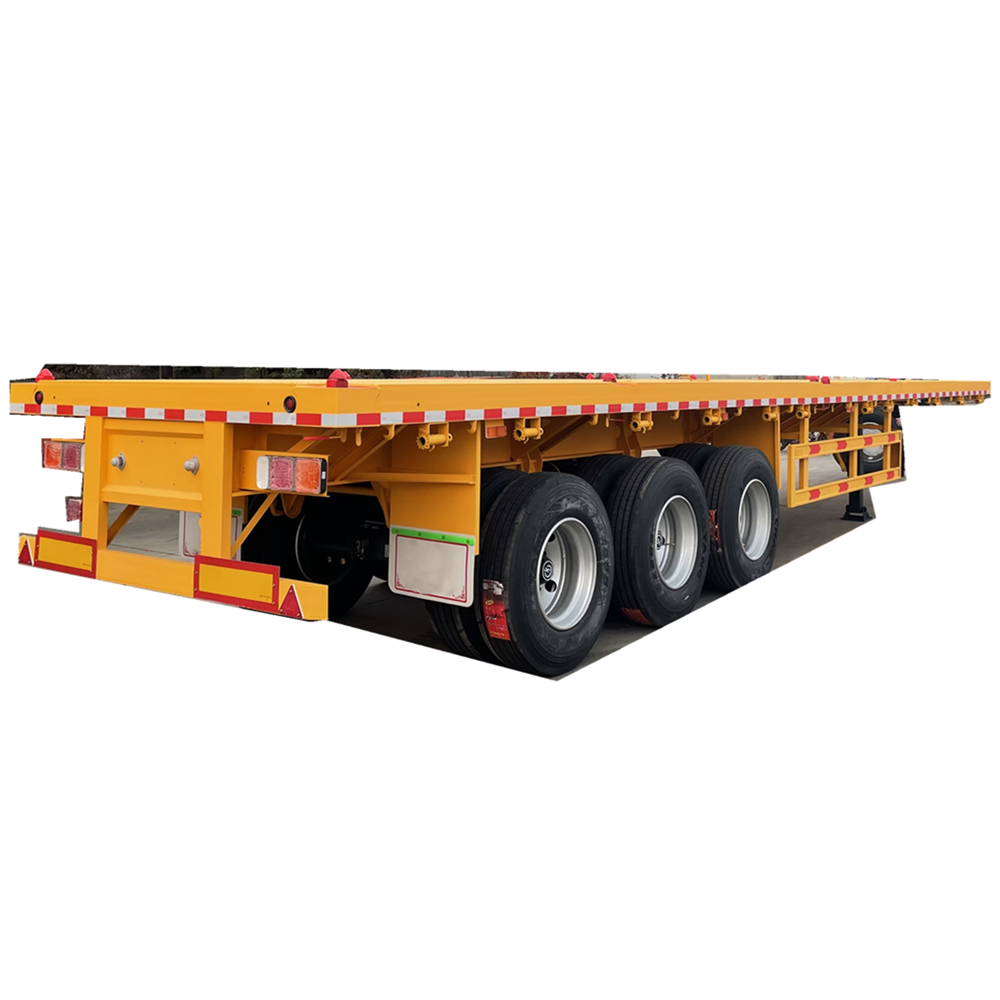

3 Axle Heavy Duty Container Transportation Flat Bed Truck Trailers Flatbed Cargo Semi Trailer
Rear Sight
Ready To Go
Ready To Go
Specifications
|
Overall Dimension
|
12500*2550*1600 mm or Customized
|
|
Curb Weight
|
7.0T
|
|
Loading Capacity
|
70T
|
|
Main Beam Spec.
|
T700/Q345 Steel, Height:500mm, Plate Thickness:8-16mm
|
|
Side Frame
|
Channel Steel
|
|
Cross Brace
|
Channel Steel/Bending Steel
|
|
Suspension
|
Mechanical Suspension, Air Suspension or Optional/
Tandem or Single Suspension |
|
Leaf Spring
|
10-layers leaf spring(90mm*13mm*10pcs)
|
|
Axle Spec.
|
13T/16T/20T BPW or FUWA brand
|
|
King Pin
|
2"(50mm)or3.5"(90mm) JOST Brand
|
|
Tire
|
11.00R20/12.00R20/ 12R22.5
|
|
Brake Chamber
|
6sets
|
|
Landing Gear
|
28T*2, JOST brand
|
|
Accessories
|
1 Standard Tool Box
|
|
Electric System
|
24V, One Set 6-core Standard Cable
|
|
Light
|
Tail lamp with turn signal,brake light & reflector,side lamp etc
|
|
Painting
|
Sand blasting, prime coating, surface painting,color optional, wax polishing
|
|
Packing
|
FCL Container, Ro-ro Shipment or Optional
|
Trailers In Storage
Mongolia Coal Trailer Coal Flatbed
40ft 45ft Container Loading Flatbed
High Fence Heavy Duty Semi Trailer
Special Designed Semi Trailer As Per Customers' Request
Production Process
A
B
C
D
E
F
