Quick Details
-
Brand Name:
-
E-link
-
Model Number:
-
ETH-IMC208MP
-
Place of Origin:
-
Guangdong, China
-
Keywords:
-
Managed Industrial PoE Switch
-
RJ45 port and speed:
-
8x10/100/1000Base-TX
-
Fiber port and speed:
-
2x1000Base-FX SFP
-
PoE Standard:
-
8x IEEE 802.3af /IEEE 802.3at PoE
-
Redundant power input:
-
DC 48-57V
-
Dimensions:
-
149 x 114 x 50 mm
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
110Gbps Backplane bandwidth
-
Brand Name:
-
E-link
-
Model Number:
-
ETH-IMC208MP
-
Place of Origin:
-
Guangdong, China
-
Keywords:
-
Managed Industrial PoE Switch
-
RJ45 port and speed:
-
8x10/100/1000Base-TX
-
Fiber port and speed:
-
2x1000Base-FX SFP
-
PoE Standard:
-
8x IEEE 802.3af /IEEE 802.3at PoE
-
Redundant power input:
-
DC 48-57V
-
Dimensions:
-
149 x 114 x 50 mm
Products Description
Overview

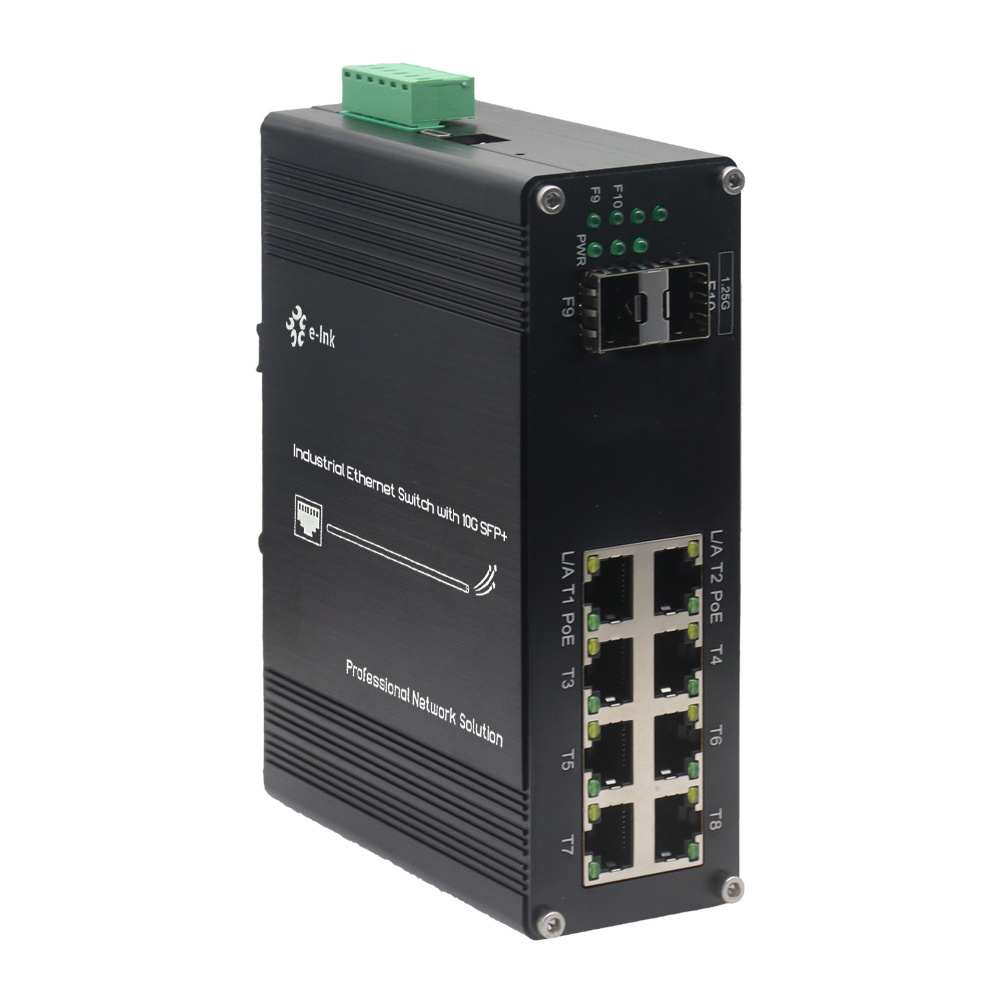

ETH-IMC208MP series is the L2+ managed 8-port 10/100/1000Base-T 802.3at PoE + 2-port 1000Base-X SFP hardened Ethernet switch. The Switch has 8 TP ports and 2 fiber ports. The TP (RJ45) supports 10/100/1000Base-T(X), Full/Half duplex mode, and auto MDI/MDI-X connection; 1000Base-X SFP port supports 1 or 2 core Single-mode or Multi-mode fiber. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access pointsbetween remote locations.
Features
* Support 8x10/100/1000Base-T + 2x1000Base-X SFP
* 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
* IEEE802.3af/at compliant
* DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
* Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
* 9K Bytes Jumbo Frame
* IEEE 802.3az Energy Efficient Ethernet (EEE)
* IP40 Aluminum Case
* Supports DIN-Rail installation
* -40°C to 80°C (-40°F to 176°F) operating temperature
* Support 8x10/100/1000Base-T + 2x1000Base-X SFP
* 10/100/1000Mbps RJ45 Port supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
* IEEE802.3af/at compliant
* DIP Switch supports one-key VLAN, one-key Ring Management, PoE Reset and 250m PoE Network
* Support connecting USB-C port for easy management, without the need to access the RS232 serial port at all
* 9K Bytes Jumbo Frame
* IEEE 802.3az Energy Efficient Ethernet (EEE)
* IP40 Aluminum Case
* Supports DIN-Rail installation
* -40°C to 80°C (-40°F to 176°F) operating temperature
|
Ethernet
|
|
|
|
|
||||
|
Standards:
|
IEEE802.3 10BASE-T
|
|
|
|
||||
|
|
IEEE802.3u 100BASE-TX/FX
|
|
|
|
||||
|
|
IEEE802.3ab 1000BASE-T
|
|
|
|
||||
|
|
IEEE802.3z 1000BASE-X
|
|
|
|
||||
|
|
IEEE802.3ae 10GBase-R
|
|
|
|
||||
|
|
IEEE802.3p QoS
|
|
|
|
||||
|
|
IEEE802.1d Spanning Tree
|
|
|
|
||||
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
|
|
||||
|
|
148,800pps (100Mbps)
|
|
|
|
||||
|
|
1,488,000pps (1000Mbps)
|
|
|
|
||||
|
|
1,488,000,000pps (10000Mbps)
|
|
|
|
||||
|
Packet Buffer Memory:
|
12M bits
|
|
|
|
||||
|
Processing Type:
|
Store-and-Forward
|
|
|
|
||||
|
Backplane bandwidth
|
110Gbps
|
|
|
|
||||
|
Max Packet Length:
|
9K Bytes Jumbo Frame
|
|
|
|
||||
|
Address Table Size:
|
8K MAC Addresses
|
|
|
|
||||
|
Interface
|
|
|
|
|
||||
|
Connector:
|
8 x RJ45
|
|
|
|
||||
|
Optical Port:
|
2 x 1000Base-X SFP
|
|
|
|
||||
|
USB-C:
|
1 x USB-C (for Management)
|
|
|
|
||||
|
PoE (Power over Ethernet)
|
|
|
|
|
||||
|
Standard:
|
IEEE 802.3at Power over Ethernet Plus
|
|
|
|
||||
|
|
IEEE 802.3af Power over Ethernet
|
|
|
|
||||
|
Port:
|
RJ45
|
|
|
|
||||
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
|
|
||||
|
PoE Budget:
|
Up to 240-watt PoE budget
|
|
|
|
||||
|
Environmental
|
|
|
|
|
||||
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
|
|
||||
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
|
|
||||
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
|
|
||||
|
MTBF
|
> 200,000 hrs
|
|
|
|
||||
|
Electrical and Mechanical
|
|
|
|
|
||||
|
Input Power:
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
|
|
||||
|
Power Consumption:
|
8W Max.(PoE in Use<240W)
|
|
|
|
||||
|
Protection:
|
|
|
|
|
||||
|
Power Input Overload:
|
Automatic Resettable
|
|
|
|
||||
|
Reverse Polarity:
|
Present
|
|
|
|
||||
|
DIP Switch
|
|
|
|
|
||||
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
||||
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
||||
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
||||
|
|
SW 3 (to be upgraded)
|
250m PoE Network
|
ON - Enabled
|
OFF - Disabled
|
||||
|
|
SW 4 (to be upgraded)
|
PoE Reset
|
ON - Enabled
|
OFF - Disabled
|
||||
|
LED Indicators:
|
|
|
|
|
||||
|
PWR:
|
Power Status
|
|
|
|
||||
|
Ethernet (Per Port):
|
Link/Activity
|
|
|
|
||||
|
PoE:
|
PoE Status
|
|
|
|
||||
|
Fiber:
|
Gigabit SFP Port: F9~F10
|
|
|
|
||||
|
Dimensions (WxDxH):
|
149 x 114 x 50 mm
|
|
|
|
||||
|
Weight:
|
0.55Kg
|
|
|
|
||||
|
Casing:
|
Aluminum Case
|
|
|
|
||||
|
Mounting Options:
|
DIN-Rail mount
|
|
|
|
||||
