Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SMJ
-
Model Number:
-
SRH1650B
-
Torque:
-
7.2-9.4mNm
-
Product Name:
-

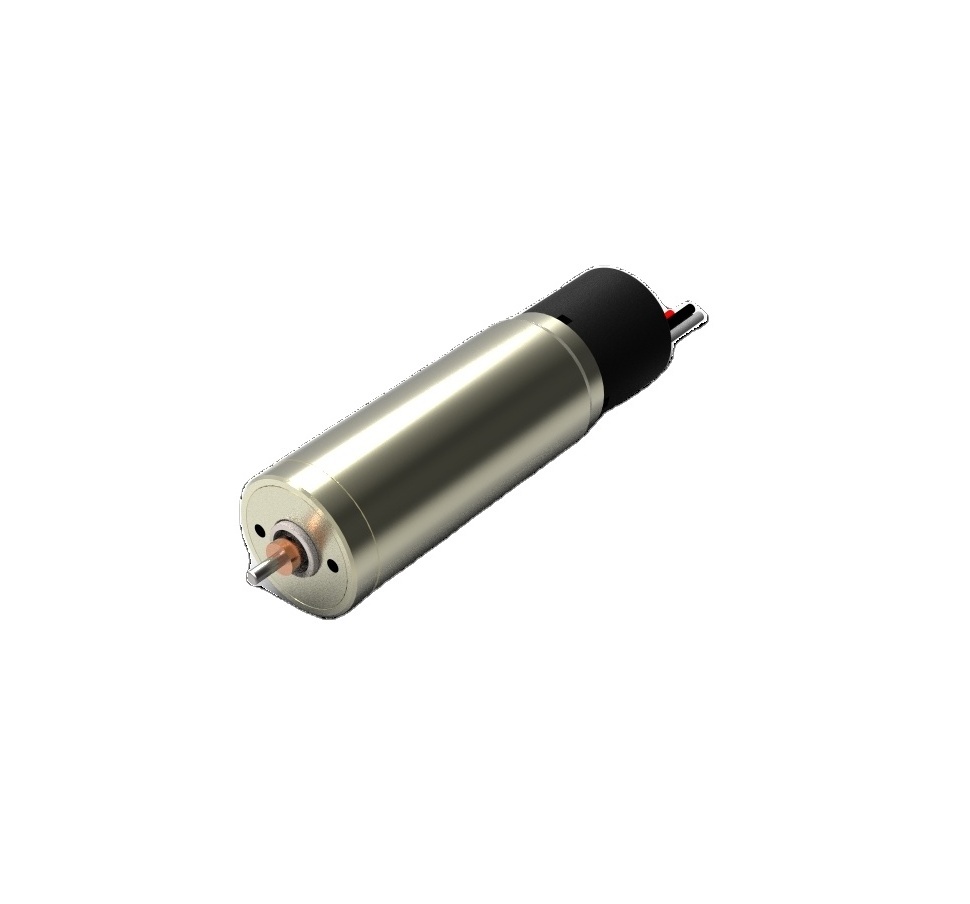

Coreless Brushed Dc Motor
-
Brush Type:
-
Graphite Brushes
-
Application:
-
Medical Equipment
-
Diameter:
-
16mm
-
length:
-
49mm
-
Weight:
-
45g
-
Shaft diameter:
-
1.5mm
-
No load speed:
-
12200-14500prm
-
Certification:
-
CE
Quick Details
-
Speed(RPM):
-
9600-12000rpm
-
Continuous Current(A):
-
0.47-1.55A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SMJ
-
Model Number:
-
SRH1650B
-
Torque:
-
7.2-9.4mNm
-
Product Name:
-
Coreless Brushed Dc Motor
-
Brush Type:
-
Graphite Brushes
-
Application:
-
Medical Equipment
-
Diameter:
-
16mm
-
length:
-
49mm
-
Weight:
-
45g
-
Shaft diameter:
-
1.5mm
-
No load speed:
-
12200-14500prm
-
Certification:
-
CE
Product Description
Japanese graphite brush high torque brushed servo motor dc motor for automation industry
Specification
|
MOTOR DATA
|
|
|
|
|
|
|||||
|
motor model
|
|
|
SRH165006B
|
SRH165012B
|
SRH165024B
|
|||||
|
Nominal voltage
|
V
|
V
|
6
|
12
|
24
|
|||||
|
No load speed
|
rpm
|
Wnl
|
12300
|
14500
|
12000
|
|||||
|
No load current
|
mA
|
lnl
|
45
|
40
|
23
|
|||||
|
Nominal speed
|
rpm
|
Wc
|
10240
|
12000
|
9600
|
|||||
|
Nominal torque
|
mNm
|
Tc
|
7.2
|
9.4
|
8.7
|
|||||
|
Nominal current
|
A
|
Ic
|
1.55
|
1.2
|
0.47
|
|||||
|
Stall torque
|
mNm
|
Tmax
|
42.1
|
54.5
|
39.5
|
|||||
|
Stall current
|
A
|
Imax
|
9.1
|
6.9
|
2.12
|
|||||
|
Max. efficiency
|
%
|
ηmax
|
87
|
83
|
78
|
|||||
|
Terminal resistance
|
Ω
|
Rt
|
0.66
|
1.73
|
11.3
|
|||||
|
Torque constant
|
mNm / A
|
Kt
|
4.63
|
7.9
|
18.59
|
|||||
|
Speed constant
|
rpm/V
|
Kn
|
2060
|
1215
|
514
|
|||||
|
Speed torque gradient
|
rpm/mNm
|
△n /△T
|
285
|
259
|
296
|
|||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
