Quick Details
-
Brand Name:
-
HCCK
-
Model Number:
-
LDG-DN50
-

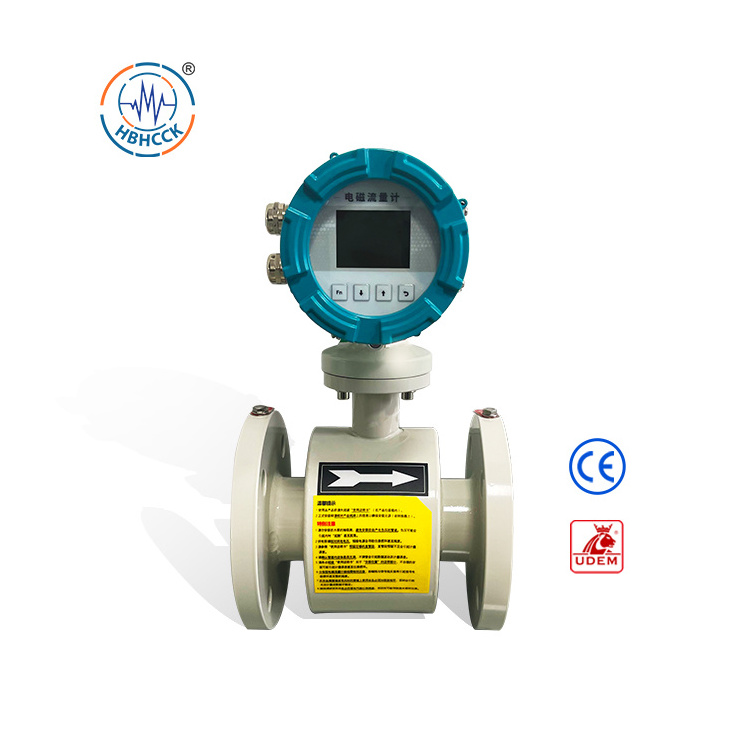

Product Name:
-
Electromagnetic Flow Meter
-
Display method:
-
LCD display, Instantaneous flow 4 bits,Total flow 8 bits
-
Nominal pressure:
-
0.6MPa;1.0MPa;1.6MPa;2.5MPa;4.0MPa; 6.3MPa;16MPa;25MPa;32MPa;42MPa
-
Operating environment:
-
Temp:-20℃- +50℃ Humidity:5%-95%
-
Signal output:
-
0-5kHz RS-485 MODBUS / 4-20mA (HART)
-
Power off data retention time:
-
10 years
-
Power supply:
-
220VAC±15%;24VDC±5%;3.6VDC
-
Power dissipation:
-
≤15VA
-
Mechanical vibration frequency:
-
≤55Hz amplitude≤0.15mm
-
Protection grade:
-
IP65,IP67,IP68(Measuring range and working pressure)
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Petrolum Flowmeters, Variable Area Oil Flowmeters
-
Warranty:
-
12 months
-
Place of Origin:
-
Hebei
-
Brand Name:
-
HCCK
-
Model Number:
-
LDG-DN50
-
Product Name:
-
Electromagnetic Flow Meter
-
Display method:
-
LCD display, Instantaneous flow 4 bits,Total flow 8 bits
-
Nominal pressure:
-
0.6MPa;1.0MPa;1.6MPa;2.5MPa;4.0MPa; 6.3MPa;16MPa;25MPa;32MPa;42MPa
-
Operating environment:
-
Temp:-20℃- +50℃ Humidity:5%-95%
-
Signal output:
-
0-5kHz RS-485 MODBUS / 4-20mA (HART)
-
Power off data retention time:
-
10 years
-
Power supply:
-
220VAC±15%;24VDC±5%;3.6VDC
-
Power dissipation:
-
≤15VA
-
Mechanical vibration frequency:
-
≤55Hz amplitude≤0.15mm
-
Protection grade:
-
IP65,IP67,IP68(Measuring range and working pressure)
Introduction
LDG series converters and sensors are combined to form electromagnetic flow meter. Used to measure the volume flow of conductive liquid in a closed pipe. Widely used in petroleum, chemical industry, steel, metallurgy, water supply and drainage, water conservancy and irrigation, water treatment, environmental sewage total control, paper, medicine, food and other industrial and agricultural sectors of the production process flow measurement and control; Suitable for total measurement of conductive liquid. Electromagnetic Flow meters are divided into: on-site display type, split remote display type, 4-20mA output type (without display), Battery-powered communication type.
