Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
5000 kg
-
Type:
-
Moveable belt conveyor
-
Making material:
-
Carbon steel, SS304, SS316
-
Belt Speed:
-
0.4-1.25m/s
-
Belt width:
-
400mm-1000mm
-
Machine length:
-
3-25m
-
Belt material:
-
rubber belt, PVC, PU, EP, or as required
-
Color:
-
customer design
-
Include control box:
-
YES
-
Motor:
-
YuTong or as required
-
Reducer:
-
Guomao, Tailong or as required
-
Certification:
-
ISO9001:2008
Quick Details
-
Power:
-
Based on client's real needs
-
Warranty:
-
2 years
-
Width or Diameter:
-
500-1400mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YingDa
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
Customized Size
-
Weight (KG):
-
5000 kg
-
Type:
-
Moveable belt conveyor
-
Making material:
-
Carbon steel, SS304, SS316
-
Belt Speed:
-
0.4-1.25m/s
-
Belt width:
-
400mm-1000mm
-
Machine length:
-
3-25m
-
Belt material:
-
rubber belt, PVC, PU, EP, or as required
-
Color:
-
customer design
-
Include control box:
-
YES
-
Motor:
-
YuTong or as required
-
Reducer:
-
Guomao, Tailong or as required
-
Certification:
-
ISO9001:2008

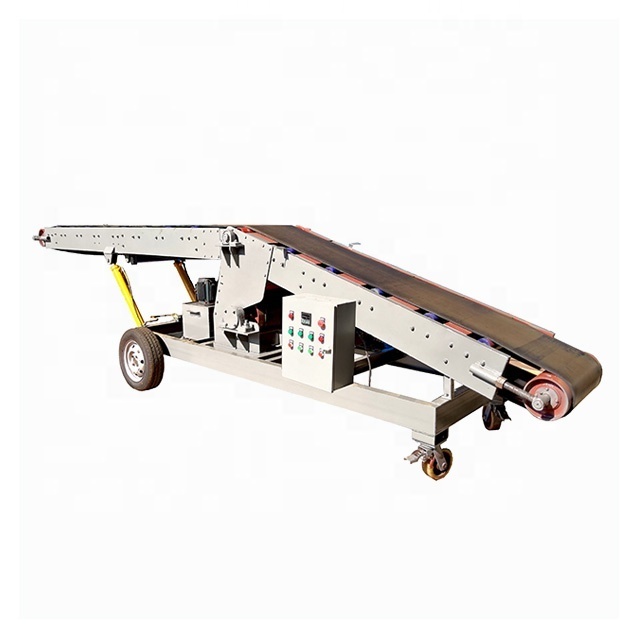

China adjustable height moveable belt conveyor for firewood cornice
>> Click here to get price now!
Moveable belt conveyor description:
Moveable belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance. It can be widely used in chemical industry, coal, mine, electrical department, light industry, grain, transportation department etc. It is suitable for conveying various materials in granular or powder. The bulk density should be 0.5~2.5t/m3. It can be also used in conveying packed bags or cartons.
Moveable belt conveyor feature:
- Simple structure, convenient and reliable operation, high efficiency, low noise etc.
- Allowed to tilt conveying, max slant angle is 25 degree.
- You can choose adjustable speed motor, adjust speed according to your need.
Moveable belt conveyor application:
- Bulk material: cement, sand, gravel, grain, fertilizer, sugar, salt, cookies etc.
- Other material: cartons, bags, machine parts etc.
Moveable belt conveyor detail:
|
Item |
DY400 |
DY500 |
DY650 |
DY800 |
DY1000 |
|
|
Length(m) |
3~25 |
|||||
|
Belt width(mm) |
400 |
500 |
650 |
800 |
1000 |
|
|
Belt speed(m/s) |
0.4~1.25 |
|||||
|
Lifting height(m) |
1.2~9.7 |
|||||
|
Conveying capacity |
(t/h) |
40-80 |
70-145 |
130-265 |
200-330 |
320-500 |
|
(pcs/h) |
800 |
1400 |
2600 |
3000 |
3500 |
|
- Motor and gearbox packed in wooden cases.
- Belt and other parts packed in pallet.
- Frame packed with fabric.
Click for More Information
About YingDa
Henan YingDa Heavy Industry Co., Ltd is professional manufacturer for bucket elevators, conveyors, crushers and vibrating screen . We have 20 professional engineers and 40 experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our Certification
Customer Visiting
Click for P rice Now!
1.Are you factory or trading company?
We are 30+ years manufacturing expricience factory.
2.Do you provide design for us?
Yes, we will provide engineer design service before order.
3. What's the delivery time?
15-25 days.
4. Do you provide installation service?
Yes, we will send our engineer go to your working site to guide installation and commissioning.
5. Payment terms?
TT, LC.
Welcome to contact us for more information , we will do my best for our friends!
