Quick Details
-
Place of Origin:
-
China
-
Color:
-
Copper Red
-
Material:
-
C1220 SF-Cu C12000
-
Standard:
-
JIS,ASTM,EN,AS
-
Pressure:
-
32Mpa
-
Process:
-
Extrusion
-
Usage:
-
Connect tube
-
OEM:
-
Accept
-
Test:
-
100%
-
Name:
-

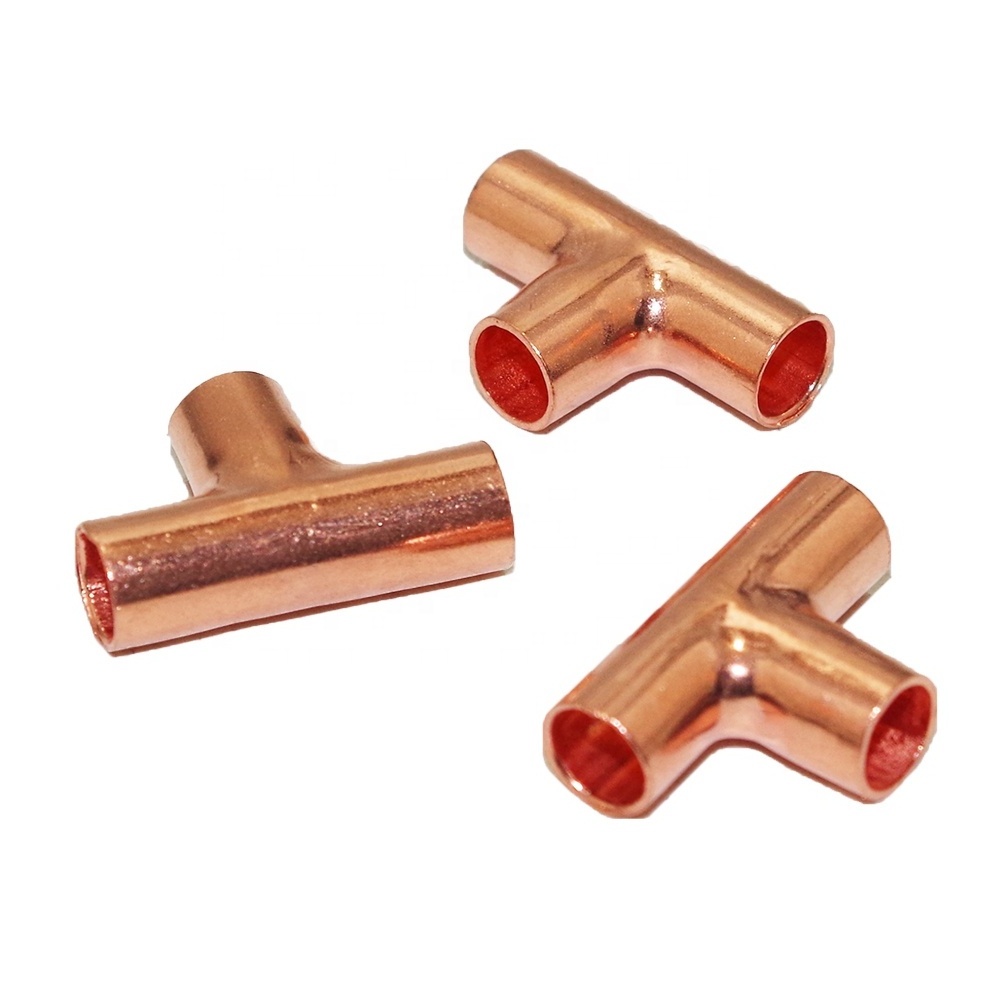

1/4" Inner Diameter 3 Way Equal Copper Tee Copper Pipe Fitting
-
Recycleable:
-
Yes
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Equal
-
Head Code:
-
ROUND
-
Place of Origin:
-
China
-
Color:
-
Copper Red
-
Material:
-
C1220 SF-Cu C12000
-
Standard:
-
JIS,ASTM,EN,AS
-
Pressure:
-
32Mpa
-
Process:
-
Extrusion
-
Usage:
-
Connect tube
-
OEM:
-
Accept
-
Test:
-
100%
-
Name:
-
1/4" Inner Diameter 3 Way Equal Copper Tee Copper Pipe Fitting
-
Recycleable:
-
Yes
3 Way Equal Tee Refrigeration and Air Conditioner Copper Pipe Fitting
Technical Data:
| ITEMS | SIZE(inch) |
Wall Thickness
(mm) |
Size(mm) | weight(g) |
| COPPER TEE | 1/4 | 0.7 | 6.35 | 5.8 |
| COPPER TEE | 5/16 | 0.7 | 8.00 | 8.5 |
| COPPER TEE | 3/8 | 0.7 | 9.52 | 11.0 |
| COPPER TEE | 1/2 | 0.7 | 12.70 | 15.2 |
| COPPER TEE | 1/2 | 1 | 12.70 | 25.1 |
| COPPER TEE | 15mm | 0.7 | 15.00 | 20.0 |
| COPPER TEE | 15mm | 1 | 15.00 | 32.6 |
| COPPER TEE | 15mm | 1.2 | 15.00 | 38.0 |
| COPPER TEE | 15mm | 1.5 | 15.00 | 48.0 |
| COPPER TEE | 5/8 | 0.7 | 15.88 | 22.5 |
| COPPER TEE | 5/8 | 1 | 15.88 | 35.5 |
| COPPER TEE | 5/8 | 1.2 | 15.88 | 40.0 |
| COPPER TEE | 5/8 | 1.5 | 15.88 | 54.3 |
| COPPER TEE | 3/4 | 0.8 | 19.05 | 44.2 |
| COPPER TEE | 3/4 | 1 | 19.05 | 44.2 |
| COPPER TEE | 3/4 | 1.2 | 19.05 | 51.6 |
| COPPER TEE | 3/4 | 1.5 | 19.05 | 67.6 |
| COPPER TEE | 22mm | 1 | 22.00 | 60.0 |
| COPPER TEE | 22mm | 1.2 | 22.00 | 71.0 |
| COPPER TEE | 22mm | 1.5 | 22.00 | 90.0 |
| COPPER TEE | 7/8 | 1 | 22.23 | 60.2 |
| COPPER TEE | 7/8 | 1.2 | 22.23 | 71.0 |
| COPPER TEE | 7/8 | 1.5 | 22.23 | 90.0 |
| COPPER TEE | 1" | 1 | 25.40 | 70.0 |
| COPPER TEE | 1" | 1.2 | 25.40 | 74.0 |
| COPPER TEE | 28mm | 1 | 28.00 | 88.2 |
| COPPER TEE | 28mm | 1.2 | 28.00 | 101.0 |
| COPPER TEE | 28mm | 1.5 | 28.00 | 127.0 |
| COPPER TEE | 1 1/8 | 1 | 28.60 | 87.8 |
| COPPER TEE | 1 1/8 | 1.2 | 28.60 | 101.0 |
| COPPER TEE | 1 1/8 | 1.5 | 28.60 | 137.0 |
| COPPER TEE | 1 1/4 | 1.1 | 32.00 | 113.0 |
| COPPER TEE | 1 1/4 | 1.3 | 32.00 | 133.0 |
| COPPER TEE | 1 3/8 | 1.2 | 35.00 | 154.7 |
| COPPER TEE | 1 3/8 | 1.3 | 35.00 | 160.0 |
| COPPER TEE | 1 3/8 | 1.5 | 35.00 | 192.0 |
| COPPER TEE | 1 1/2 | 1.3 | 38.00 | 167.5 |
| COPPER TEE | 1 1/2 | 1.5 | 38.00 | 188.6 |
| COPPER TEE | 1 5/8 | 1.3 | 42.00 | 215.0 |
| COPPER TEE | 2 1/8 | 1.3 | 54.00 | 400.0 |
| COPPER TEE | 2 5/8 | 1.5 | 67.00 | 690.0 |
| COPPER TEE | 3" | 1.6 | 76.00 | 860.0 |
| COPPER TEE | 4 1/4 | 1.7 | 108.00 | 1790.0 |
Advantages
3 Way Equal Tee Refrigeration and Air Conditioner Copper Pipe Fitting
- Standard: JIS,ASTM,EN,AS
- Top quality copper material C1220/SF-Cu/C12000
- Made by EXTRUSION process, perfect size tolerance.
- All pipes are checked by on line Eddy Current Inspection to ensure all the pipes are qualified products.
- Smooth and clean Outer/inner surface, no smudge and rust.
- Easy to braze and anti-corrosion
- Long service life and recyclable.
3 Way Equal Tee Refrigeration and Air Conditioner Copper Pipe Fitting
Usage and how to use
