Quick Details
-
Weight:
-
81kg
-
Certification:
-
ISO9001
-
Engine Type:
-
Air cooled twin cylinder
-
BORE*STROKE:
-
90*75MM
-
Displacement:
-
954CC
-
Rated Output:
-
17HP
-
Max.Output:
-
20HP
-
Lube Oil Capacity:
-
3Ll
-
Fuel Consumption:
-
280g/kw.h
-
Starting system:
-
Electric start
-
Color:
-
Black
-
Fuel Tank:
-
Just for option,not standard
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
LAUNTOP
-
Dimension(L*W*H):
-
580*565*600mm
-
Weight:
-
81kg
-
Certification:
-
ISO9001
-
Engine Type:
-
Air cooled twin cylinder
-
BORE*STROKE:
-
90*75MM
-
Displacement:
-
954CC
-
Rated Output:
-
17HP
-
Max.Output:
-
20HP
-
Lube Oil Capacity:
-
3Ll
-
Fuel Consumption:
-
280g/kw.h
-
Starting system:
-
Electric start
-
Color:
-
Black
-
Fuel Tank:
-
Just for option,not standard

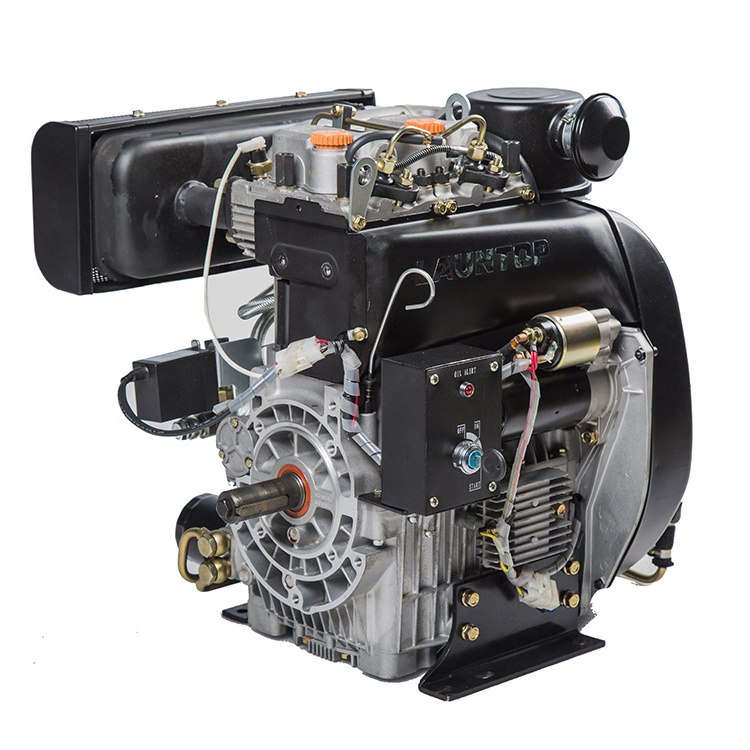

China 20hp double cylinder diesel engine for lombardini
| Engine Model | LA290F | ||
| Type | parallel double cylinder, 4-stroke,air-cooled, direct injection | ||
| Bore X Stroke | (mm) | 90 x 75 | |
| Speed | (rpm) | 3000 | 3600 |
| Total Displacement | (cm3) | 954 | |
| Rated power | (kW) | 12.5 | |
| Compression ratio | 19:1 | ||
| Maximum torque | N•m / rpm | 45.8/2250 | 38.5/2700 |
| Maximum no-load speed | (rpm/min) | 3240 | 3888 |
| Idling speed | (rpm/min) | 1300 | |
| Lube Oil Capacity | (lt) | 3 | |
| Fuel consumption | (g/kW.h) | ≤280 | |
| Suggested fuel | 0#(normal temperature) | ||
| Suggested oil | CF 15W-40(normal temperature) | ||
| Oil consumption | (g/kW.h) | ≤4.08 | |
| Starting System | Electric Start | ||
| Rotary direction of crankshaft | Clock wise(View from fly sheel engine | ||
