12V/24V Dc 1000kg 10000n force industrial Electric linear actuator waterproof RS-I

12V/24V Dc 1000kg 10000n force industrial Electric linear actuator waterproof RS-I

FOB Reference Price: Get Latest Price

≥2 Pieces

US $99

≥100 Pieces

US $95

≥500 Pieces

US $89

≥1000 Pieces

US $79

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 2 years

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-I

Torque:: N

Certification:: ce

Voltage:: 12V/24V DC

Stroke:: 20 TO 1000mm

Load capacity:: 10000N

IP grade:: IP65

Min. Length:: stroke + 240mm

Duty Cycle:: 10%

Quick Details

Speed(RPM):: High Speed

Continuous Current(A):: 4A

Efficiency:: M

Warranty:: 2 years

Place of Origin:: Anhui, China

Brand Name:: RISESAT

Model Number:: RS-I

Torque:: N

Certification:: ce

Voltage:: 12V/24V DC

Stroke:: 20 TO 1000mm

Load capacity:: 10000N

IP grade:: IP65

Min. Length:: stroke + 240mm

Duty Cycle:: 10%

Products Description

We are factory. We can OEM and ODM.

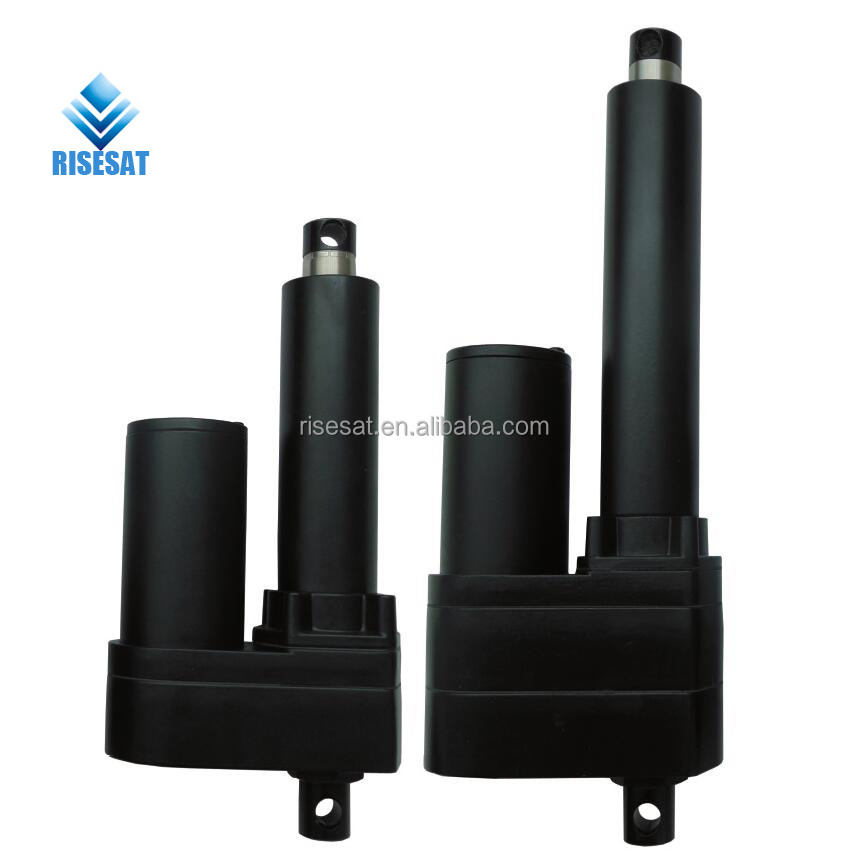

Linear Actuator RS-I

Features:
12V/24V/36V/48V DC (Option)
Motor Power: 150W
Push Load:10000N
Pull Load:10000N
Speed: 25mm/s(3000N)
14mm/s(6500N)
7 mm/s(10000N)
hole plated steel head connector
high strength metal case to protect mtor and gears
Compact design aesthetics, installation of small size
Protection calss: IP65
Color: Black
Stroke length: 100mm to 600mm (Option)
Min. Install dimension: S+240mm
Certification: CE
Ambient temperature: -45°C to +65°C
Application: Industry

Product Paramenters

Model	RS-D	Power	120W
Brand	RISESAT	Color	Black, Grey
IP Grade	IP65	Limit switch	Built-In
Duty cycle	20%	Stroke	Customized Stroke Available (10~1000mm)
Noise level	<=70dB	Minimum installation distance	Stroke+240mm
Feedback signal options	Hall sensor Potentiometer	Operation temperature	-30℃~+65℃

Dynamic Load Force(N)	10000	7000	5000	3000	2000	1000	500
No load speed (Mm/s)	5	5	10	20	30	40	50
Full load speed (Mm/s)	4	4	8	16	24	32	40
Voltage(VDC)	12V/24V/36/48 DC

Details Images

RS-I linear actuators are Widely used in various types of industrial equipment, special vehicles, marine facilities , Plant protection machinery,Agricultural machinery,new energy vehicles,Cooking machine,Moving lighting,sweep vehicles,and other power devices, lifting devices.
