Quick Details
-
Brand Name:
-
AOKMAN DRIVE
-
Model Number:
-
Y2
-
Frequency:
-
50Hz/60Hz
-
Rated Power:
-
0.12 kW~200 kW
-
Rated Voltage:
-
380V
-
Speed:
-
3000RPM, 1500RPM, 1000RPM,
-
Housing:
-
Cast Iron
-
Color:
-
Customer Request
-
Poles:
-
2P/4P/6P/8P
-
Protection class:
-
IP54/IP55/IP56
-
Cooling method:
-
IC411
-
Standard:
-
IEC International Standard
Quick Details
-
AC Voltage:
-
380V
-
Warranty:
-
1years, 1 Year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
AOKMAN DRIVE
-
Model Number:
-
Y2
-
Frequency:
-
50Hz/60Hz
-
Rated Power:
-
0.12 kW~200 kW
-
Rated Voltage:
-
380V
-
Speed:
-
3000RPM, 1500RPM, 1000RPM,
-
Housing:
-
Cast Iron
-
Color:
-
Customer Request
-
Poles:
-
2P/4P/6P/8P
-
Protection class:
-
IP54/IP55/IP56
-
Cooling method:
-
IC411
-
Standard:
-
IEC International Standard

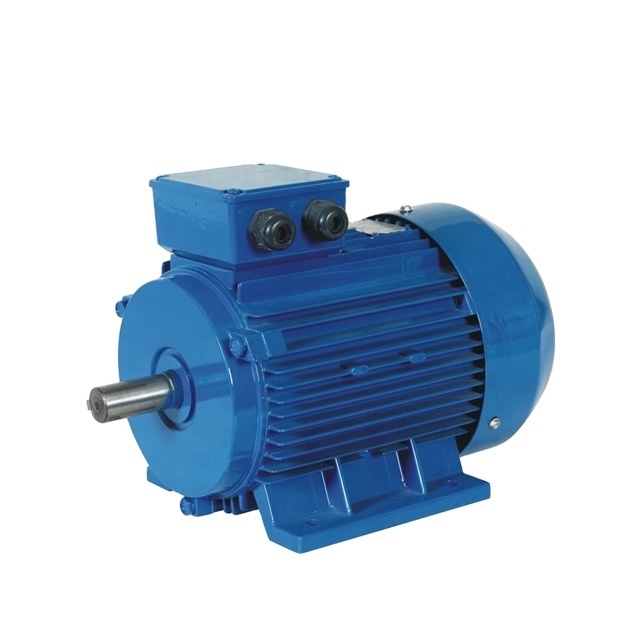

YE2 Series High Efficiency ac induction motor 5kw three phase electric motor Asynchronous Motor
AOKMAN® Y2 series 3 phase AC asynchronous motors (induction motors) adopts IEC standards, ABB Motor square design, cast aluminum housing, detachable mounting feet. Dustproof and waterproof, low noise, low vibration, energy saving, long service life.
Components:
1. Housing: Cast Iron
2. Shaft: 40Cr
3. Magnet Wires: QZ-2/155, QZ-2/180
4. Stator & Rotor Core: Silicon Steel Sheets DW470, DW600
5. Bearings: C&U, NSK, SKF
Mounting Options:
IM B3
IM B5, IM B14
IM B34, IM B35
|
Voltage
|
380V
|
|
Frequency
|
50Hz/60Hz
|
|
Power
|
0.12 kW~200 kW (0.16HP~272HP)
|
|
Poles
|
2P, 4P, 6P, 8P
|
|
Output Speed
|
3000RPM, 1500RPM, 1000RPM, 750RPM
|
|
Frame Sizes
|
H63~H315
|
|
Shaft Diameter
|
Φ11~Φ80
|
|
Ingress Protection
|
IP54, IP55, IP56
|
|
Insulation Level
|
F
|
|
Duty
|
Continuous duty (S1)
|
|
Cooling
|
IC411
|
|
Brake
|
Optional Brakes
|
1. More than 35 years experience in R&D and manufacturing, export gear motors & industrial gearboxes.
2. Standardization of the gearbox series
3. Strong design capability for large power & customized gearboxes.
4. High quality gearboxes and proven solutions provider.
5. Strict quality control process, stable quality.
6. Less than 2% of the quality complaints.
7. Modular design, short delivery time.
8. Quick response & professional services
