Quick Details
-
Brand Name:
-
HTD
-
Model Number:
-
HTD-RGT-2835-60
-
Application:
-
Indoor & outdoor
-
Lamp Body Material:
-
FPCB+LED
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Flux(lm):
-
22-24lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Color Rendering Index(Ra):
-
85
-
Product Weight（kg）:
-
0.28
-
Product Name:
-
Strip light led
-
LED quantiy:
-
60LEDs/m
-
Emitting Color:
-
WW/NW//CW
-
LED/Chip:
-
Sanan/Epistar
-
Light source life:
-
>30000H
-
PCB Width:
-
8mm
Quick Details
-
Color Temperature(CCT):
-
2700k-10000k, 2700k-10000k
-
Control Mode:
-
Touch Control, APP Control, Remote Control, Switch Control, Voice control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HTD
-
Model Number:
-
HTD-RGT-2835-60
-
Application:
-
Indoor & outdoor
-
Lamp Body Material:
-
FPCB+LED
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC12V/24V
-
Lamp Luminous Flux(lm):
-
22-24lm/led
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Color Rendering Index(Ra):
-
85
-
Product Weight（kg）:
-
0.28
-
Product Name:
-
Strip light led
-
LED quantiy:
-
60LEDs/m
-
Emitting Color:
-
WW/NW//CW
-
LED/Chip:
-
Sanan/Epistar
-
Light source life:
-
>30000H
-
PCB Width:
-
8mm
Product Description

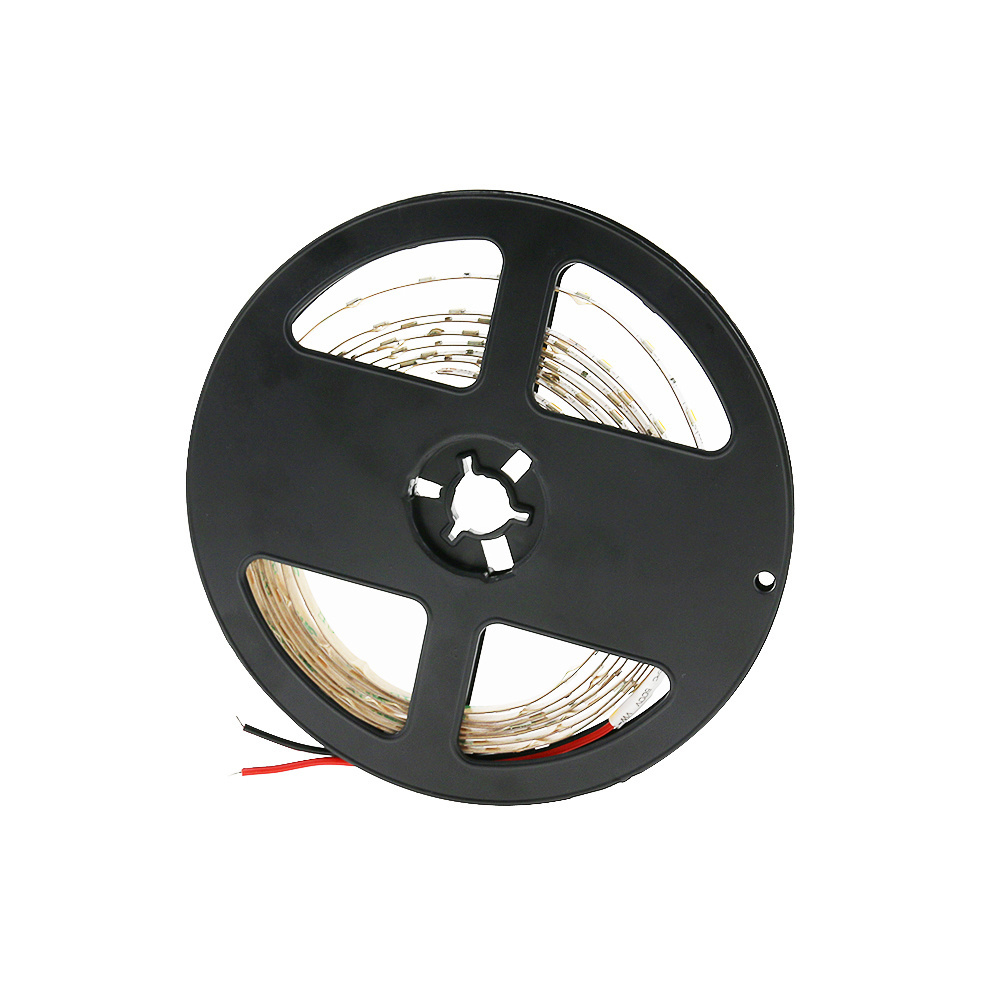

High Quality 5M LED Light SMD2835 8mm Flexible LED Strip 12v 24V with waterproof
Module
No.HTD-RGT-2835-60
●Constitute by FPC, SMD2835 60LEDs per meter and UV resistant silicone resin.
●The LED beam is 125-134° flood lighting, without the shadow, high brightness in 18-24lm/LED, low therm resistance,low light failure,in a poor environment can good work.
●10W/1M,the working voltage is DC12V/24V.
●Optional:IP20/IP65/IP68 waterproof level.Warranty optinal 1/2/3/5 years.
●Main applications: Commercial and residential decoration . Under-counter lighting . Media illumination . Large area backlighting,Small to medium channel letters • Point-of-sale displays • Used for Neon or tubes replacement,etc.
*Tips:
●When we computing power should retain 20% of the allowance.
●Up to 5 Meters HTD-RGT-2835-60 to use in one parallel.Screw holes on both ends to fixed,convenient and accurate.
●Advice that both ends connect DC12V power if must need 10M a string connect power supply,achieve the best use effect.
●Constitute by FPC, SMD2835 60LEDs per meter and UV resistant silicone resin.
●The LED beam is 125-134° flood lighting, without the shadow, high brightness in 18-24lm/LED, low therm resistance,low light failure,in a poor environment can good work.
●10W/1M,the working voltage is DC12V/24V.
●Optional:IP20/IP65/IP68 waterproof level.Warranty optinal 1/2/3/5 years.
●Main applications: Commercial and residential decoration . Under-counter lighting . Media illumination . Large area backlighting,Small to medium channel letters • Point-of-sale displays • Used for Neon or tubes replacement,etc.
*Tips:
●When we computing power should retain 20% of the allowance.
●Up to 5 Meters HTD-RGT-2835-60 to use in one parallel.Screw holes on both ends to fixed,convenient and accurate.
●Advice that both ends connect DC12V power if must need 10M a string connect power supply,achieve the best use effect.
Specification
|
Item NO.
|
HTD-RGT-2835-60
|
|
Voltage
|
DC12V/24V
|
|
Power
|
10W/M
|
|
Led number
|
60leds
|
|
Beam Angle
|
120 degree
|
|
Color
|
Red/Yellow/Blue/White/Green/Warm White
|
|
IP Grade
|
IP20/IP65/IP66/IP68
|
|
Certificate
|
CE&ROHS
|
|
Warranty
|
3/5years
|
Application
1) Architectural decorative lighting
2) Archway, canopy and bridge edge lighting
3) Amusement park, theater and aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
2) Archway, canopy and bridge edge lighting
3) Amusement park, theater and aircraft cabin mood lighting
4) Emergency hallway lighting
5) Auditorium walkway lighting
Detailed Images
Packing & Delivery
1. Payment term:
T/T 30% deposit after order confirmed, the balance after goods ready before shipping .Or paypal, Western Union for small amount .
2. Lead time :
Normally in 10~15 days after deposit received .
3. Sample policy :
Samples are always availble for each model . Samples can be ready in 3~7days once payment received
4.Shipping port:
Shenzhen,China
2. Lead time :
Normally in 10~15 days after deposit received .
3. Sample policy :
Samples are always availble for each model . Samples can be ready in 3~7days once payment received
4.Shipping port:
Shenzhen,China
