Quick Details
-
surface:
-
unground surface grinding
-
advantages:
-
good strength
-
hardness:
-
89.8hra
-
strength:
-
2800 MPA
-
Usage:
-
for bits of rotary hammer rock drills and heavy rock drills
-
MOQ:
-
5 kg
-
Density:
-
14.7g/cm3
-
Rock Formation:
-
hard formation
-
Diameter:
-
OD25*34MM
-
Button shape:
-
Spherical Button
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
zzup
-
Model Number:
-
OD25*34MM
-
surface:
-
unground surface grinding
-
advantages:
-
good strength
-
hardness:
-
89.8hra
-
strength:
-
2800 MPA
-
Usage:
-
for bits of rotary hammer rock drills and heavy rock drills
-
MOQ:
-
5 kg
-
Density:
-
14.7g/cm3
-
Rock Formation:
-
hard formation
-
Diameter:
-
OD25*34MM
-
Button shape:
-
Spherical Button

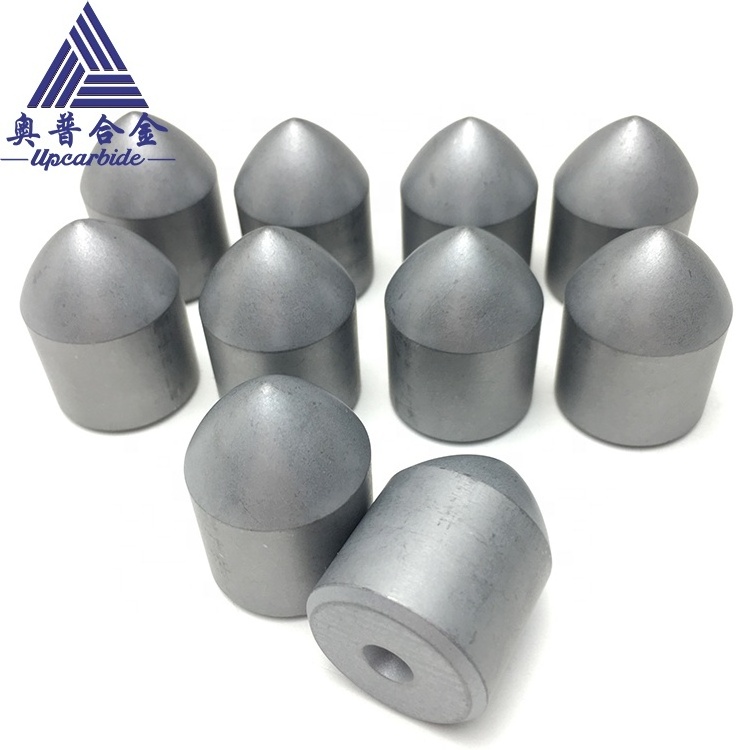

YG8/K20 89.8hra blank tungsten carbide spherical rock drilling button tips for mining
Specifications
Tungsten carbide button bits
has superior wear resistance and impact toughness, and similar products with higher speed of drilling and digging.Series of ball tooth bit passivation
using cycle is long, not to grind the life span of about the same diameter RenPian grinding
head drill bit 5-6 times of life, is beneficial to save auxiliary working hours, physical labor
and reduce workers to speed up the project.
1. promise the 100% virgin material .
2. Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.
3. suply blank and surface passivation.
4. tungsten carbide button's high hardness of the cemented carbide and other characteristics are widely
used in mining and quarrying and cutting process, also may be placed on a heavy excavators used in bit.
5. we can product the goods according your drawing and sizes.
6. our new product grade's grain size can up to 6.0μm,highest wear-resisting and excellentest impact resistance.
Products Show
Grade specifications
| Grade | Density | T.R.S | Hardness | Application recommended |
| (g/cm3) | ( MPa) | (HRA) | ||
| YG4C | 15.1 | ≥ 1800 | ≥ 90.0 | Mainly used as small buttons for percussion bits to cut soft and medium hard formations |
| YG6 | 14.9 | ≥2400 | ≥90.5 | For coring crowns,electric coal drill bits,coal cutting picks,oil cone bits and scraping knife bits,used in geological prospecting,coal mining and oil well boring. |
| YG8 | 14.7 | ≥2800 | ≥89.5 | Used as a core drill, electric coal drill, coal cutter tooth, oil roller bit and scraper button bit. |
| YG8C | 14.7 | ≥2700 | ≥89.0 | Mainly used for small and medium-sized drill bit tooth, and as a rotating exploration drill bush. |
| YG11C | 14.4 | ≥2850 | ≥87.0 | Most used in the drill bit and rock bit used for cutting high hardness materials ball tooth. |
| YG13C | 14.2 | ≥2900 | ≥86.0 | mainly used for rotary drill bit used for cutting high hardness materials in ball mill. |
| YG15 | 14.0 | ≥3000 | ≥87.0 | Good strength and less wear resistance,for bits of rotary hammer rock drills aaaaand heavy rock drills,for hard and very hard rocks. |
| YG15C | 14.0 | ≥3000 | ≥85.0 | Used in oil cone bit and soft in the hard rock digging cutting tools. |
| YK05 | 14.9 | ≥2600 | ≥90.5 | Mostly used as the buttons of small and mediumsized bits to cut soft and medium hard formations. |
| YK15 | 14.6 | ≥2750 | ≥88.0 | Suitable to strips,conical buttons for rotary percussion-resistant geological prospecting buttons,cut soft and medium hard formations. |
| YK20 | 14.5 | ≥2800 | ≥87.5 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations, |
| YK25 | 14.4 | ≥2550 | ≥87.2 | Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard,hard,and very hard formations. |
It is unique performance, therefore they are widely used in oil drilling and shovel snow, snow plough machine equipment, etc.At the same time also is used for coal mining machine tool, mining machinery and road sweeping snow removal and road maintenance tools.In the quarry, mining, tunnel engineering tools, as well as civil construction.
