Quick Details
-
Product name:
-

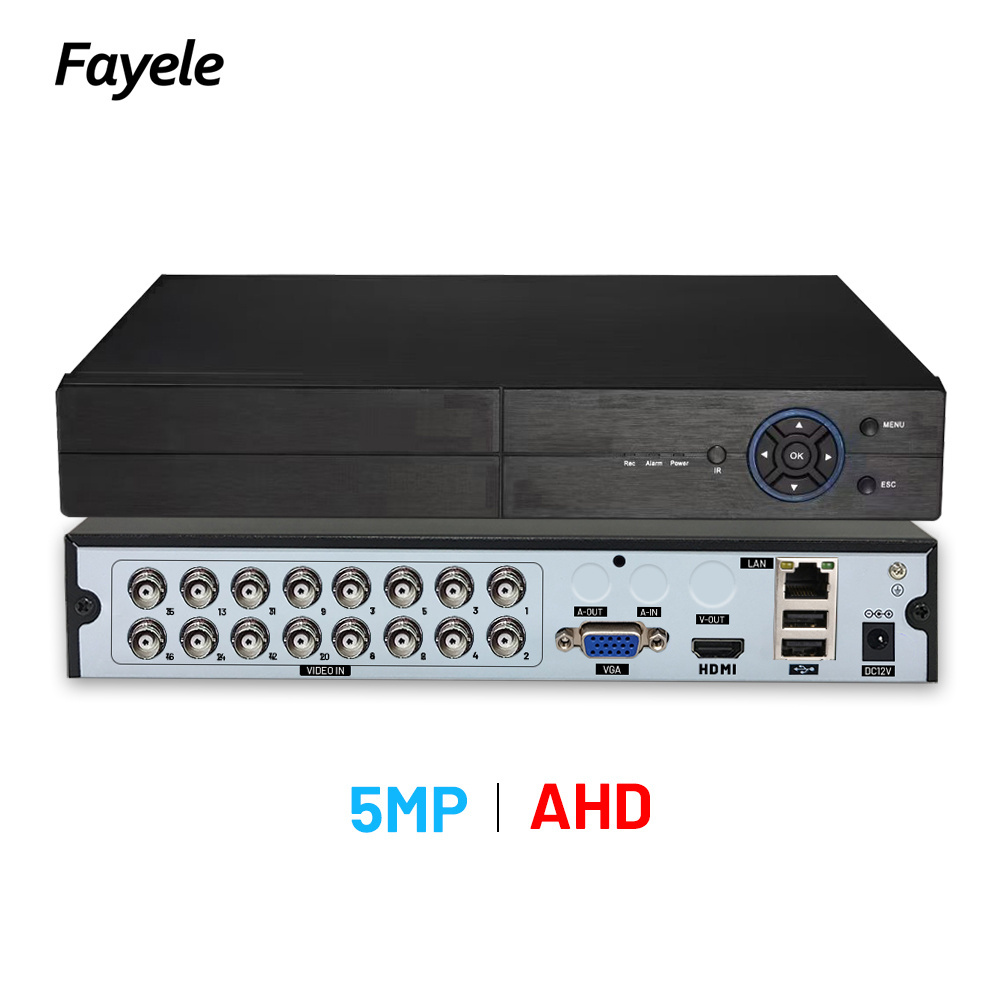

16CH AHD 5MP DVR
-
Input resolution:
-
5MP
-
Signal:
-
XVI/AHD/TVI/CVI/CVBS/IP 6in1
-
Feature:
-
Face Detection
-
Phone APP:
-
XMeyePro
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
XM-BH-3516MX
-
Product name:
-
16CH AHD 5MP DVR
-
Input resolution:
-
5MP
-
Signal:
-
XVI/AHD/TVI/CVI/CVBS/IP 6in1
-
Feature:
-
Face Detection
-
Phone APP:
-
XMeyePro
Product Description
Features
* Support H.265+ encoding, ultra-low bitrates, compatible with H.264 surroundings
* Support VGA, HDMI,CVBS full HD output simultaneously
* Support ONVIF-compatible; access third party
* Support multiple cloud technology, network penetration, alarm information pushed to your phone and other functions
* Support web, VMS, center platform management software MYEYE, provide SDK development
* Support various mobile monitoring (iPhone, Android)
* Remote Access, With DNS (ARSP),easy to monitor remotely
* Support UTC, control signal& video stream transmit through one single coaxial
* Support XVI/AHD/TVI/CVI/CVBS/IP six signals
* Support intelligent analysis: Human detection, face detection, Vehicle shape detection;
|
|
Model
|
XM-BH-3516MX
|
|
System
|
Main processor
|
NT98332
|
|
Interface
|
Preview
|
1/4/8/9/16
|
|
Video
|
Codec
|
H.265+
|
|
|
Monitor quality
|
VGA (1080P at most)；HDMI (4K at most)；CVBS
|
|
|
Preview ability
|
16*5M-N@12fps (6 in 1)/16*4M-N@15fps (6 in 1) ( XVI), default 5M-N
|
|
|
Encode ability
|
16*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1) (XVI) , default 5M-N
|
|
|
Decode ability
|
16*5M-N@6fps (6 in 1)/16*4M-N@8fps (6 in 1) (XVI) , default 5M-N
|
|
|
Multi-mode
input |
Analog：16*5M-N
hybrid：16*5M-N（analog）+4*1080P（network） network：16*1080P；8*5M |
|
|
Motion Detection
|
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set (Limited local channel)
|
|
Audio
|
Audio compression
|
G.711A
|
|
|
Intercom
|
support
|
|
Record & playback
|
Record mode
|
manual>alarm>motion detection>timing
|
|
|
Local Playback
|
16ch(analog input mode)
|
|
|
Search mode
|
Search by time, calendar, event, channel
|
|
Storage & backup
|
Video storage
|
HDD, network
|
|
|
Backup mode
|
Network, USB hard disk, USB burner, SATA burner
|
|
External Interface
|
Video input
|
16ch BNC
|
|
|
Video output
|
1ch HDMI（Support extended VGA*1）
|
|
|
Loop Vout
|
N/A
|
|
|
Audio I/O
|
2（Can be extended to 6ch）/1
|
|
|
Alarm I/O
|
0（Can be extended to 4ch）/0（Can be extended to 1ch）
|
|
|
Network interface
|
RJ45 10M/100M self-adaption
|
|
|
PTZ control
|
1*RS485, Support kinds of PTZ protocols
|
|
|
USB
|
2* USB 2.0 ports
|
|
|
HDD
|
2*SATA ports (Max 14TB)
|
|
|
Wireless
|
3G, WIFI (extend via USB)
|
|
General
|
Power supply
|
12V/2A
|
|
|
Power Consumption
|
<15W (without HDD)
|
|
|
Working environment
|
Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa
|
|
|
Dimension
|
|
|
|
Weight
|
|
