Quick Details
-
Color Temperature(CCT):
-
3000K, 4000K, 5000K, 6000K, 6500K
-
Color Rendering Index(Ra):
-
83
-
Product Weight（kg）:
-
2
-
CRI (Ra>):
-
83
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
OG-SPC
-
Brand Name:
-
OGJG
-
Input Voltage(V):
-
100-277v, 347v
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
2100-9600
-
Product Name:
-
Led Batten Light
-
Power available:
-
20w 40w 50w 60w 80w
-
Materials:
-
Cold rolled steel housing, Aluminum heatsink
-
LED Light Source:
-
SMD2835
-
Fixture Length:
-
2ft 4ft 5ft
-
Driver:
-
Isolated Driver
-
Function:
-
Dimmable, microwave motion sensor and emergency battery back up
-
Feature:
-
Replaceable Led Strips
-
Installation:
-
Surface Mounted
-
Application:
-
corridor, hallway, stairwell, classroom, office, shop
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
120
-
IP Rating:
-
IP40
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K, 4000K, 5000K, 6000K, 6500K
-
Color Rendering Index(Ra):
-
83
-
Product Weight（kg）:
-
2
-
CRI (Ra>):
-
83
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
OG-SPC
-
Brand Name:
-
OGJG
-
Input Voltage(V):
-
100-277v, 347v
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
2100-9600
-
Product Name:
-
Led Batten Light
-
Power available:
-
20w 40w 50w 60w 80w
-
Materials:
-
Cold rolled steel housing, Aluminum heatsink
-
LED Light Source:
-
SMD2835
-
Fixture Length:
-
2ft 4ft 5ft
-
Driver:
-
Isolated Driver
-
Function:
-
Dimmable, microwave motion sensor and emergency battery back up
-
Feature:
-
Replaceable Led Strips
-
Installation:
-
Surface Mounted
-
Application:
-
corridor, hallway, stairwell, classroom, office, shop

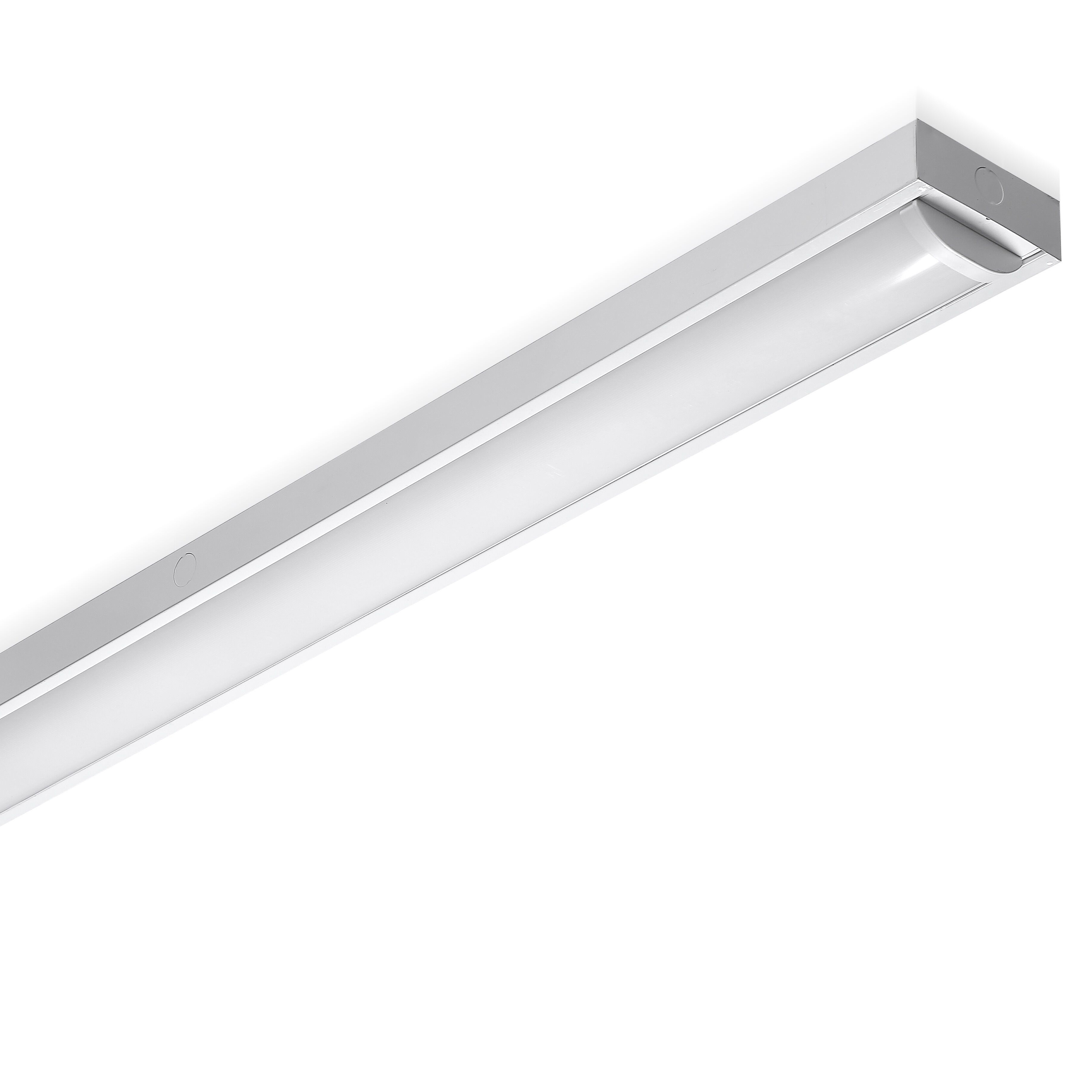

School Office stairwell LED lighting solution with emergency battery backup and motion sensor led linear luminaire
American version: with ETL DLC listed
European version: with CE certificate
Austrialian version: with SAA certificate
Product Description
| Model | OG-SPC(LED) |
| Material | Cold rolled steel housing, PC cover |
| Color | White, Black, Silver |
| Size | 2ft, 4ft, 5ft |
| Wattage | 20W, 40W, 50W, 60W, 80W |
| Luminous Efficiency | 105lm/w, 130lm/w |
| Input Voltage | 100-277V, 347V |
| CRI | >83 |
| Power Factor | >0.9 |
| LED Light Source | Epistar SMD2835 |
| CCT | 3000K, 3500K, 4000K, 5000K, 6000K, 6500K |
| Function | 0-10V dali dimming, Microwave motion sensor, Emergency battery backup, Linkable |
| Feature | Isolated driver, Aluminum heatsink, Replaceable LED strips, Match to junction box, Knockouts |
| Certificate | ETL, cETL, DLC premium, TUV-CE(EMC, LVD), TUV-SAA, CB |
| Installation | Ceiling mounted, Wall mounted, Suspended |
| Model | Wattage | Size | Dimensions(mm) | Voltage | Lumens | CCT(K) |
| OG-LED210-SPC | 20W | 2' | 610x112x62 | 100-277V | >2100lm/>2600lm |
3000K 4000K 5000K 6500K |
| OG-LED220-SPC-2 | 40W | 2' | 610x112x62 | 100-277V | >4800lm | |
| OG-LED220-SPC | 40W | 4' | 1220x112x62 | 100-277V | >4200lm/>5200lm | |
| OG-LED320-SPC | 60W | 4' | 1220x112x62 | 100-277V | >7200lm | |
| OG-LED240-SPC | 60W | 5' | 1506x112x62 | 100-277V | >6300lm/>7800lm | |
| OG-LED330-SPC | 80W | 5' | 1506x112x62 | 100-277V | >9600lm |
