Quick Details
-
Drilling Speed:
-
12/16 Speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HYD
-
Model Number:
-
DP161501
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
885*485*277 mm
-
Power (kW):
-
650W/550W
-
Weight (KG):
-
54 KG
-
Product name:
-

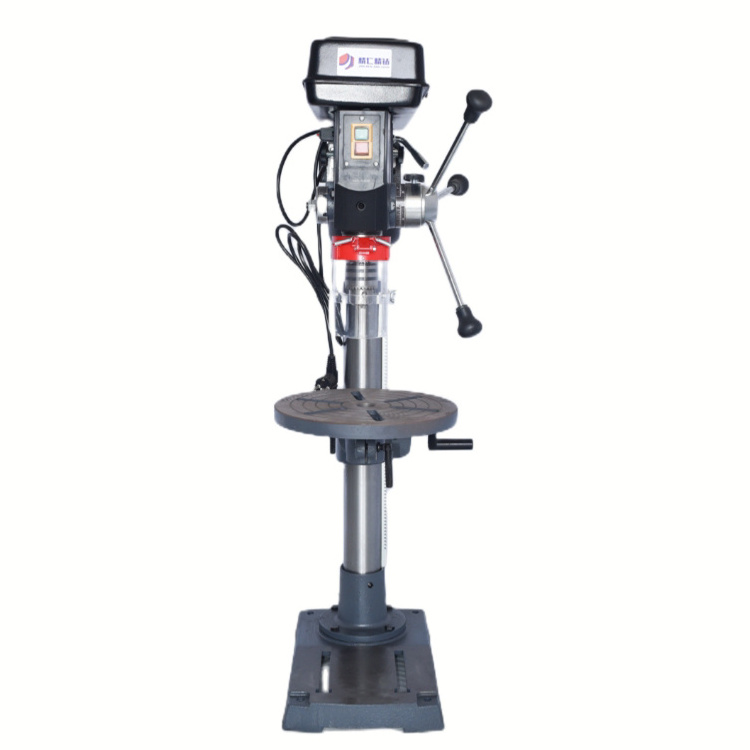

Vertical Drilling Machine
-
Name:
-
Vertical Automatic Drilling Machine
-
Swing:
-
390 mm
-
Taper:
-
MT2
-
Spindle travel:
-
80 mm
-
Table size:
-
290*290 mm
-
Base size:
-
425*255 mm
-
Overall Height:
-
1065 mm
-
Table Tilting Range:
-
0-45°
Quick Details
-
type:
-
Bench Drilling Machine
-
Max. Drilling Dia. (mm):
-
20
-
Range of Spindle Speed(r.p.m):
-
180 - 3200 r.p.m
-
Drilling Speed:
-
12/16 Speed
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HYD
-
Model Number:
-
DP161501
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
885*485*277 mm
-
Power (kW):
-
650W/550W
-
Weight (KG):
-
54 KG
-
Product name:
-
Vertical Drilling Machine
-
Name:
-
Vertical Automatic Drilling Machine
-
Swing:
-
390 mm
-
Taper:
-
MT2
-
Spindle travel:
-
80 mm
-
Table size:
-
290*290 mm
-
Base size:
-
425*255 mm
-
Overall Height:
-
1065 mm
-
Table Tilting Range:
-
0-45°
Products Description
|
MODEL
|
DP161501
|
|
MOTOR
|
550W/650W
|
|
Swing
|
390mm
|
|
Max.Drilling capacity
|
20mm
|
|
Taper
|
MT2
|
|
Spindle travel
|
80mm
|
|
Spindle Speed
|
12/16speed
|
|
Speed range 50HZ
|
180-2740/200-2500rpm
|
|
Speed range 60HZ
|
250-3100/240-3200rpm
|
|
Table Size
|
￠290mm/290x290
|
|
Base size
|
425X255mm
|
|
Column Diameter
|
￠70mm
|
|
Max.distance from spindle end to surface of table( mm )
|
435mm
|
|
Max.distance from spindle end to surface of base(mm)
|
685mm
|
|
Table Tilting Range
|
0-45°
|
|
Overall Height
|
1065mm
|
|
NW./GW.
|
50/54
|
|
Carton size
|
885x485x277
|
