Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOIERN
-
Dimension(L*W*H):
-
(135+37)*94*(58+38)CM
-
Weight (KG):
-
150 KG
-
Product name:
-

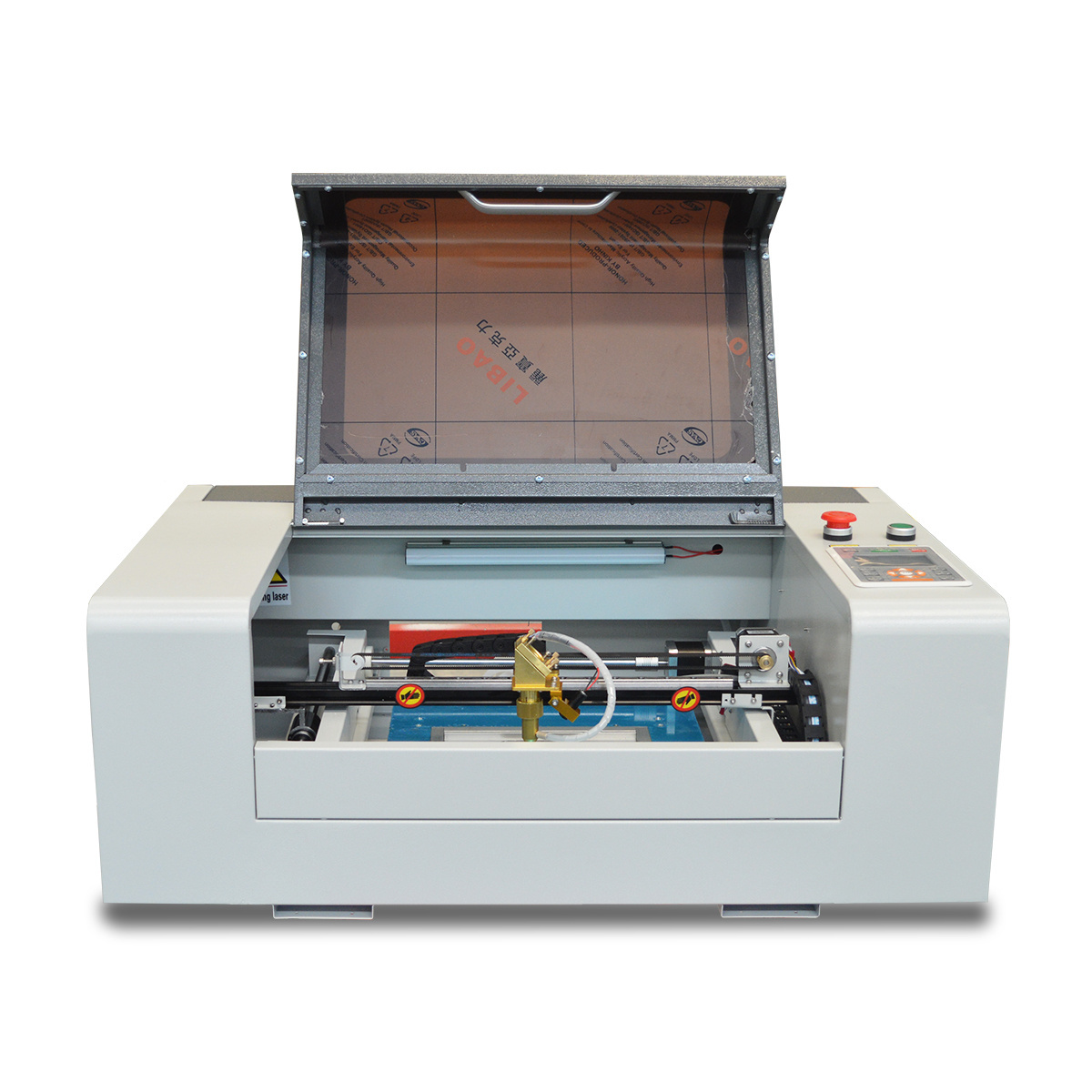

C02 Laser Engraving Cutting Machine
-
Keywords:
-
9060 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Power supply:
-
AC220V/110V 50HZ
-
Optional parts:
-
Water Chiller and Rotary
-
Certification:
-
ce
-
After-sales Service Provided:
-
Online support
Quick Details
-
Engraving Area:
-
300mm*200mm-1500*3000mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
1-1000mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
VOIERN
-
Dimension(L*W*H):
-
(135+37)*94*(58+38)CM
-
Weight (KG):
-
150 KG
-
Product name:
-
C02 Laser Engraving Cutting Machine
-
Keywords:
-
9060 Laser Engraving Cutting Machine
-
Function:
-
Cutting Engraving Non-metal Materials
-
Power supply:
-
AC220V/110V 50HZ
-
Optional parts:
-
Water Chiller and Rotary
-
Certification:
-
ce
-
After-sales Service Provided:
-
Online support
Product Description
We are the factory Who has been in the laser engraving machine, laser cutting machine and laser marketing machine field for 15 years.We have laser products of various working areas and models.Our laser engraving and cutting machine's work area include 300x200mm to
1500x3000mm,fiber laser marking machine's include 50*50mm to 800*800mm.If you need other machines or have any questions, please
contact us .
1500x3000mm,fiber laser marking machine's include 50*50mm to 800*800mm.If you need other machines or have any questions, please
contact us .
|
Water chiller
|
|
|
Blade work platform
|
|
|
Chuck
|
Detailed Images
The main parts of our products are high-quality industrial-grade accessories.
1. Laser Head
-- Laser head can stop focus lens from polluting.
-- Laser head will make effect of engraving and cutting better.
2.Sealed-off Glass CO2 Laser Tube
-- Longer service life.
-- More steady.
-- Higher efficiency.
-- High precision.
-- Small facula.
3. Electric Up-down Work Table .
-- Work table can be Up and Down freely to put higher objects in this machine.
4. Stepper Motor
-- Leadshine brand.
-- High torque.
-- Low heat.
-- Low running noise.
-- Stable operation .
5. X-Y Plotter
-- Taiwan HIWIN brand.
-- Linear square guideway.
-- High speed and high precision.
-- Long service life.
-- Linear square guideway.
-- High speed and high precision.
-- Long service life.
6. Control Panel and Mainboard
-- RuiDa brand. It's famous and popular.
-- It has their own system for engraving and cutting. Don't need to install extra work software.
-- It has multi-language function.
-- It has an ability to choose intelligently a good work path to engrave and cut.
-- It has their own system for engraving and cutting. Don't need to install extra work software.
-- It has multi-language function.
-- It has an ability to choose intelligently a good work path to engrave and cut.
Size Information
Cutting depth of different power and material.Please choose the product according to your needs.
Related Products
Parameter table
|
Cutting Speed
|
1-70mm/s
|
|
Highest Scanning Precision
|
≤1000DPI
|
|
Resolution Ratio
|
<0.01mm
|
|
Location Precision
|
<0.01mm
|
|
Min. Shaping Character Letter
|
1.0 x 1.0mm
|
|
Working Temperature
|
0-45°C
|
|
Working Humidity
|
5-95%
|
|
Power Supply
|
AC220V±10% /50HZ , AC110V±10%//60HZ
|
|
Laser Wave Length
|
10.6um
|
|
Water Cut-off Protection Device
|
Yes
|
|
Work Table
|
Multifunctional work table and honeycomb work table
|
|
Electric Up/down Working Table
|
Yes
|
|
Range of Electric Up-down (Z)
|
0-300mm
|
|
Motor
|
42 Stepper Motor
|
|
Digital Subdivision Stepper Drive
|
System Supported
|
|
DSP
Interface |
USB 2.0
|
|
Auxiliary Device
|
Exhaust Fan, Exhaust Pipe,Water Pump,Air Pump,User Manual
|
|
Optional Accessories
|
Simple rotation, standard chuck, chiller,auto focus system,Water Protection,CCD camera,Blade work platform
|
Packing&Shipping
We serve the whole process from production to transportation.
Company Introduction
Voiern Laser Technology is located in Liaocheng High-tech Industrial Development Zone. Our company is mainly committed to research, development and production of laser engraving, cutting and marking machines in many fields. Covering R&D, production,sales, and customization of various high-end laser equipment.The products are mainly used in scientific research teaching andelectronic materials, LEDs, advertising materials, medical supplies, handicrafts, textiles,clothing, footwear, auto parts,furniture, and other industrial fields.
Our Services & Strength
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept .
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
