Quick Details
-
Diameter:
-
300/400mm
-
Color:
-
Red Yellow Green
-
Power supply:
-
187 V to 253 V, 50Hz
-
The service life of light source:
-
> 50000 hours
-
Temperature of the environment:
-
-40 to +70 DEG C
-
Relative humidity:
-
not more than 95%
-
Reliability:
-
MTBF≥10000 hours
-
Maintainability:
-
MTTR≤0.5 hours
-
Protection grade:
-
IP54
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
TX
-
Product name:
-
Traffic Signal Light
-
Diameter:
-
300/400mm
-
Color:
-
Red Yellow Green
-
Power supply:
-
187 V to 253 V, 50Hz
-
The service life of light source:
-
> 50000 hours
-
Temperature of the environment:
-
-40 to +70 DEG C
-
Relative humidity:
-
not more than 95%
-
Reliability:
-
MTBF≥10000 hours
-
Maintainability:
-
MTTR≤0.5 hours
-
Protection grade:
-
IP54
Product category
Traffic Description
Factory Supplier traffic light pole led best price
Product details
| Diameter | 300/400mm |
| Product name | Traffic Warning Light |
| Color | Red Yellow Green |
| Power supply | 187 V to 253 V, 50Hz |
| The service life of light source | > 50000 hours |
| Temperature of the environment | -40 to +70 DEG C |
| Relative humidity | not more than 95% |
| Reliability | MTBF≥10000 hours |
| Maintainability | MTTR≤0.5 hours |
| Protection grade | IP54 |

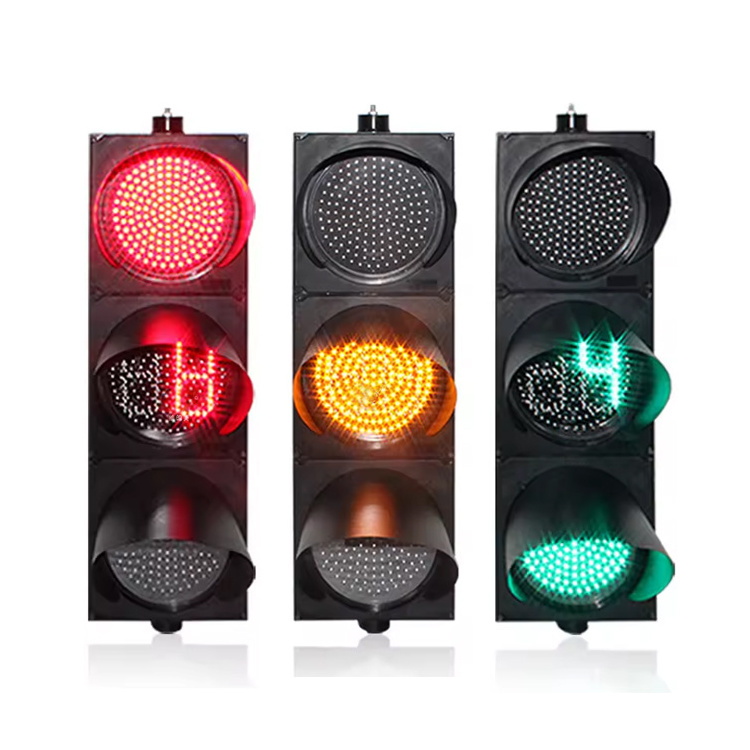

The light source adopts imported high brightness LED. The lamp body uses disposable aluminum die-casting or engineering plastics (PC) injection molding, lamp panel light-emitting surface diameter of 100mm,200mm,300mm,400mm. The lamp body can be any combination of horizontal and vertical installation and. The light emitting unit monochrome. The technical parameters are in line with the GB14887-2003 standard of the people's Republic of China road traffic signal lamp
Red Full Screen: 120 LEDs, Single Light Degree: 3500 ~ 5000 MCD, Left Right Upper and Lower Angles: 30 °, Power: ≤ 10W
Yellow Full Screen: 120 LEDs, Single Light Degree: 4500~ 6000 MCD, Left Right Upper and Lower Angles: 30 °, Power: ≤ 10W
Green Full Screen: 120 LEDs, Single Light Degree: 3500 ~ 5000 MCD, Left Right Upper and Lower Angles: 30 °, Power: ≤ 10W
Light set size(mm): Plastic shell: 1130 * 400 * 140
Aluminium shell: 1130 * 400 * 125
