Quick Details
-
Dimension(L*W*H):
-
7100*2750*3300 mm
-
Power:
-
85 kw
-
Product name:
-
concrete mixer truck
-
Drum Capacity:
-
6.8m3
-
Mixing Capacity:
-
4.0 m ³
-
Concrete Output:
-
4.0m³/ batch ,20.0m2/h
-
Drum Rotating Speed:
-
18 rpm
-
Drum Rotating Angle:
-
270°
-
Loading Bucket Capacity:
-
0.7 m ³
-
Loading Times to Full Drum:
-
6 times
-
Water Tank Volume:
-
2*380 L
-
Gradeability:
-
45°
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SAAO
-
Weight:
-
9500 kg
-
Dimension(L*W*H):
-
7100*2750*3300 mm
-
Power:
-
85 kw
-
Product name:
-
concrete mixer truck
-
Drum Capacity:
-
6.8m3
-
Mixing Capacity:
-
4.0 m ³
-
Concrete Output:
-
4.0m³/ batch ,20.0m2/h
-
Drum Rotating Speed:
-
18 rpm
-
Drum Rotating Angle:
-
270°
-
Loading Bucket Capacity:
-
0.7 m ³
-
Loading Times to Full Drum:
-
6 times
-
Water Tank Volume:
-
2*380 L
-
Gradeability:
-
45°
Products Description
Contact us now to get a $300 discount

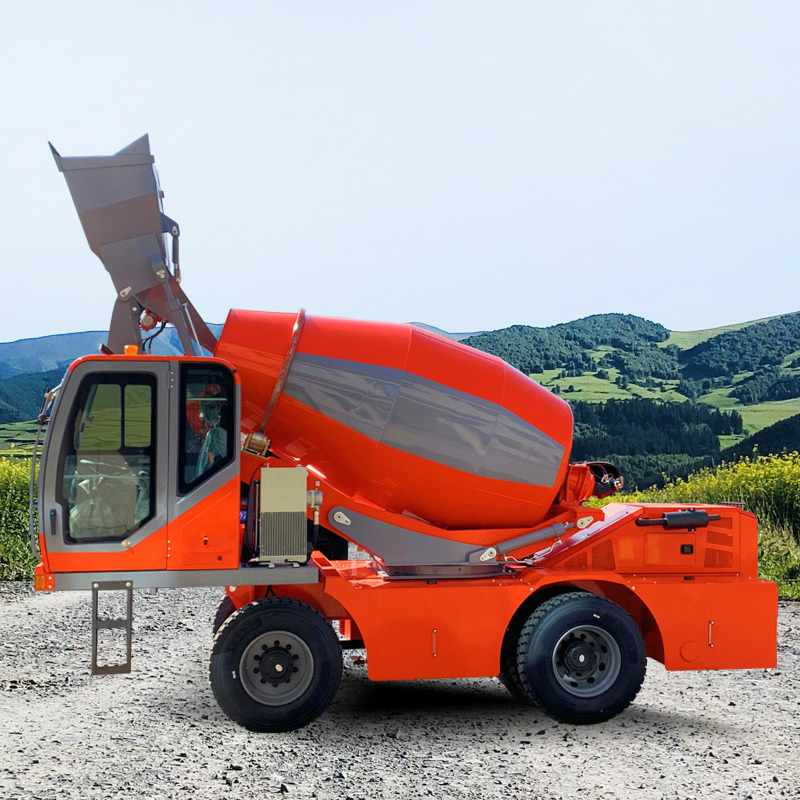

Loading Mixer Truck - Efficient Feeding, Perfect Mixing
A
small concrete loading mixer truck
is an ideal choice designed for small construction projects. Whether you're doing road rehabilitation, house construction or other small-scale projects, our mixer trucks provide efficient and reliable concrete mixing and transportation.
Why choose our loading mixer trucks?
Flexibility and mobility:
our
loading mixer
trucks
are compact and adaptable, which can easily enter and exit narrow construction sites and roads, and flexibly cope with a variety of construction environments, saving you time and labor costs.
Easy to operate:
our
loading mixer trucks
are designed to be user-friendly and easy to operate, even for inexperienced operators. Equipped with an intuitive control system, it ensures that you can easily master every step of the process.
Cost saving:
The use of
loading mixer trucks
can reduce labor and time costs, improve work efficiency, and reduce material waste. Our loading mixer trucks can help you realize your cost-saving goals.
What you get when you choose one of our loading mixer trucks
When you choose one of our loading and
mixing trucks
, you get an efficient and reliable loading and mixing solution.
We are committed to providing the best support for your construction projects and helping you to complete them successfully.
Our loading mixers come with a
CE certificate
and a
two-year warranty
, and
we'll provide you with a variety of video guides throughout the process.
Product Details
|
Model
|
SZJ35A
|
SZJ35B
|
SZJ40A
|
SZJ40B
|
|
Drum Capacity
|
5.5m3
|
5.5m3
|
6.8m3
|
6.8m3
|
|
Mixing Capacity
|
3.5m3
|
3.5m
|
4.0 m ³
|
4.0m3
|
|
Concrete Output
|
3.5m3/batch 17.5m2/h
|
3.5 m ³/ batch 17.5m3/h
|
4.0 m ³/ batch 20.0m2/h
|
4.0m³/ batch ,20.0m2/h
|
|
Drum Rotating Speed
|
18 rpm
|
18 rpm
|
18 rpm
|
18 rpm
|
|
Drum Rotating Angle
|
270°
|
270°
|
270°
|
270°
|
|
Loading Bucket Capacity
|
0.65m3
|
0.6 m ³
|
0.6 m ³
|
0.7m3
|
|
Loading Times to Full Drum
|
6 times
|
6 times
|
7 times
|
6 times
|
|
Water Tank Volume
|
1*800 L
|
1*800 L
|
1*800 L
|
2*380 L
|
|
Max . Water Suction Volume
|
33,000 L / Hour
|
33,000 L / Hour
|
33,000 L / Hour
|
33,000 L / Hour
|
|
Engine Power
|
85 KW (115 HP )
|
85 KW (115 HP )
|
91 KW (123 HP )
|
91 KW (123 HP )
|
|
Wheel Drive
|
4x4
|
4x4
|
4x4
|
4x4
|
|
Travel Speed
|
0 to 40 km / h
|
0 to 40 km / h
|
0 to 40 km / h
|
0 to 50 km / h
|
|
Gradeability
|
40°
|
40°
|
40°
|
45°
|
|
Operating Weight
|
8,100 kg
|
8,500 kg
|
8,800 kg
|
9,500 kg
|
