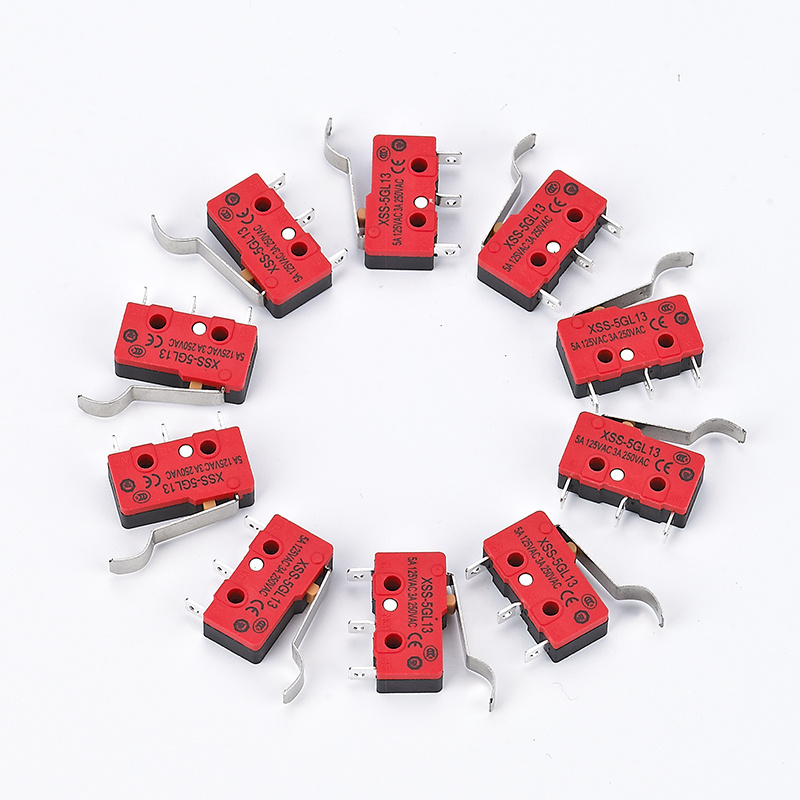

snap action mini micro switch with lever arm

snap action mini micro switch with lever arm

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: XURUI or OEM

Model Number:: XSS-5GL-13

Max. Current:: 3A/5A

Operating Temperature:: -25 ~+80℃

Protection Level:: IP40

Certification:: CCC CE TUV Rohs, CCC CE TUV ROHS

Operating speed:: 0.1mm-1m/s

Electrical life:: 100,000 times above

Mechanical life:: 1,000,000 times above

Type:: Lever type

Load rating:: 5A/125V;3A/250V

Protection degree:: IP40

Operating temperature:: -25~80℃

Operating humidity:: <85%

Origin:: Zhejiang,China

Quick Details

Whether the smart:: NO

Max. Voltage:: 125/250VAC

Place of Origin:: Zhejiang, China

Brand Name:: XURUI or OEM

Model Number:: XSS-5GL-13

Max. Current:: 3A/5A

Operating Temperature:: -25 ~+80℃

Protection Level:: IP40

Certification:: CCC CE TUV Rohs, CCC CE TUV ROHS

Operating speed:: 0.1mm-1m/s

Electrical life:: 100,000 times above

Mechanical life:: 1,000,000 times above

Type:: Lever type

Load rating:: 5A/125V;3A/250V

Protection degree:: IP40

Operating temperature:: -25~80℃

Operating humidity:: <85%

Origin:: Zhejiang,China

Product Description

1.Adopt thermosetting plastic or thermplastic

2.Small contact gap,snap action,high sensitivity and samll operating travel

3.Varitey of levers

4.Widely used in appliance,electronic equipment,automatic machine,communication equipment,car electric,apparatus and instrument,electro motion tool etc.

Specification

Item		Data
Rating load		5A/125VAC,3A/250VAC
Operating speed		0.1mm-1m/s
Operating frequency	Mechanical	400times/min
	Electrical	30times/min
Insulation resistance		100MΩ(Above)DC500V
Contact resistance		30MΩ(initial value)
Withstand voltage	Non-connection wire	1000VAC
	Every terminal	1500VAC
Vibration	Misoperation	10-55Hz Amplitude 1.5mm
Impact	Durable	1000m/s ²
	Misoperation	300m/s ²
Life	Electrical	100,000above
	Mechanical	1,000,000above
Protection degree		IP40
Operating temperature		-25~+80℃
Operating humidity		<85%
